Half-round rear tipper

Best-selling model with half-round body for universal use in construction and transport. Volume 6-30 m³.

Variant

Select the number of chassis axles

The page will adapt — showing specifications, photos and technical data sheets for the selected variant.

S1G

Half-round rear tipper

A rear-tipping half-round body with a fully tapered design: the entire cross-section gradually widens from front to rear, helping material discharge more easily and evenly. This design is included as standard at no extra charge.

Volume 6-30 m³
Built for daily work
Tailored

Product description

The fully tapered S1G body (product code PSM436) makes it easier to discharge loose and sticky materials. Its widening cross-section reduces material retention and supports even rear discharge.

The body is manufactured using robotic welding. We adapt the body and subframe to the specific chassis in cooperation with vehicle manufacturers. Ground-operated or electric sheeting and further accessories can be selected to suit the operation.

Fully tapered body as standard

VS-MONT is the first and only manufacturer in the half-round tipper body segment to offer a fully tapered body as standard, at no extra charge.

The entire cross-section widens gradually from the front to the tailgate. This helps material release more easily and discharge more evenly, reducing the risk of material sticking and uneven vehicle loading. This more demanding design draws on operating experience and customer feedback.

Fully tapered S1G / S1GT body design
Fully tapered S1G / S1GT body design

Technical parameters

Dimensions

Body volume 6 - 30 m³
Internal length 4 000 - 6 500 mm
Internal width 2 200 – 2 300 mm
Sidewall height 1 000 – 1 700 mm

Construction

Body material HB450 (high-strength wear-resistant steel)
Floor thickness 6 mm 8 mm
Sidewall thickness 5 mm
Front bulkhead thickness 5 mm
Tailgate thickness 6 mm
Tipping direction Rear (one-way)

Hydraulics

Cylinder type HYVA FE or HYVA FC
Cylinder construction Telescopic hydraulic cylinder according to the selected FE / FC version
Subframe Individually designed Optionally reinforced with cross-bracing at the rear
Tipping angle 49° – 51°

Options

Tailgate PENDEL · cable mechanism · double-acting hydraulic
Tarpaulin system Manual / Automatic
Sidewall extensions Optional
Ladders and platforms Optional

Standard equipment

Tool box built into side guard (left side)
Ladder on the side of the body — left side
Spare wheel on the front bulkhead, mechanical/retractable
Rear aluminium mudguards, fitted over two axles
Mudflaps
Aluminium side underrun guards
Position light wiring
Wheel chock holders + shovel holder
Tipping limit switch
Rubber stops — replaceable
Rear light cluster guards
Reflective marking according to ECE R104
Body support
Rear discharge lip — fixed, flush with the floor (for asphalt pavers)
Body stabilizer
Mounting at the VS-MONT plant + CoC documents + manual in Slovak

Advantages of the S1G model

Fully tapered body

The cross-section widens continuously towards the rear, making even sticky material easier to discharge.

Standard at no extra charge

The fully tapered S1G design is included in the standard specification.

Robotic welding

Robotic welding supports precise and repeatable fabrication.

Convenient sheeting

Choose a ground-operated or electric sheeting system to match your specification.

Weight of the specific configuration

The reference weight of 3,950 kg applies to a 4-axle chassis with the 6/5 mm material specification. Other configurations have different weights.

Service and original parts

Mobile after-sales service, service centres and available original spare parts help reduce downtime.

Compatible chassis

We install the S1G body on all common truck brands

Downloads

Common documents for all variants.

Design examples

S1G installations on different chassis and axle configurations

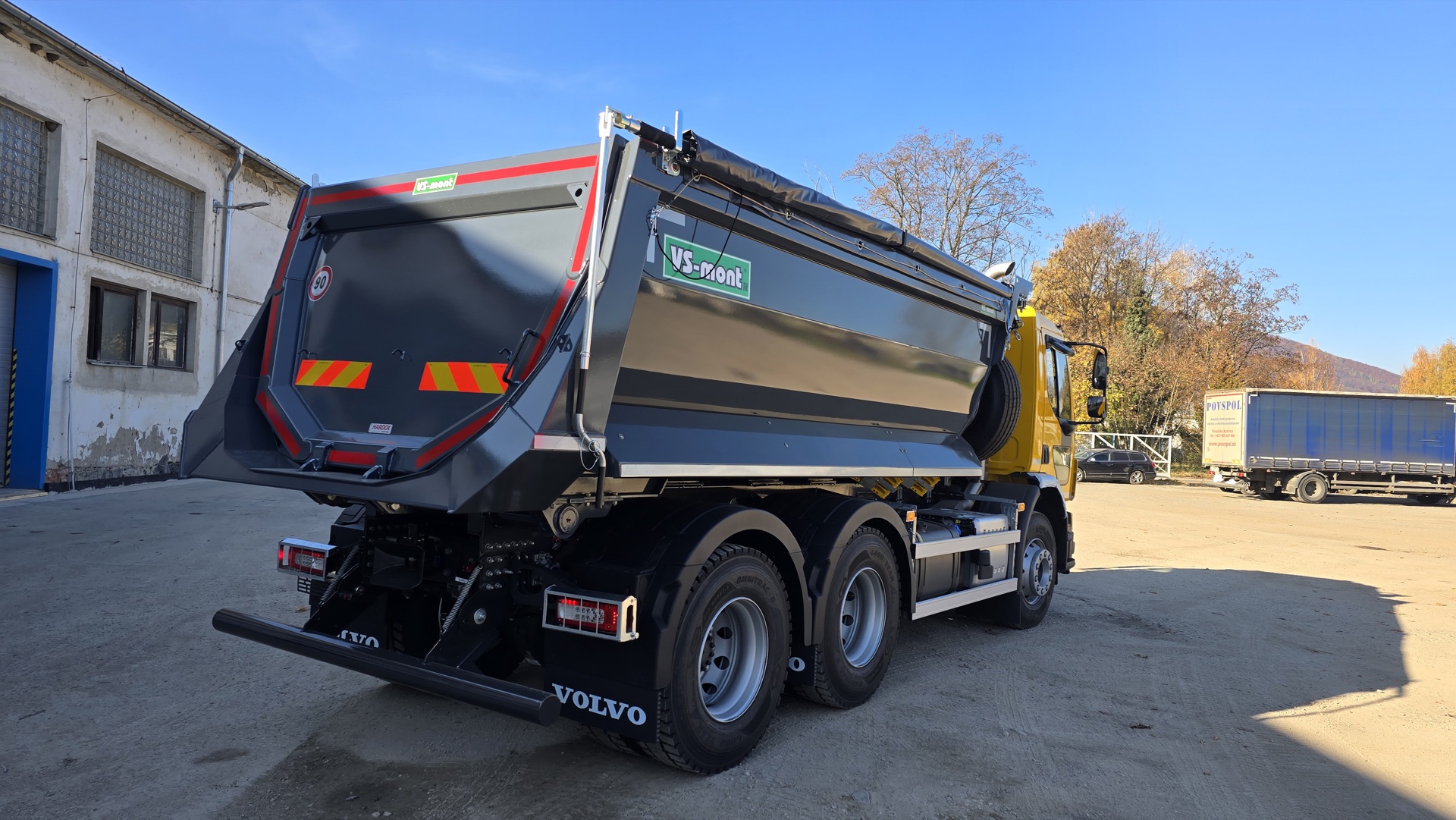

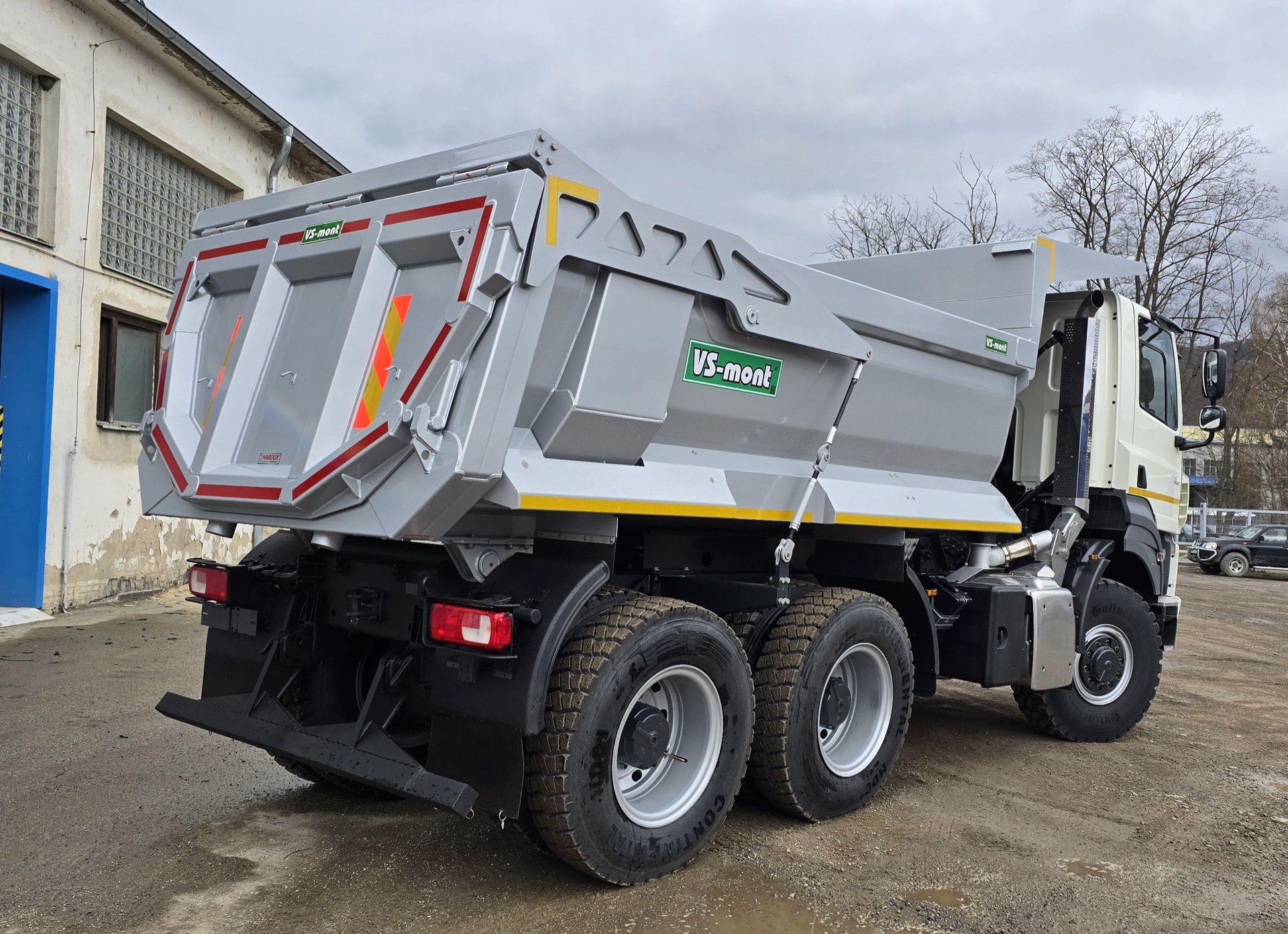

S1G 3-axle body S1G · 3 axles
S1G 3-axle body S1G · 3 axles

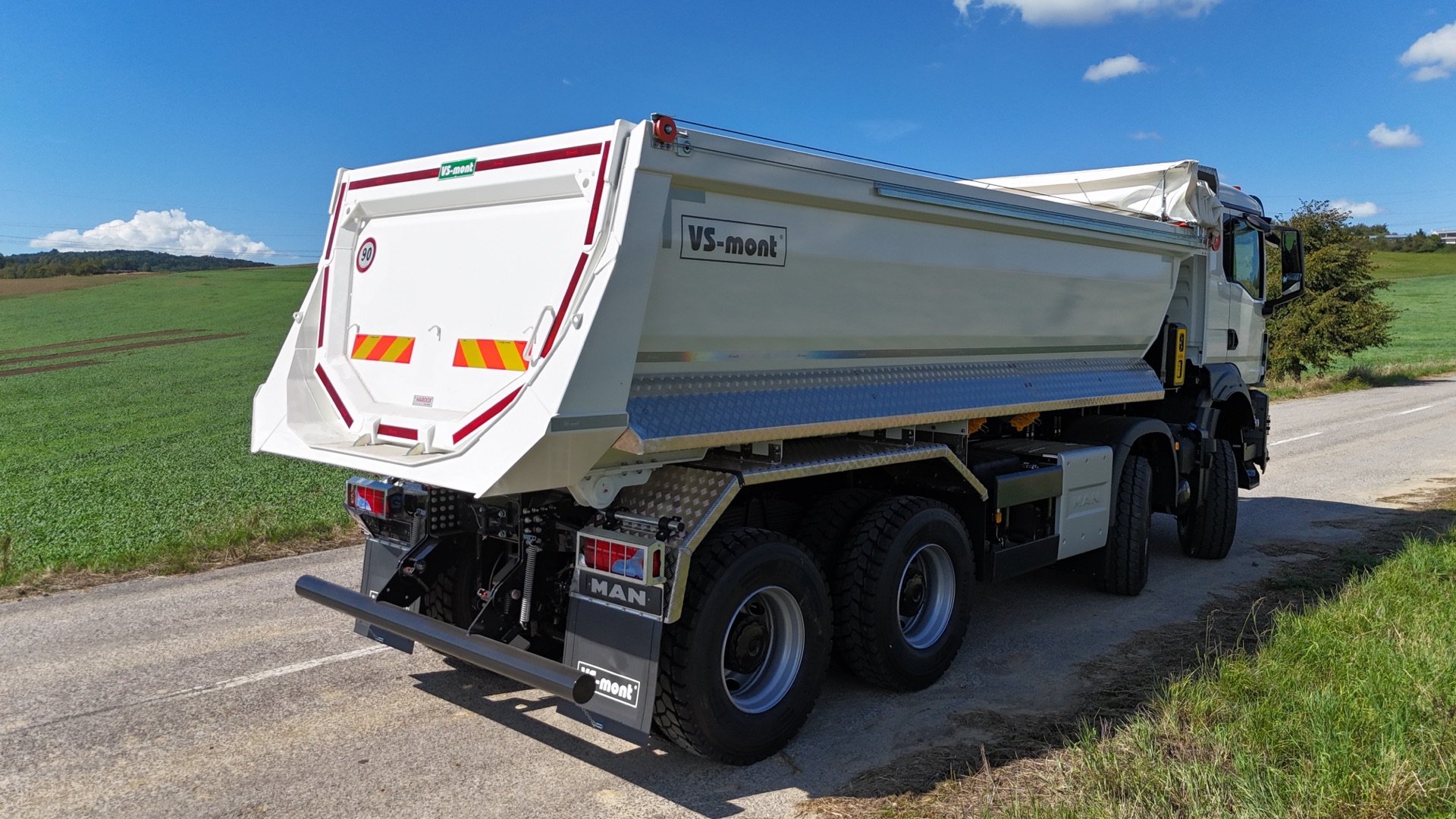

S1G 4-axle — drone view S1G · 4 axles (drone)

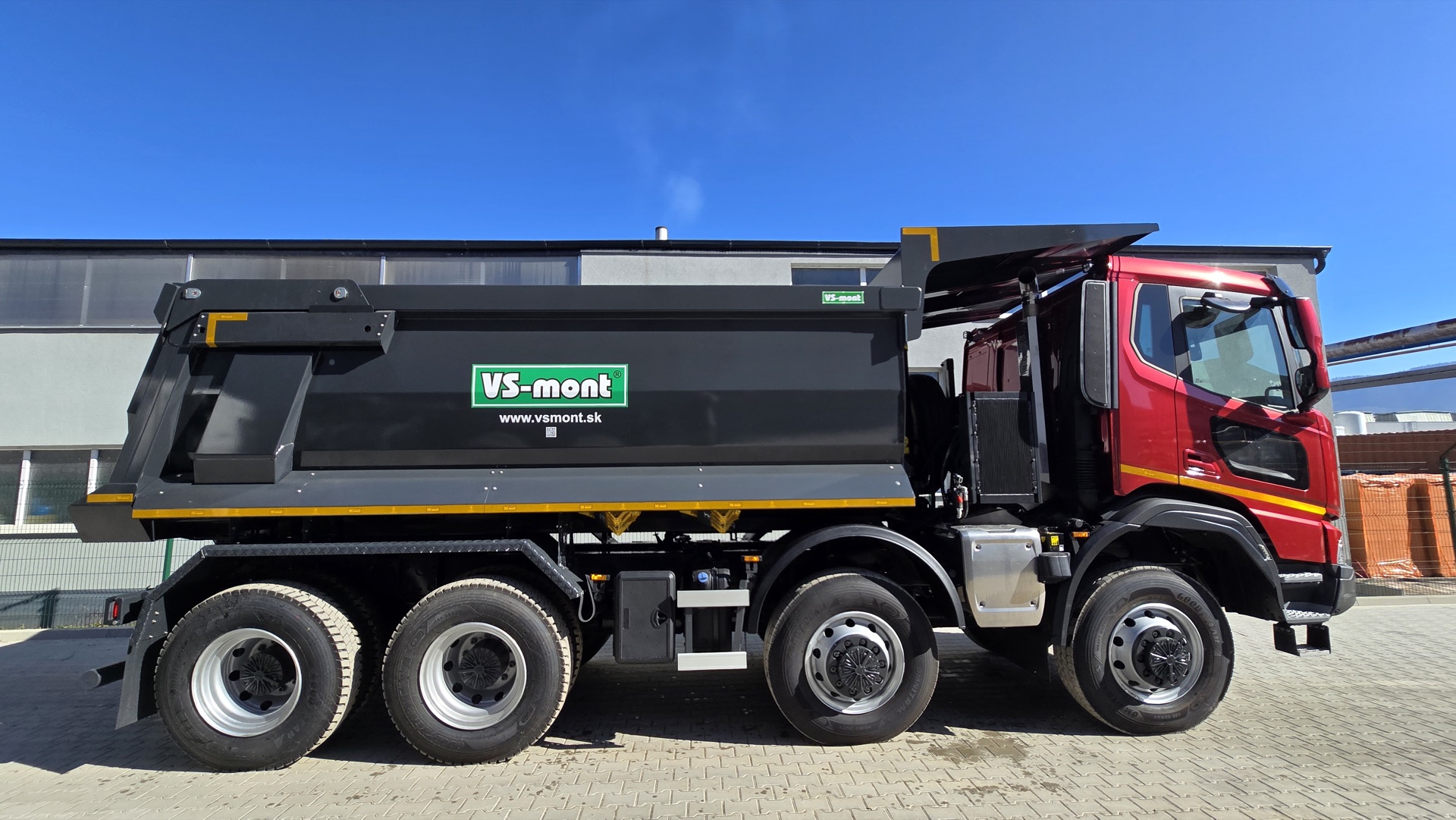

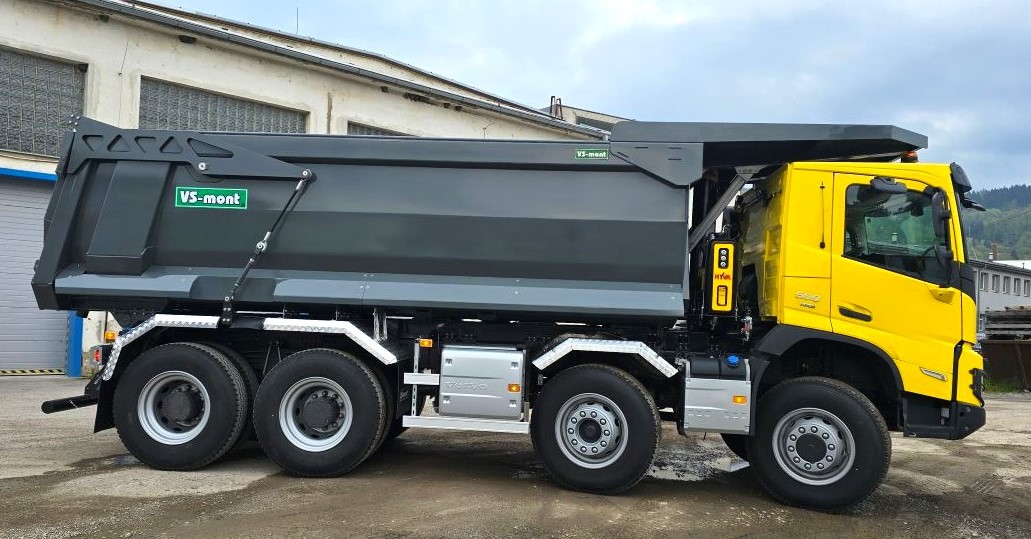

S1G 4-axle body S1G · 4 axles
S1G 4-axle body S1G · 4 axles

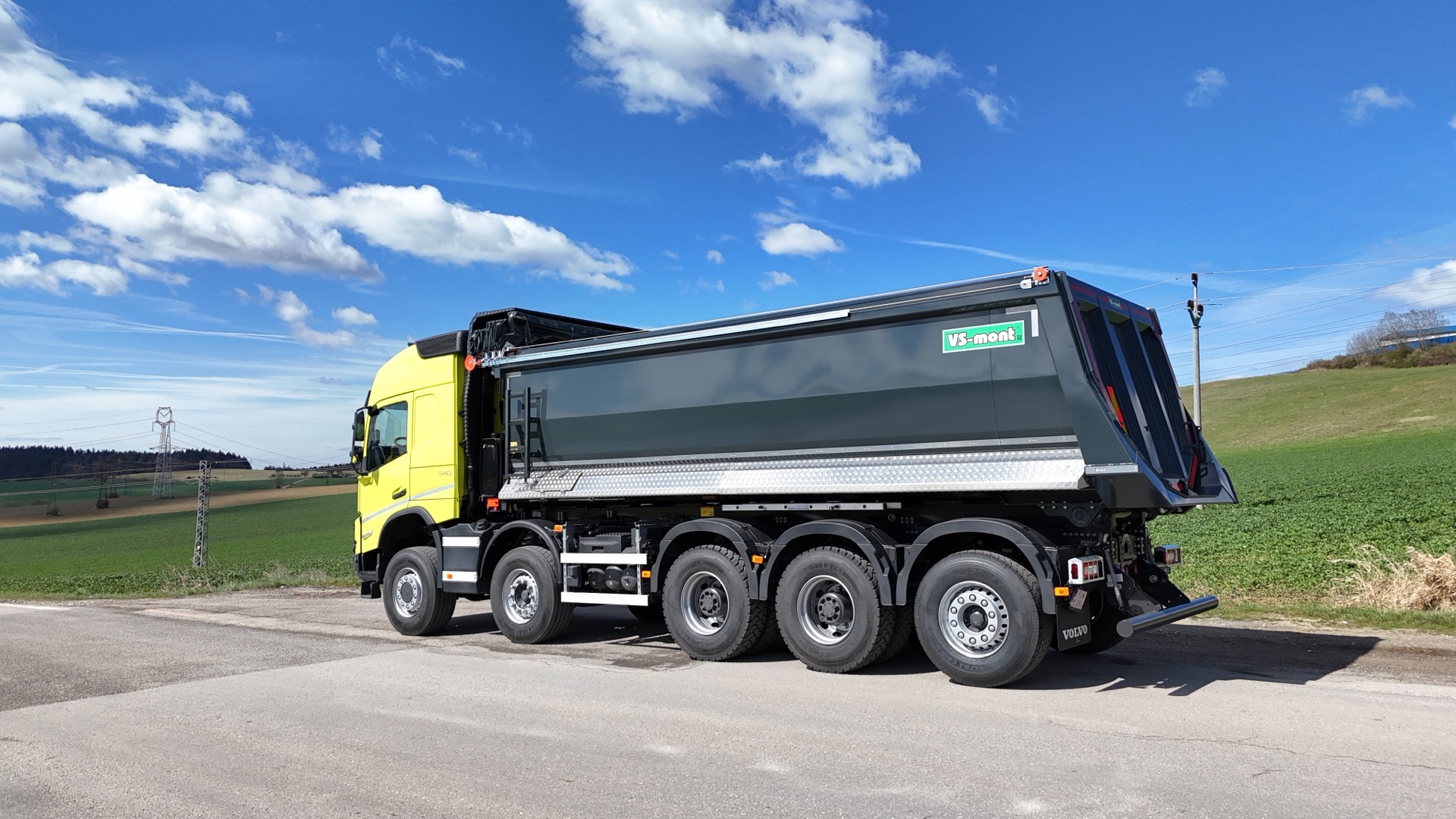

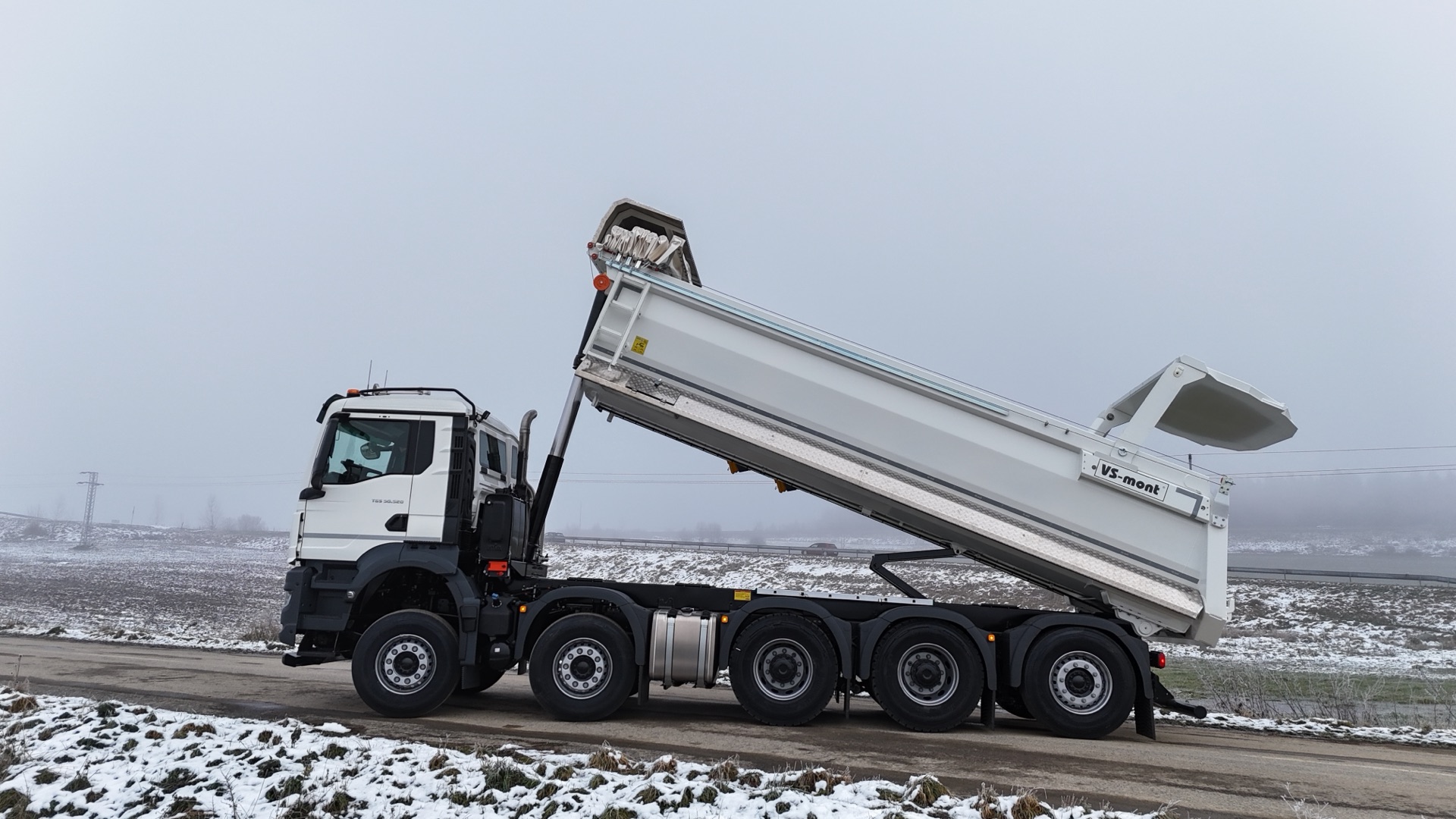

S1G 5-axle — drone view S1G · 5 axles (drone)
S1G 5-axle — drone view S1G · 5 axles (drone)

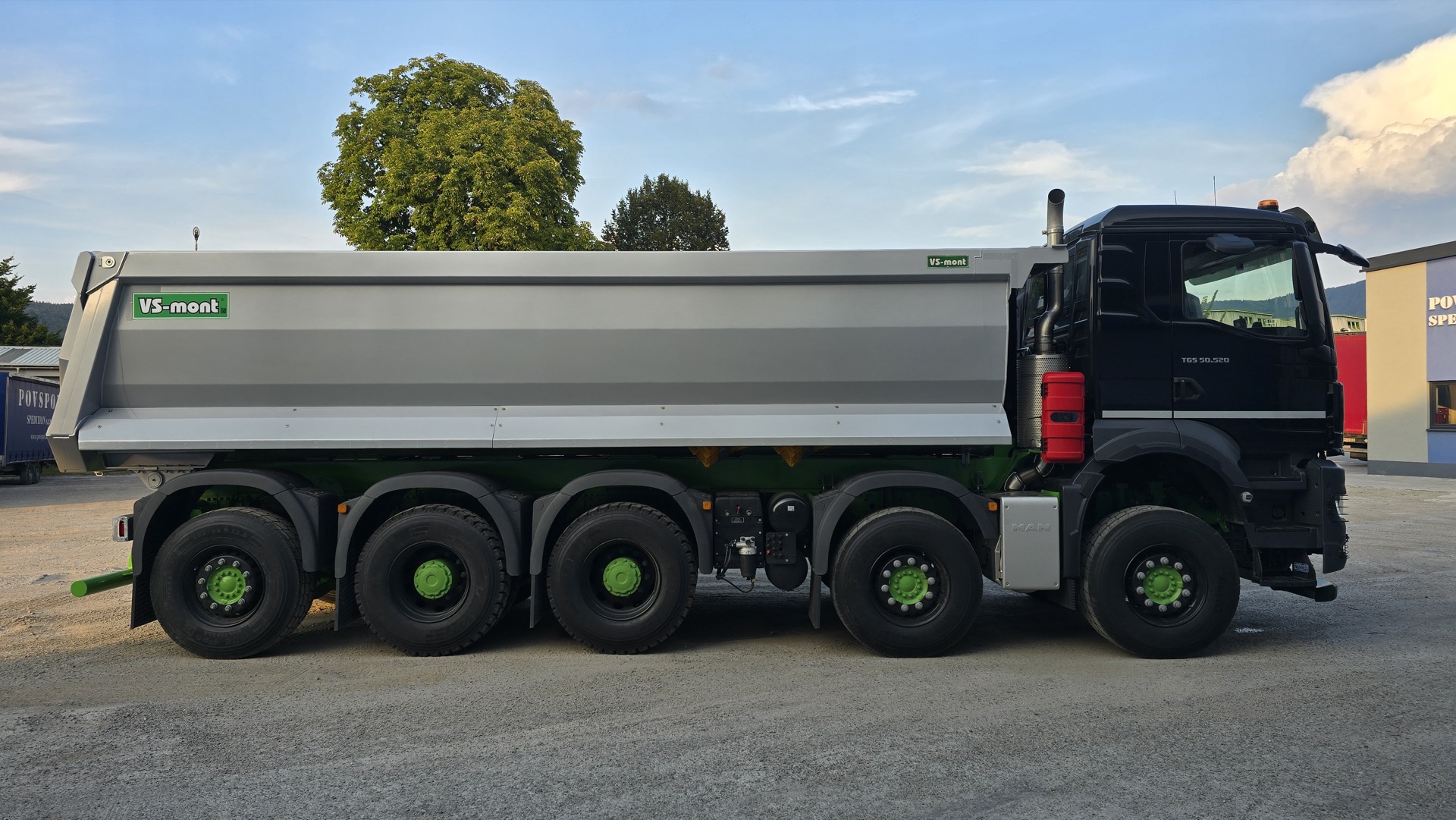

S1G 5-axle body S1G · 5 axles

Accessories & add-ons

Optional features available for all variants (3N, 4N, 5N)

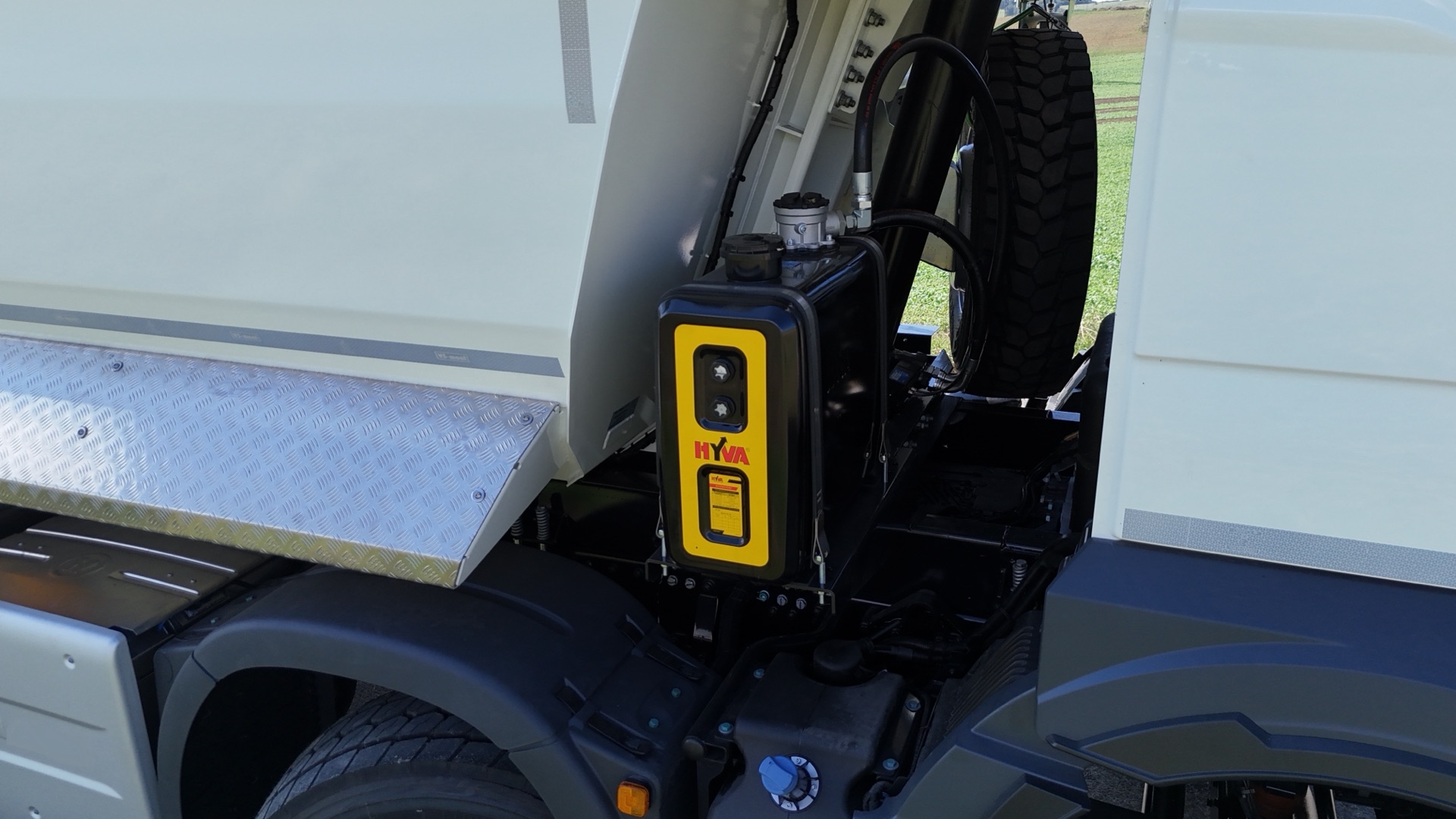

HYVA hydraulics HYVA hydraulics

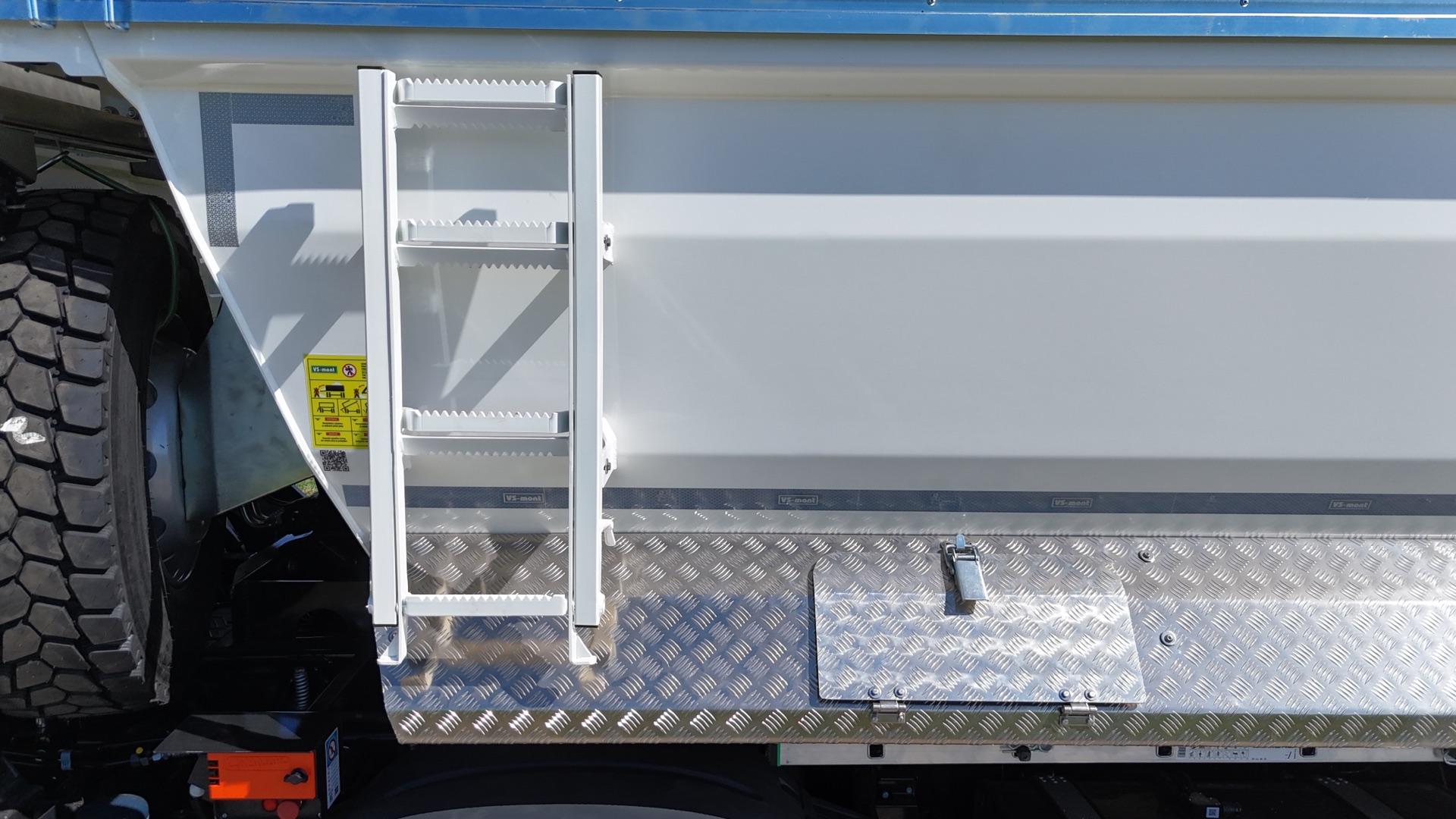

Toolbox integrated into the body side skirts Toolbox integrated into the body side skirts

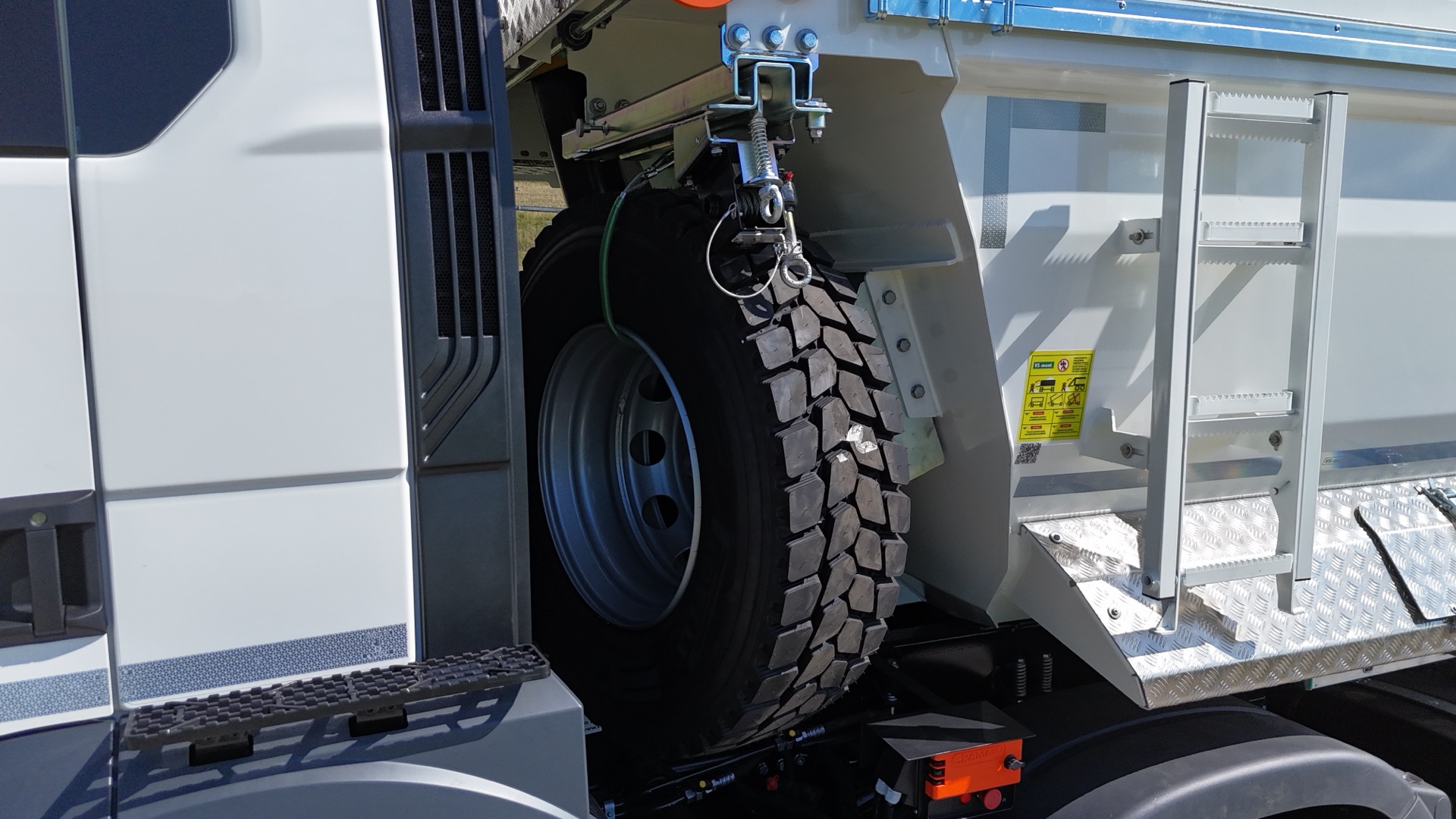

Spare-wheel holder sliding out away from the cab Spare-wheel holder sliding out away from the cab

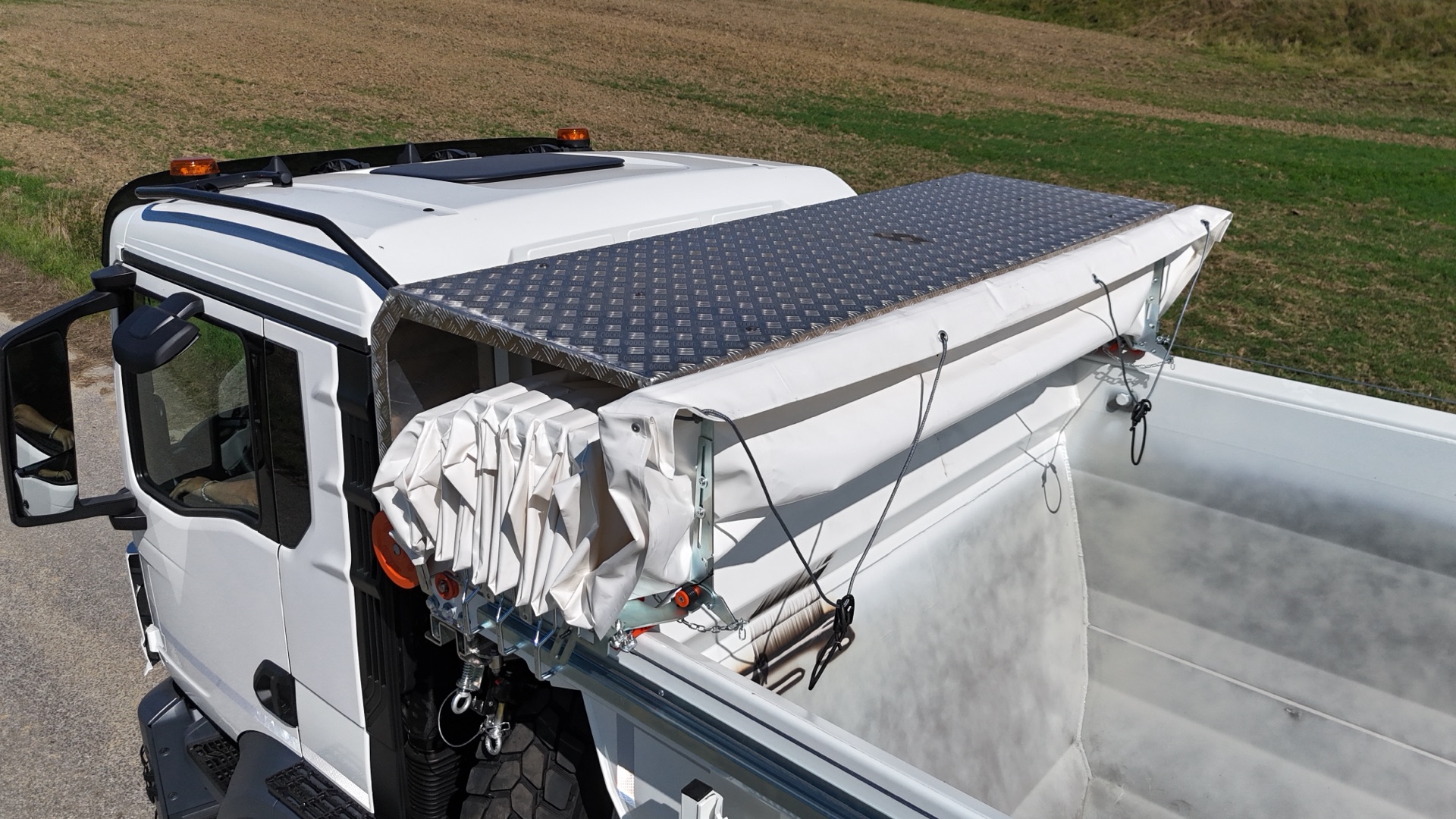

CRAMARO tarpaulin system cover CRAMARO tarpaulin system cover

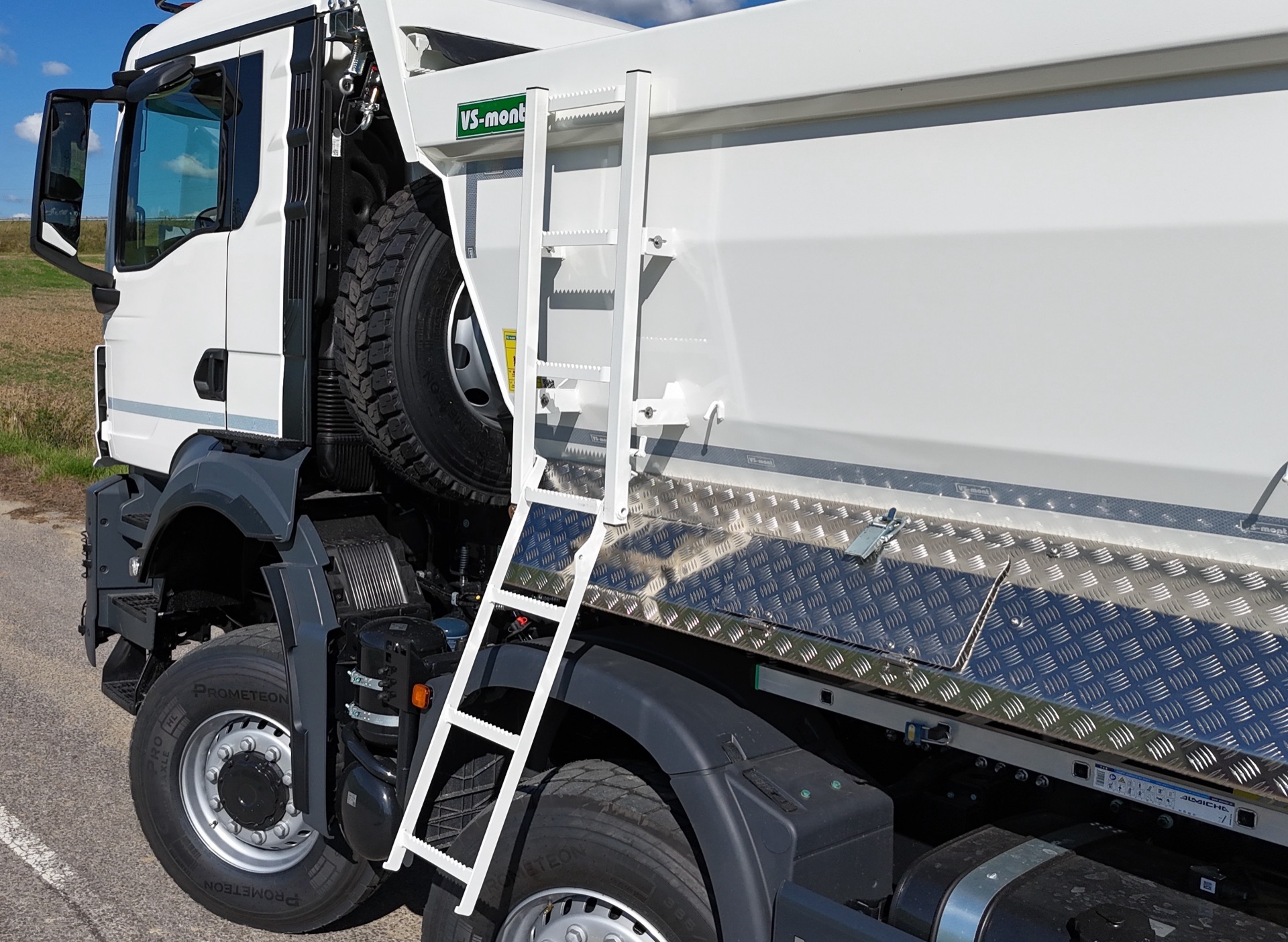

Folding ladder on the sidewall Folding ladder on the sidewall

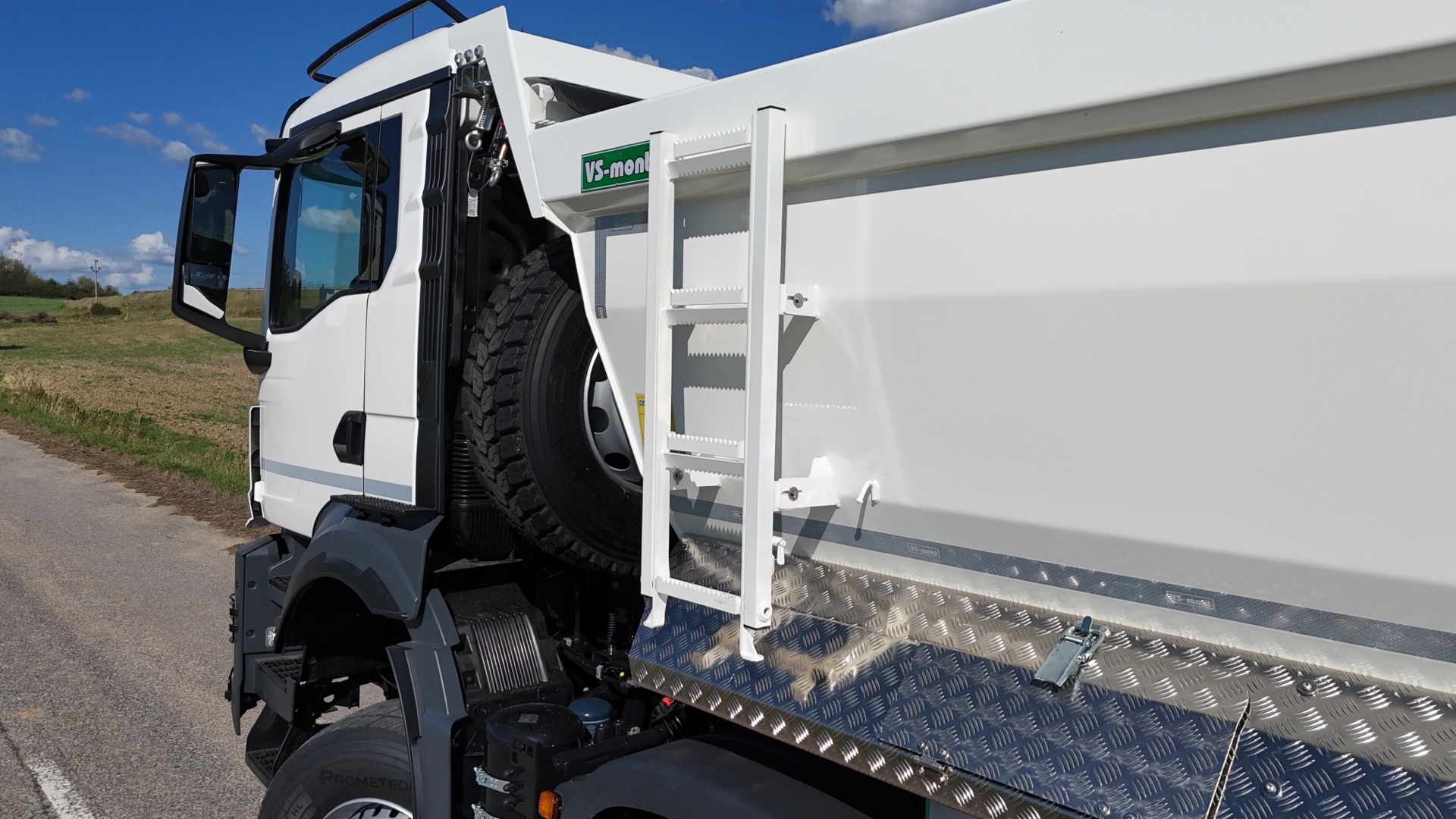

Ladder on the sidewall Ladder on the sidewall

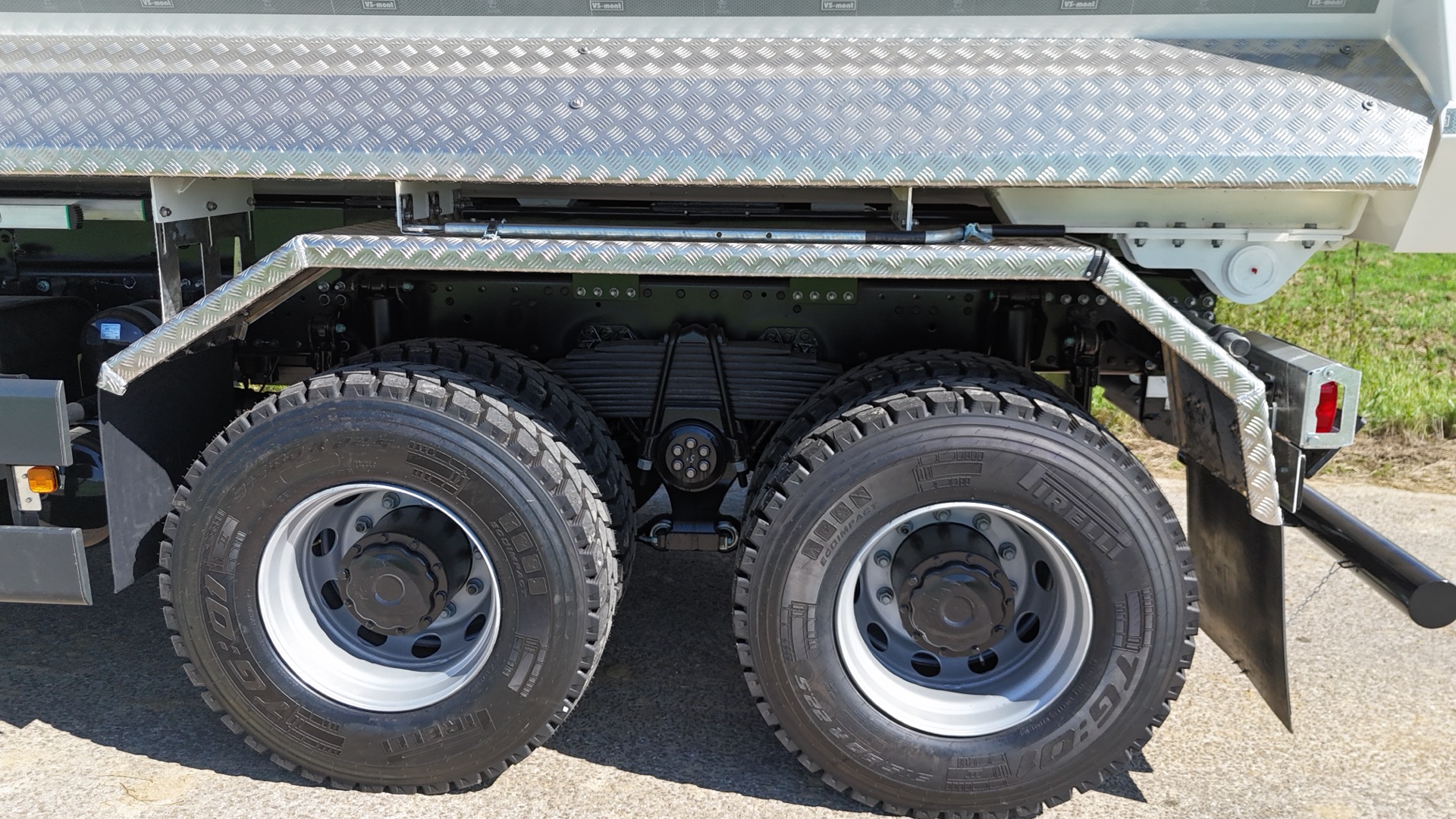

Rear aluminium mudguards Rear aluminium mudguards

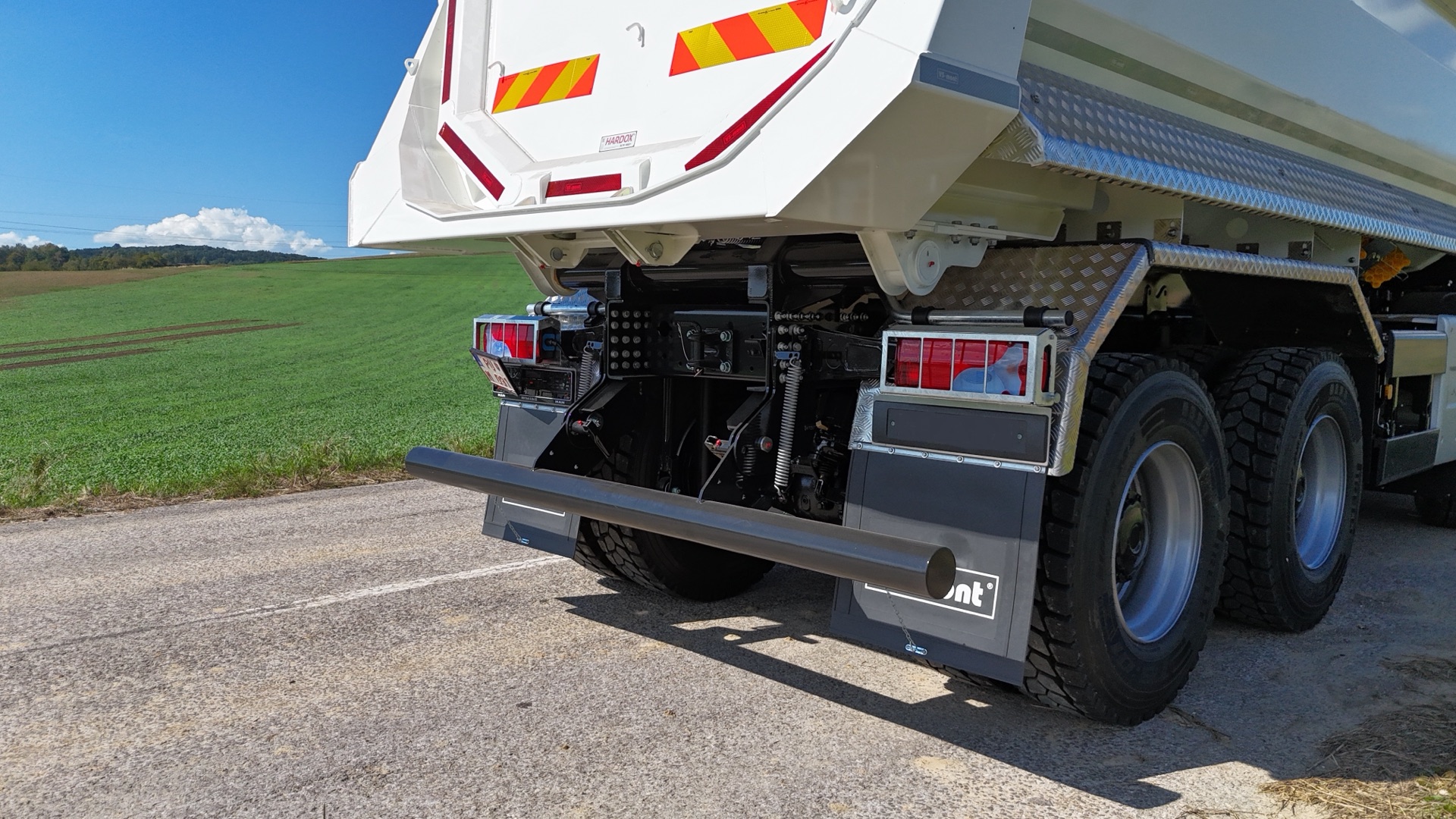

Rear folding and sliding underrun protection approved to UN ECE R58-03 Rear folding and sliding underrun protection approved to UN ECE R58-03

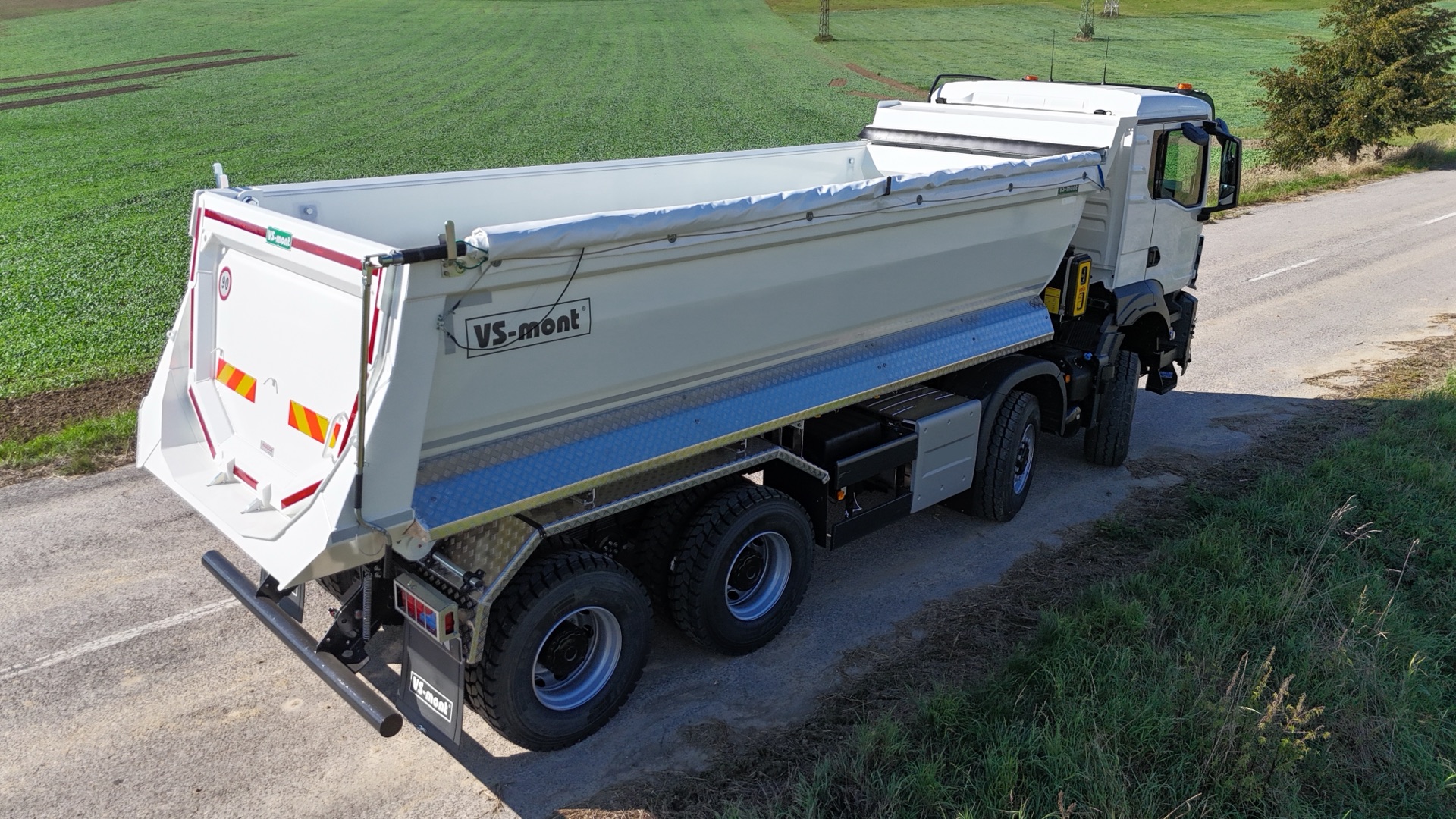

Side tarpaulin system Side tarpaulin system (crank)

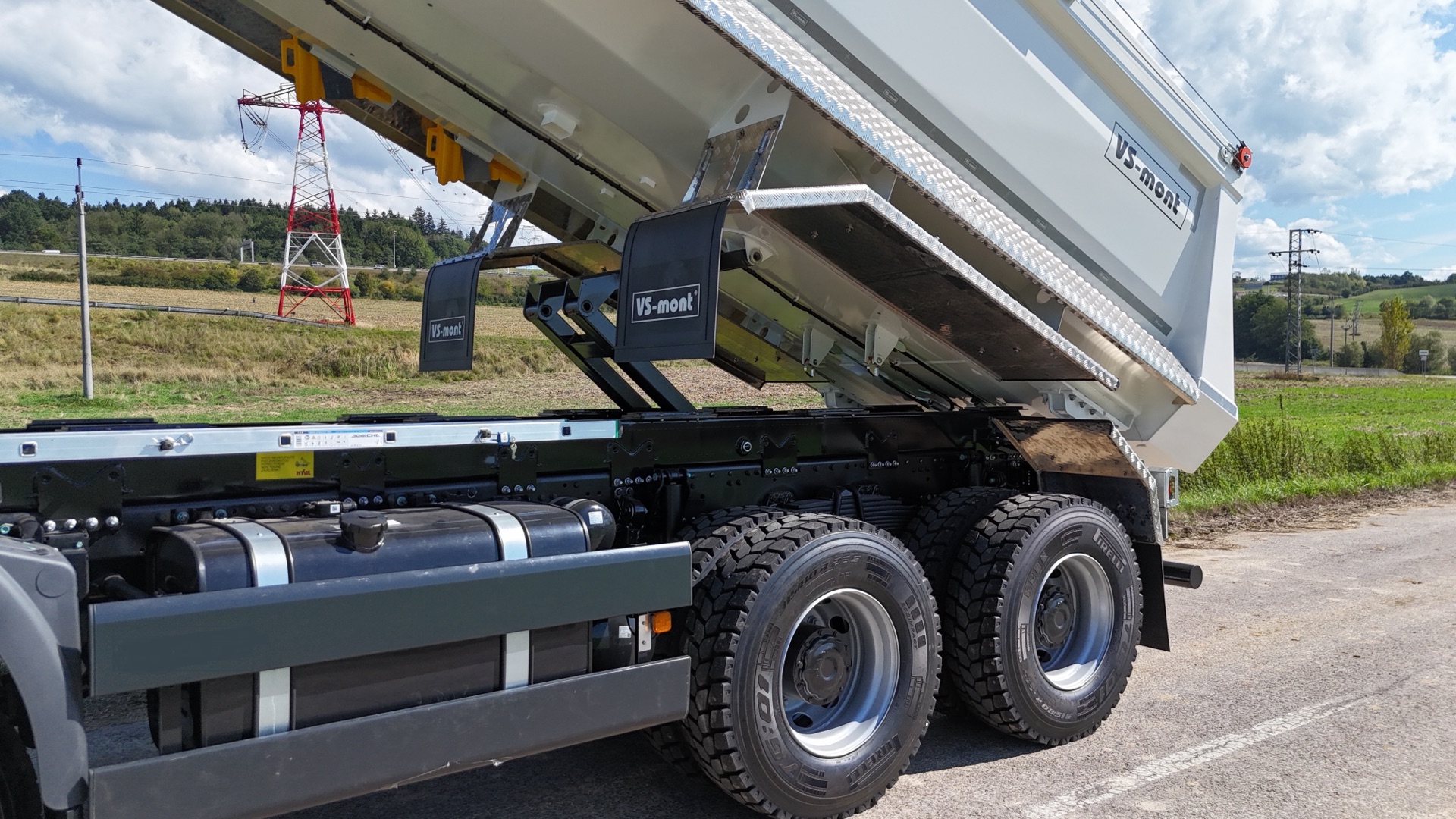

Mudguard flaps Mudguard flaps

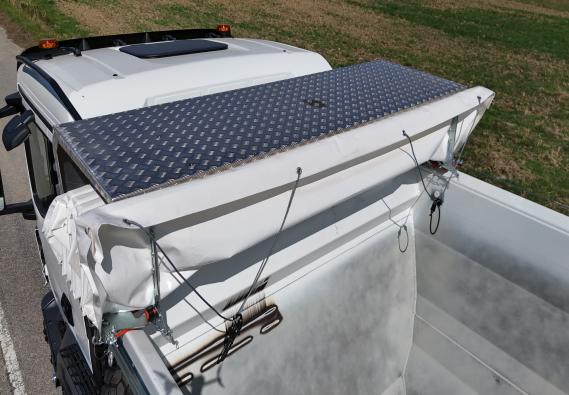

S1G electric sheetingS1G electric sheeting
S1G configurator

Configure your tipper body

Select the number of axles and optional equipment. Once completed, send your enquiry — we will prepare an individual quotation for you.

Category, type and chassis

Body category
Rear-tipping half-round
Body type
S1G — standard

Number of axles

Standard specification and standard equipment

m³Model range: 6 - 30 m³
Tipper body subframe:
Individually designed according to the chassis manufacturer's recommendations and guidelines
Tipper body hydraulic system:
HYVA FE or HYVA FC — controls in the driver’s cab
Sidewall design:
The sidewalls are welded to the front bulkhead — non-opening
Material in standard specification:
  • Floor: HB450 — 6 mm
  • Sidewalls: HB450 — 5 mm
  • Front bulkhead: HB450 — 5 mm
  • Tailgate: HB450 — 6 mm
Tailgate in standard specification:
PENDEL

Standard equipment

  • Tool box built into side guard (left side)
  • Ladder on the side of the body — left side
  • Spare wheel on the front bulkhead, mechanical/retractable
  • Rear aluminium mudguards, fitted over two axles
  • Mudflaps
  • Aluminium side underrun guards
  • Position light wiring
  • Wheel chock holders + shovel holder
  • Tipping limit switch
  • Rubber stops — replaceable
  • Rear light cluster guards
  • Reflective marking according to ECE R104
  • Body support
  • Rear discharge lip — fixed, flush with the floor (for asphalt pavers)
  • Body stabilizer
  • Mounting at the VS-MONT plant + CoC documents + manual in Slovak

Material used on the body selection

We recommend choosing the materials listed in the technical sheets — they are verified for the given load and application.

Tailgate design selection

Click an option with a photo to see an example.

Body paint colour colour chart

Before painting, the frame and all steel parts are blasted with steel grit, then coated with an anti-corrosion primer and a polyurethane top coat in the colour of the customer's choice.

Tarpaulin system selection

Click an option with a photo to see an example.

Tarpaulin colour colour chart

Optional body equipment

Click an option with a photo to see an example.

Standard specification and standard equipment

m³Model range: 6 - 30 m³
Tipper body subframe:
Individually designed according to the chassis manufacturer's recommendations and guidelines
Tipper body hydraulic system:
HYVA FE or HYVA FC — controls in the driver’s cab
Sidewall design:
Firmly welded to the front bulkhead
Material in standard specification:
  • Floor: HB450 — 8 mm
  • Sidewalls: HB450 — 5 mm
  • Front bulkhead: HB450 — 5 mm
  • Tailgate: HB450 — 6 mm
Tailgate in standard specification:
PENDEL

Standard equipment

  • Tool box built into side guard (left side)
  • Spare wheel on the front bulkhead, mechanical/retractable
  • Aluminium side underrun guards
  • Position light wiring
  • Wheel chock holders + shovel holder
  • Tipping limit switch
  • Rubber stops — replaceable
  • Rear light cluster guards
  • Reflective marking according to ECE R104
  • Body support
  • Rear discharge lip — fixed, flush with the floor (for asphalt pavers)
  • Body stabilizer
  • Mounting at the VS-MONT plant + CoC documents + manual in Slovak

Material used on the body selection

We recommend choosing the materials listed in the technical sheets — they are verified for the given load and application.

Tailgate design selection

Click an option with a photo to see an example.

Body paint colour colour chart

Before painting, the frame and all steel parts are blasted with steel grit, then coated with an anti-corrosion primer and a polyurethane top coat in the colour of the customer's choice.

Tarpaulin system selection

Click an option with a photo to see an example.

Tarpaulin colour colour chart

Optional body equipment

Click an option with a photo to see an example.

Standard specification and standard equipment

m³Model range: 6 - 30 m³
Tipper body subframe:
Individually designed
Tipper body hydraulic system:
HYVA FE or HYVA FC — controls in the driver’s cab
Sidewall design:
Firmly welded to the front bulkhead
Material in standard specification:
  • Floor: HB450 — 8 mm
  • Sidewalls: HB450 — 5 mm
  • Front bulkhead: HB450 — 5 mm
  • Tailgate: HB450 — 6 mm
Tailgate in standard specification:
PENDEL

Standard equipment

  • Tool box built into side guard (left side)
  • Spare wheel on the front bulkhead, mechanical/retractable
  • Aluminium side underrun guards
  • Position light wiring
  • Wheel chock holders + shovel holder
  • Tipping limit switch
  • Rubber stops — replaceable
  • Rear light cluster guards
  • Reflective marking according to ECE R104
  • Body support
  • Rear discharge lip — fixed, flush with the floor (for asphalt pavers)
  • Body stabilizer
  • Mounting at the VS-MONT plant + CoC documents + manual in Slovak

Material used on the body selection

We recommend choosing the materials listed in the technical sheets — they are verified for the given load and application.

Tailgate design selection

Click an option with a photo to see an example.

Body paint colour colour chart

Before painting, the frame and all steel parts are blasted with steel grit, then coated with an anti-corrosion primer and a polyurethane top coat in the colour of the customer's choice.

Tarpaulin system selection

Click an option with a photo to see an example.

Tarpaulin colour colour chart

Optional body equipment

Click an option with a photo to see an example.
