S1H rectangular rear tipper
S1H

Rectangular rear tipper

Rectangular version of the rear tipper. Straight sidewalls for optimal discharge of bulky materials. Variants 3N, 4N.

Variant

Select the number of chassis axles

The page will adapt — showing specifications, photos and technical data sheets for the selected variant.

S1H

Rectangular rear tipper

A rectangular rear tipper body for aggregates, soil and other bulk materials. Fixed sidewalls and rear tipping suit daily work on construction sites and in quarries. Equipment is tailored to your application.

Rear tipping
HB450 / HB500 TÜF
For quarries and mining

Product description

The S1H rectangular body transports bulk materials with rear tipping. Fixed sidewalls form a closed body profile. Applications include construction, quarries and aggregate transport.

Body, tailgate and accessory specifications are selected for the load and working conditions. The subframe is adapted to the specific chassis. Materials and technical data are listed for each variant.

Technical parameters

Dimensions

Body volume 12 - 18 m³ 18 - 30 m³
Internal length 4 500 - 5 500 mm 5 500 - 7 000 mm
Internal width2 200 – 2 300 mm
Sidewall height1 000 – 1 700 mm

Engineering

Floor materialHB450, HB500 TÜF
Floor thickness 5 - 10 mm 5 - 10 mm (standard 8 mm)
Sidewall materialHB450, HB500 TÜF
Sidewall thickness 4 - 10 mm 5 - 10 mm
Side wall designFirmly welded to the front bulkhead
Tipping directionOne-way — rear

Hydraulics

Cylinder typeHYVA FE or HYVA FC
SubframeIndividually designed according to the chassis manufacturer's recommendations and guidelines
Tipping angle49° – 51°
Paint finishBefore painting, the frame and all steel parts are blasted with steel grit, then coated with an anti-corrosion primer and a polyurethane top coat in the colour of the customer's choice.

Tailgate + tarpaulin

Tailgate — mechanismPENDEL · hydraulic · cable mechanism
Tailgate material HB450, HB500 TÜF (4 - 10 mm) HB450, HB500 TÜF (6 - 10 mm)
Tarpaulin systemNone · to the side by crank · CRAMARO CABRIOLE mechanical · CRAMARO CABRIOLE electric
ColoursRAL 9006 · RAL 9007 · white · blue · red · yellow · green · colour palette

Standard equipment

Steps on the left side of the body
Aluminium rear mudguards, fitted (over 2 axles) + mud flaps
Aluminium side underrun guards
Position light wiring
Wheel chock holders + shovel holder
Tipping limit switch
Rubber stops — replaceable
Rear light cluster guards
Reflective marking of the body according to ECE R104
Tarpaulin system pre-installation
Body support + body stabilizer
Mounting of the body at the VS-MONT plant + vehicle registration documents

Advantages of the S1H model

Rectangular body profile

Body shape and dimensions are matched to the required volume and the material carried.

HB450 and HB500 TÜF

HB450 and HB500 TÜF high-strength wear-resistant steels in various thicknesses — maximum resistance to abrasive materials.

For quarries and mining

The specially reinforced construction with firmly welded sidewalls can withstand extreme impacts from large stones and harsh conditions in quarries.

HYVA hydraulics

Complete HYVA hydraulics controlled from the cab.

Custom subframe

The subframe is individually designed according to the chassis manufacturer's recommendations and guidelines — optimal load distribution.

Service and support

Complete post-warranty service, availability of original spare parts and technical advice throughout the service life.

Compatible chassis

We install the S1H body on all common truck brands

Downloads

The technical data sheets are specific to the selected variant. The other documents are shared by all variants.

Design examples

Installations of the S1H model on different chassis and axle configurations

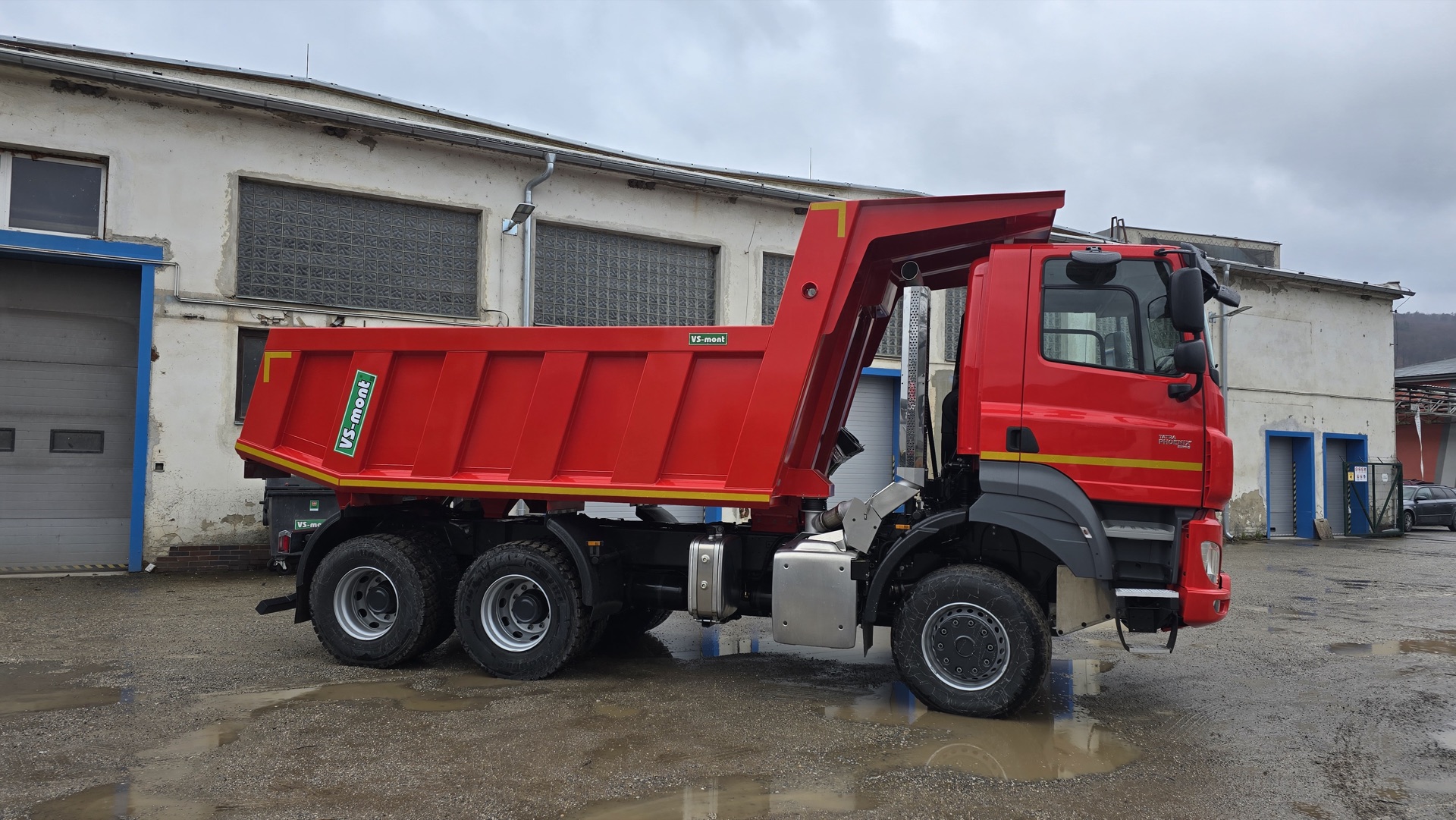

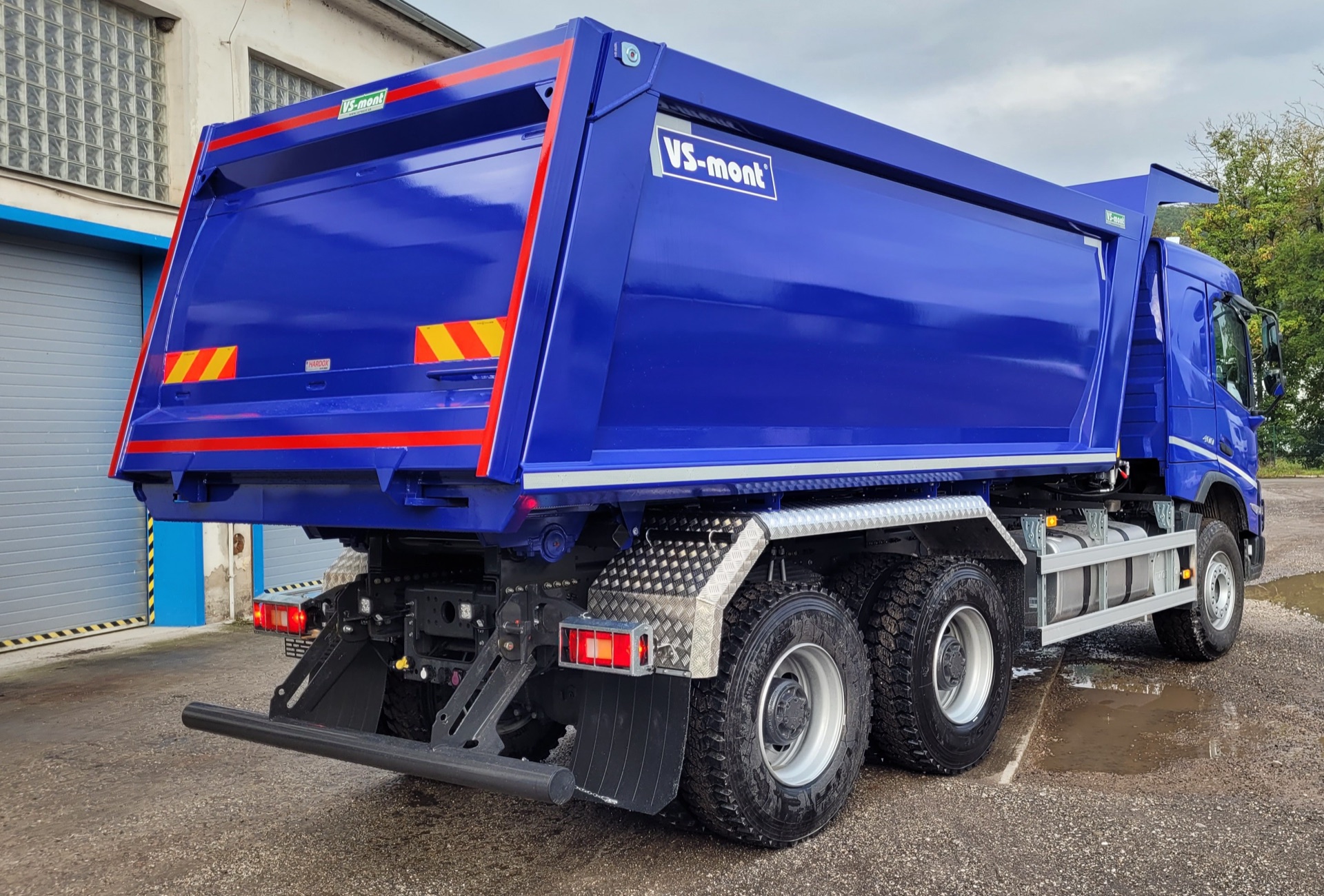

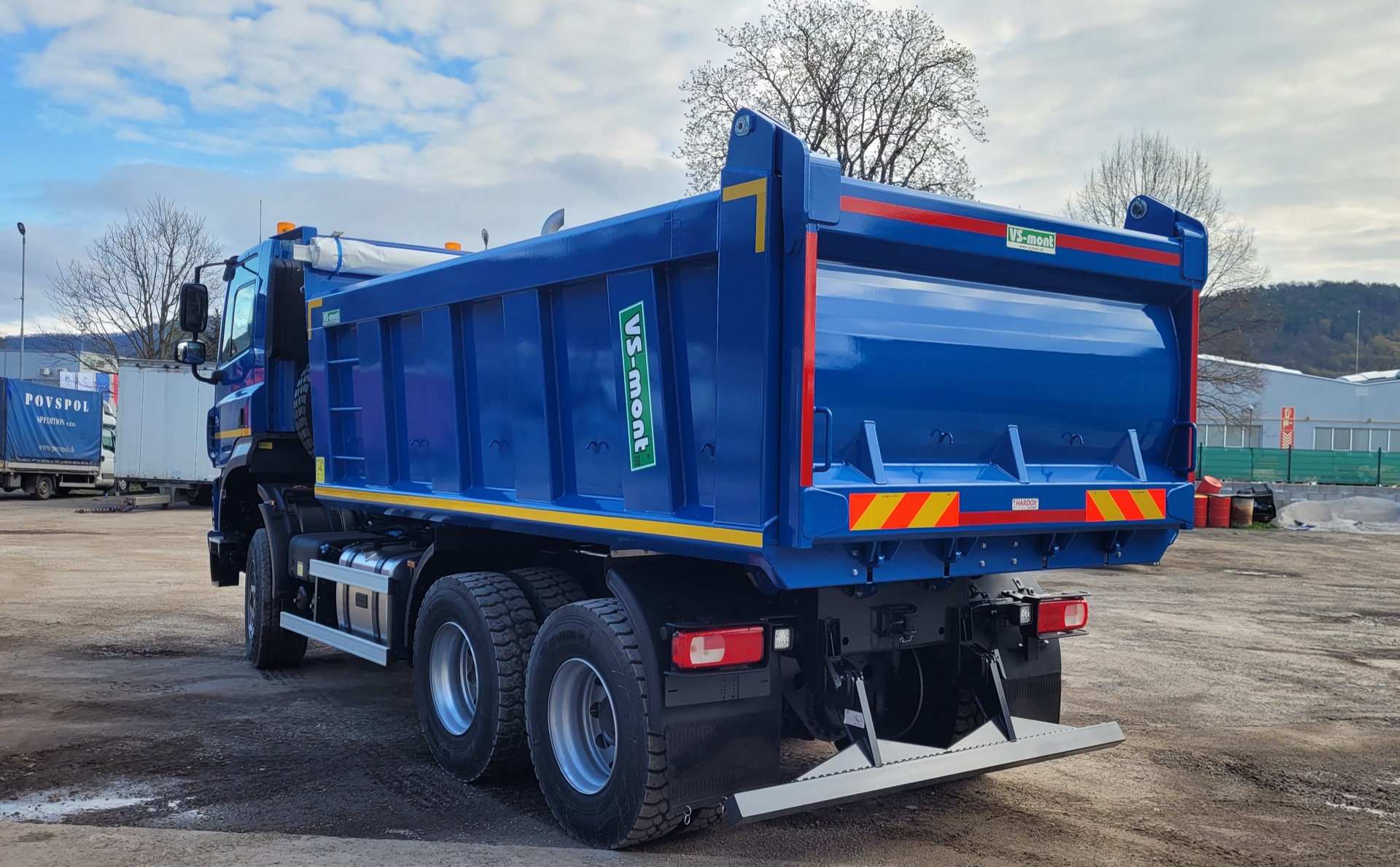

S1H 3-axleS1H · 3 axles
S1H 3-axleS1H · 3 axles

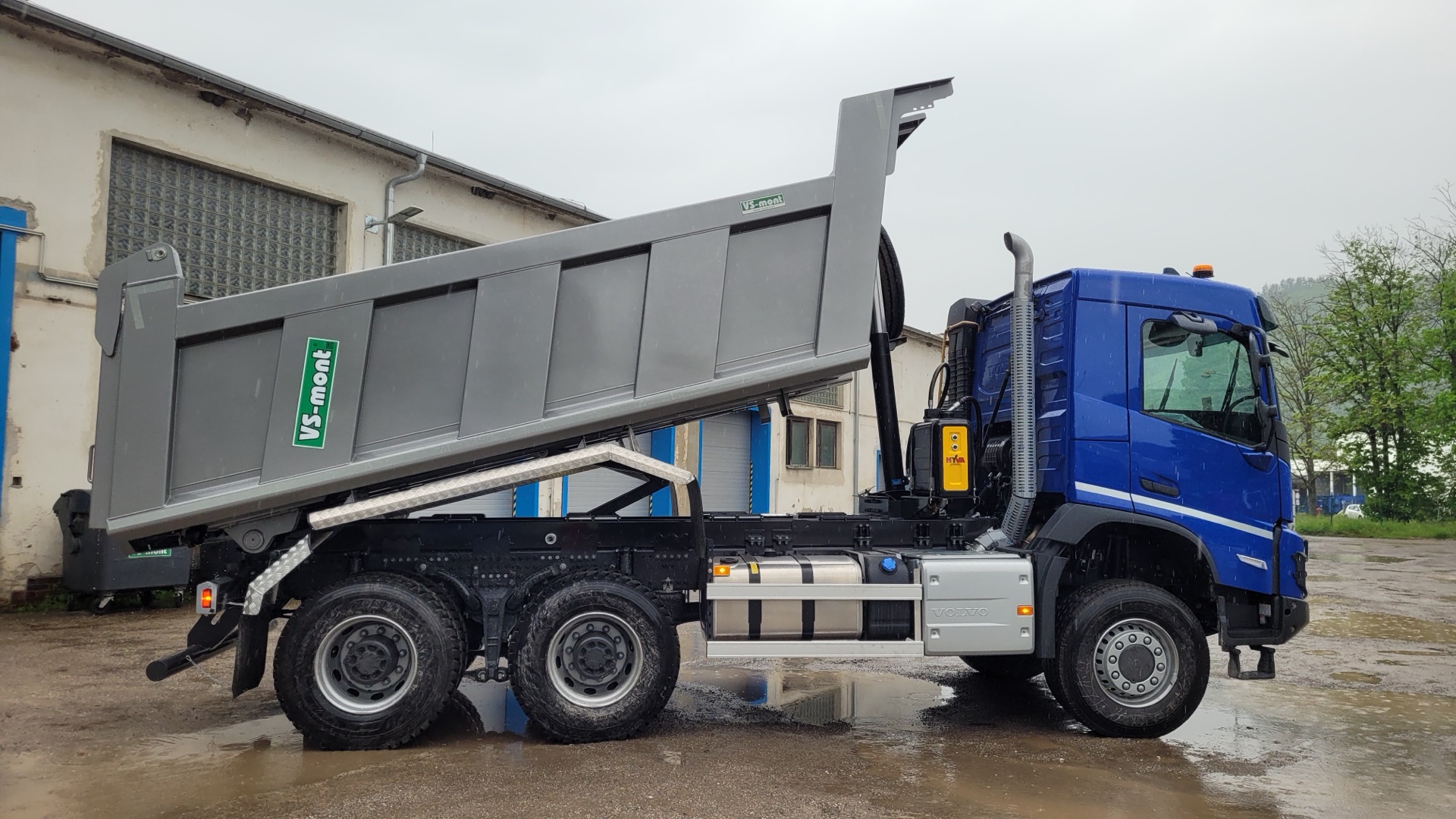

S1H 3-axleS1H · 3 axles
S1H 3-axleS1H · 3 axles

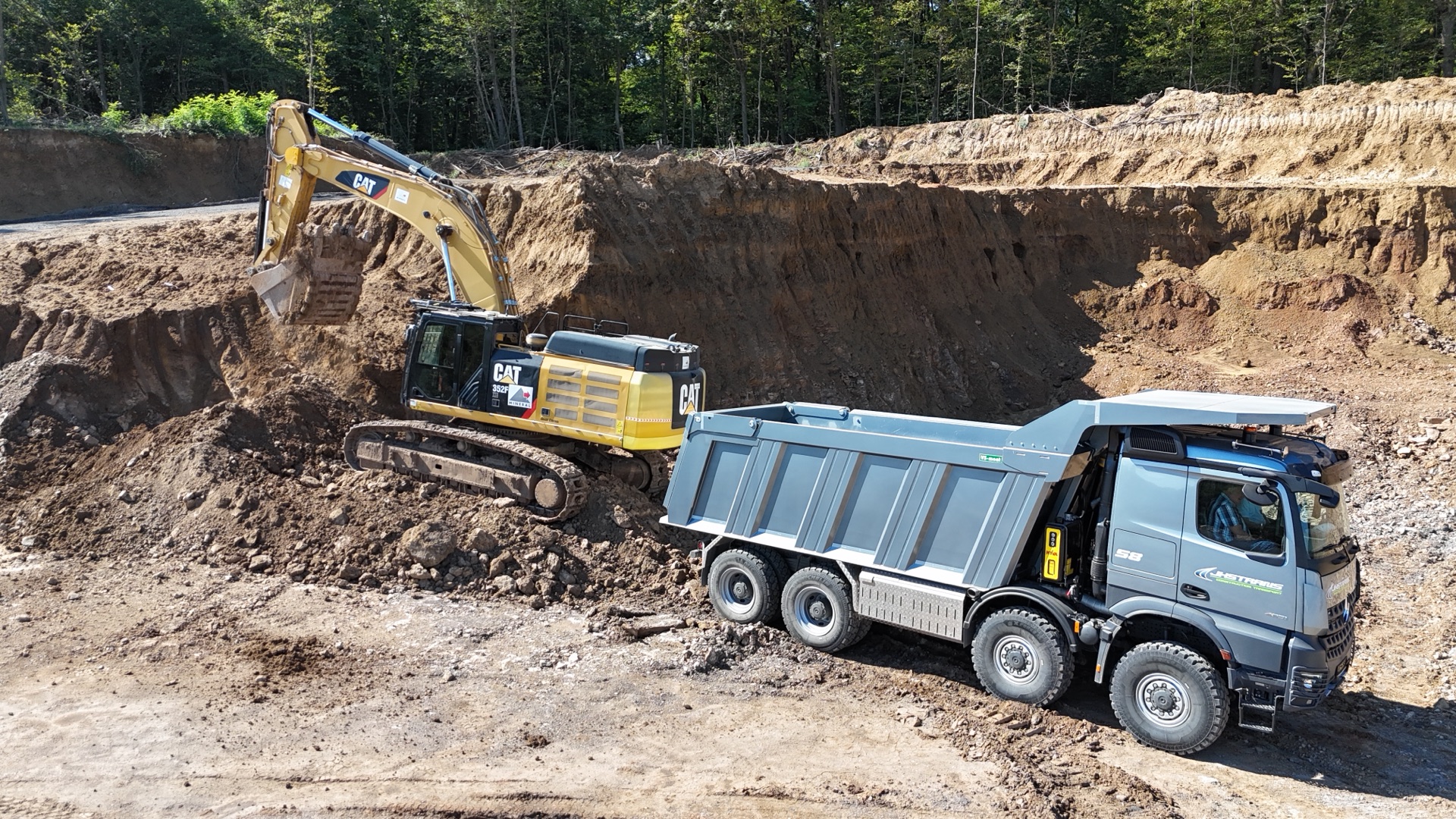

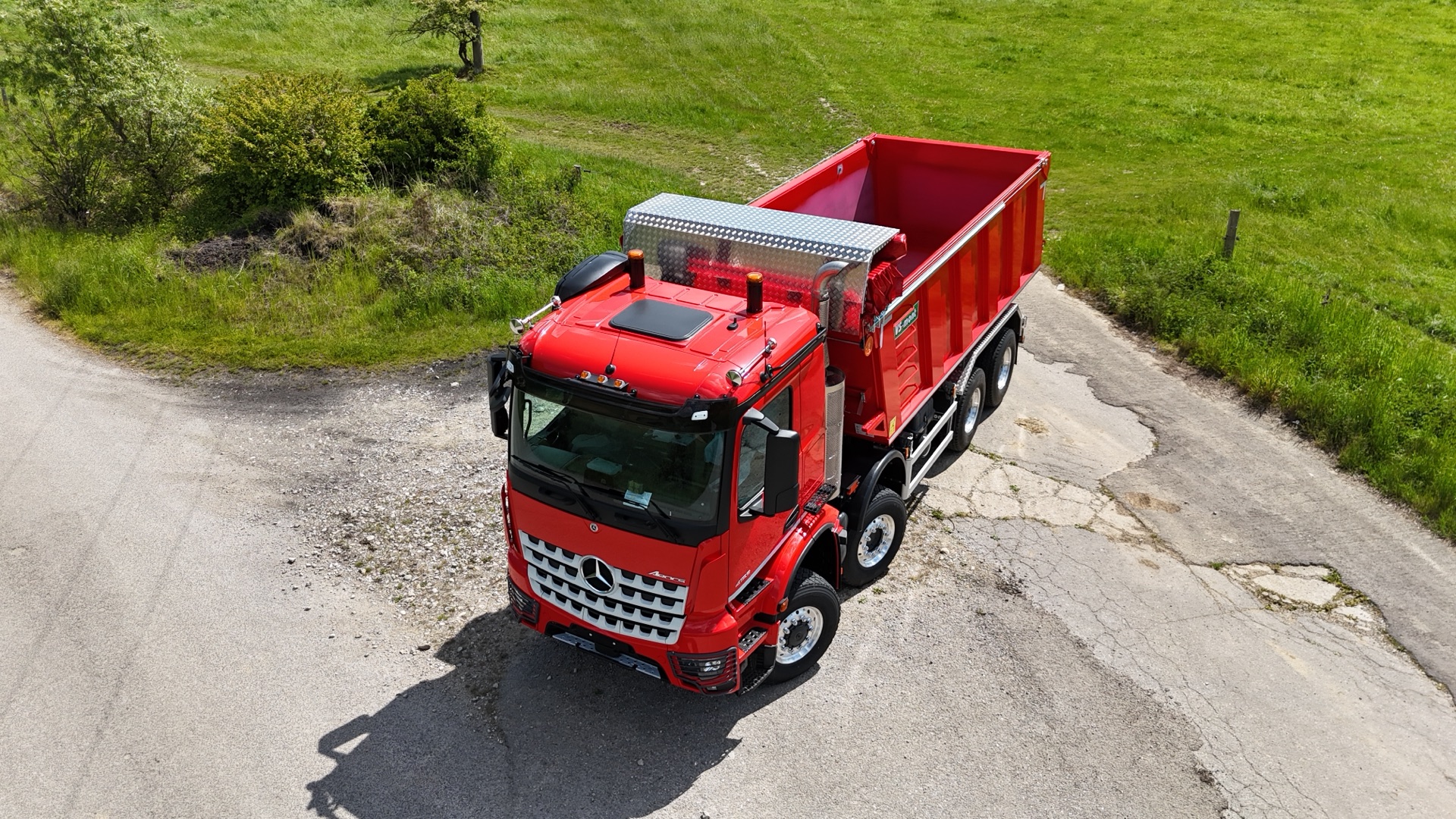

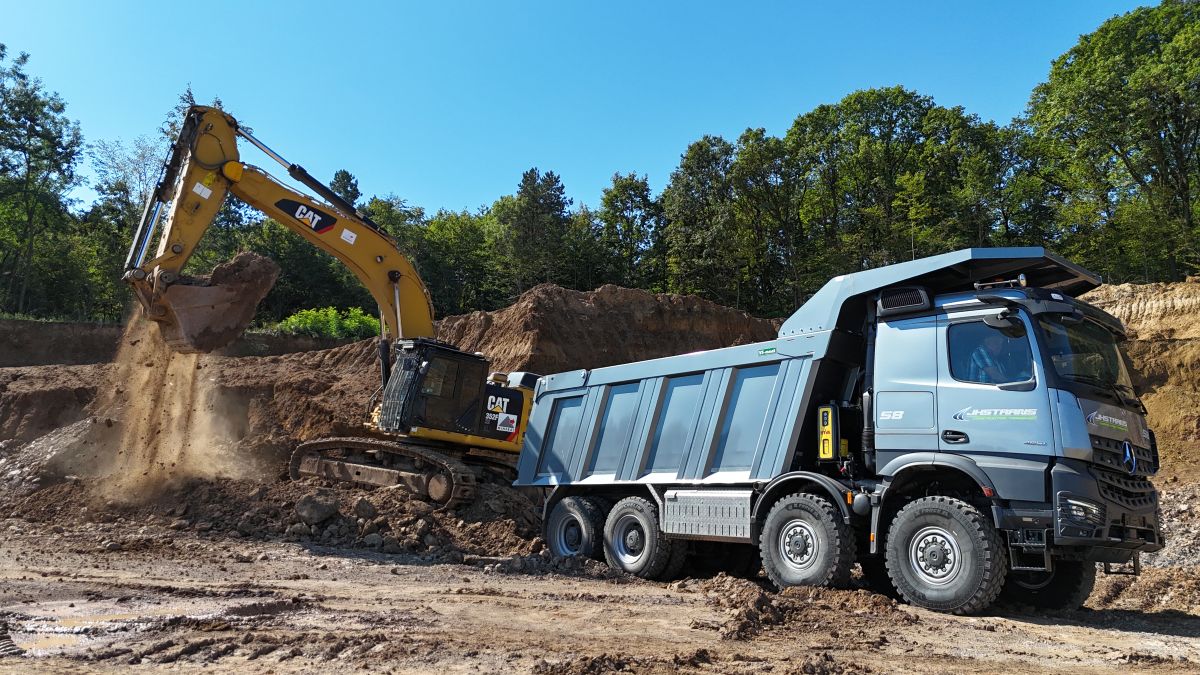

S1H 4-axle — droneS1H · 4 axles (drone)

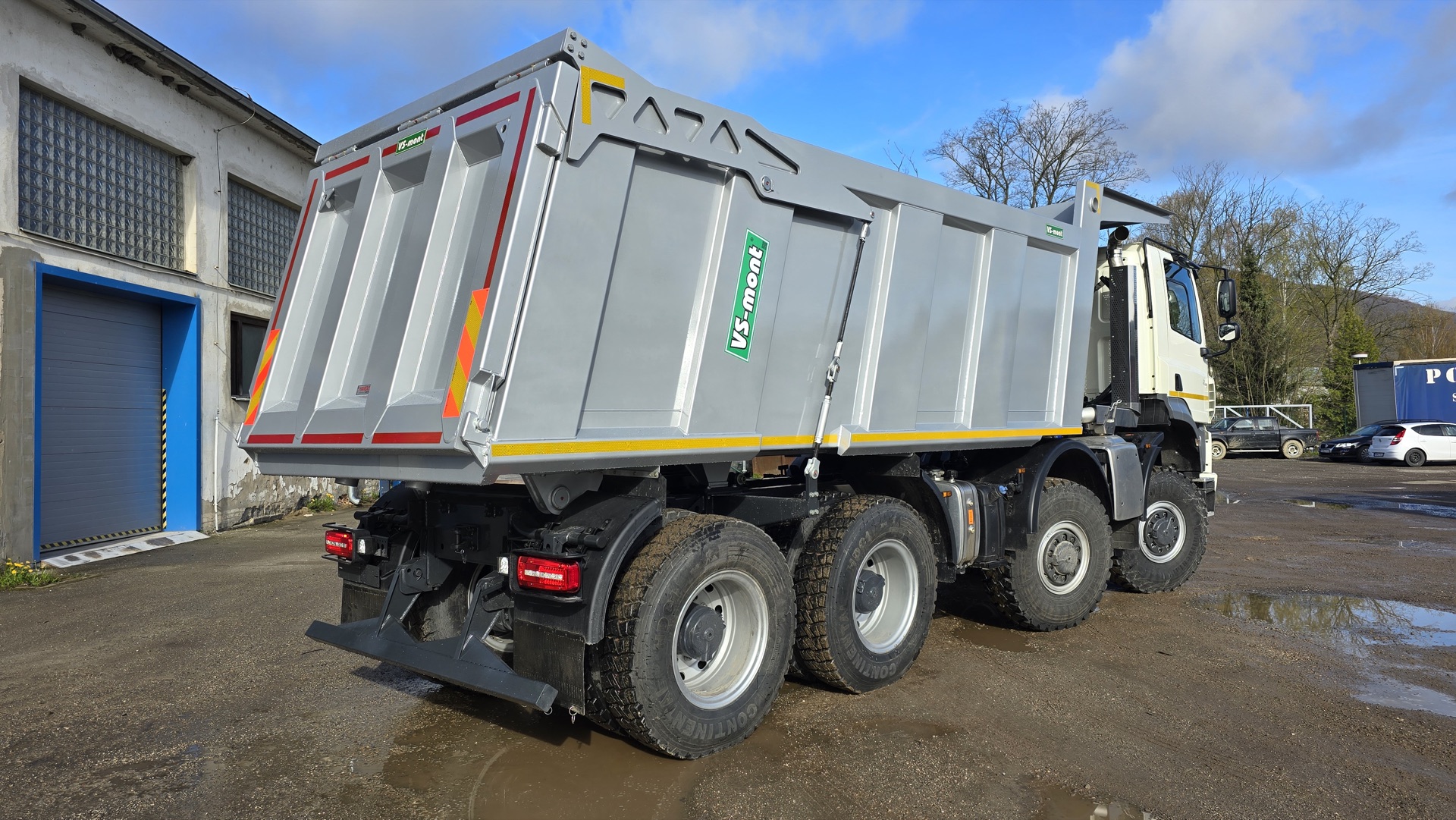

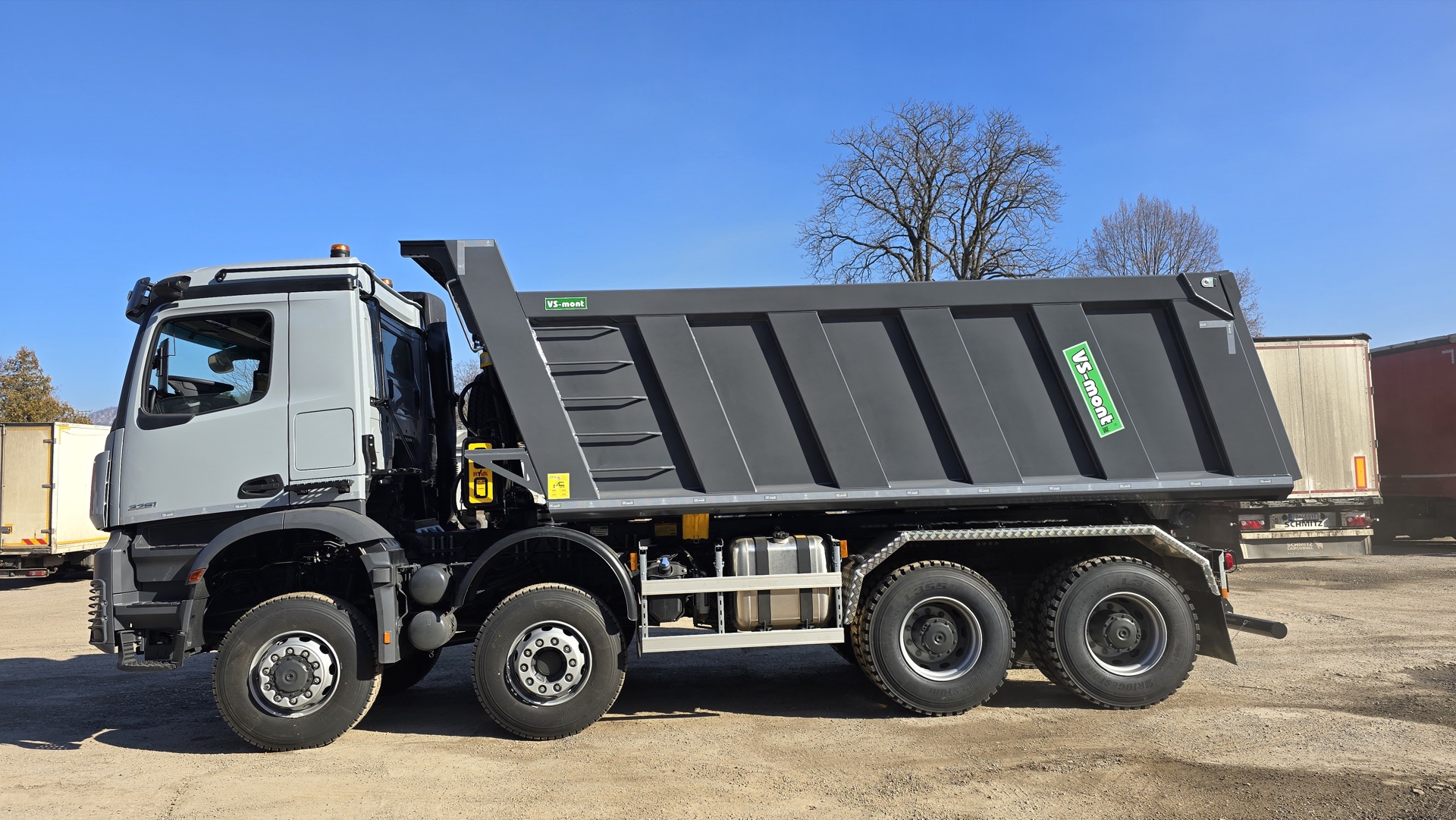

S1H 4-axleS1H · 4 axles
S1H 4-axleS1H · 4 axles
S1H 4-axle — droneS1H · 4 axles (drone)

Details and accessories

Examples of standard equipment and optional features of the S1H model

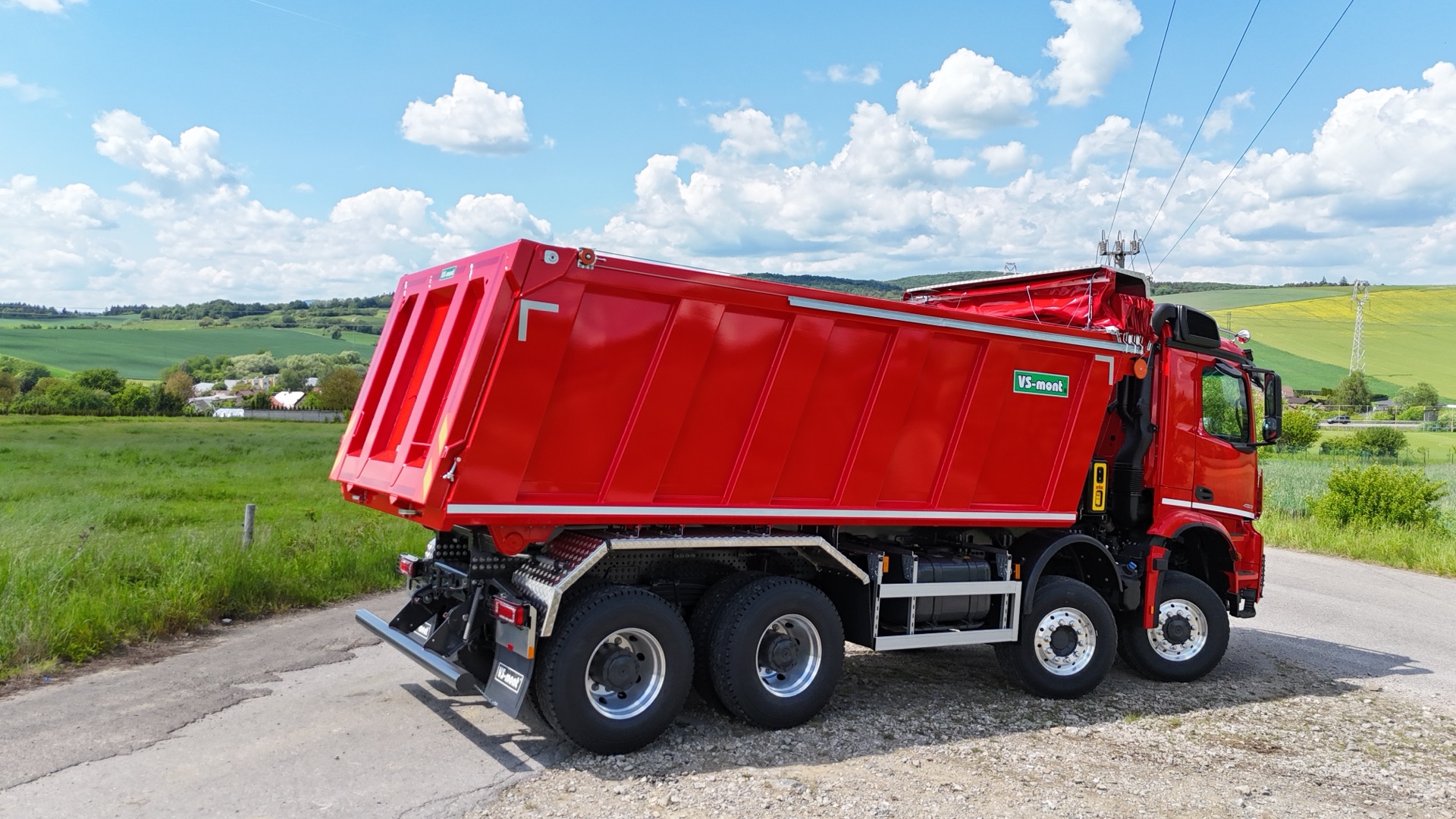

S1H aerial viewView from above
S1H drone shotDrone shot

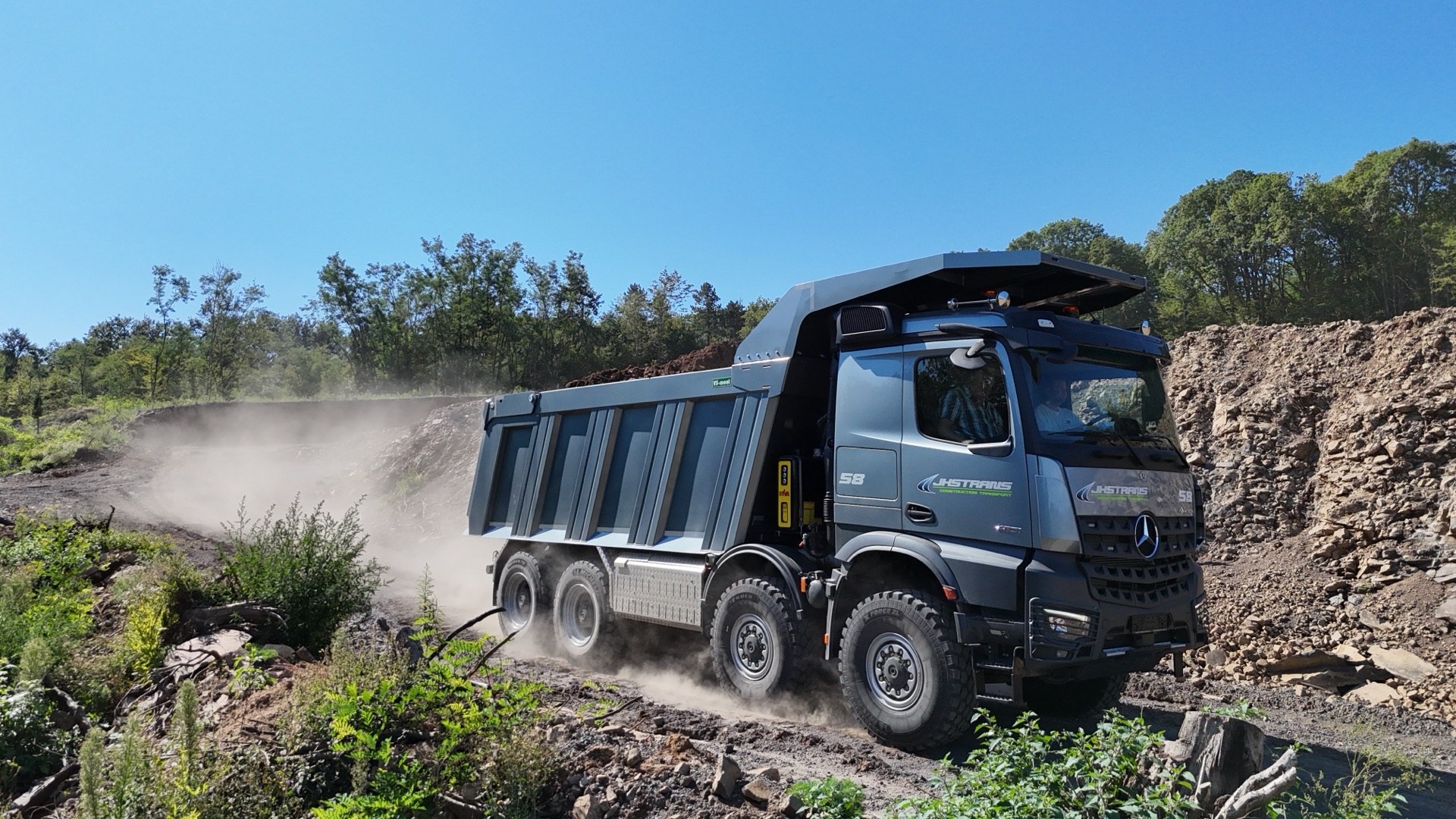

S1H front bulkheadFront bulkhead — detail

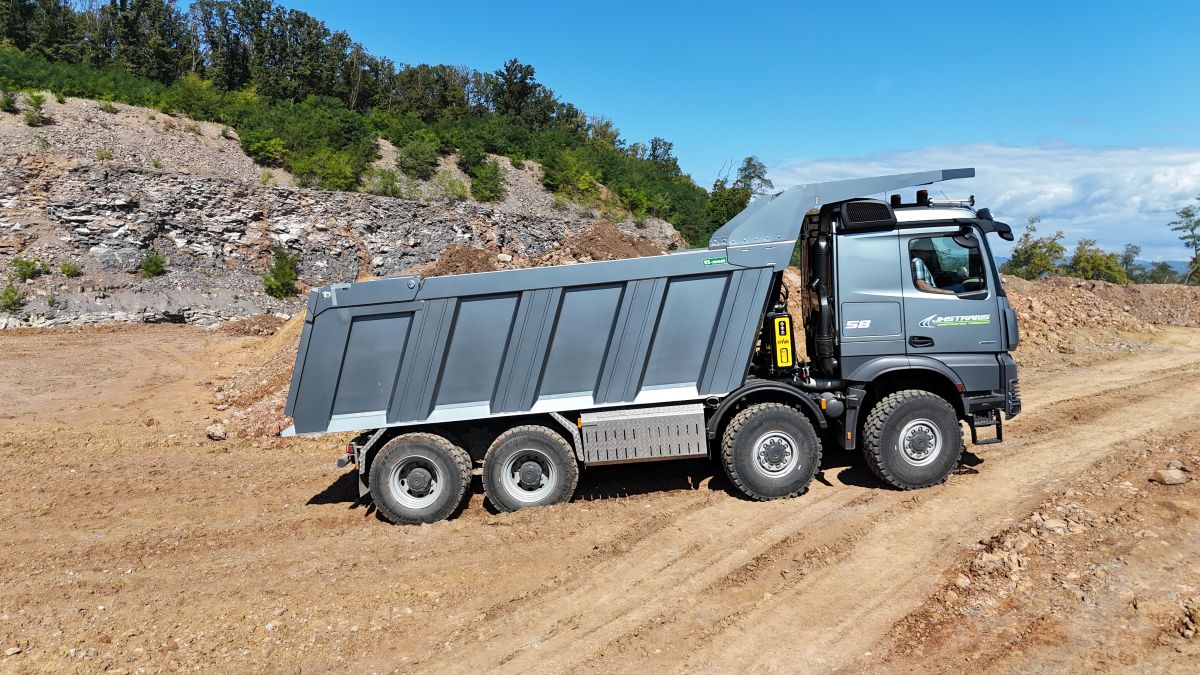

S1H tippingRear tipping

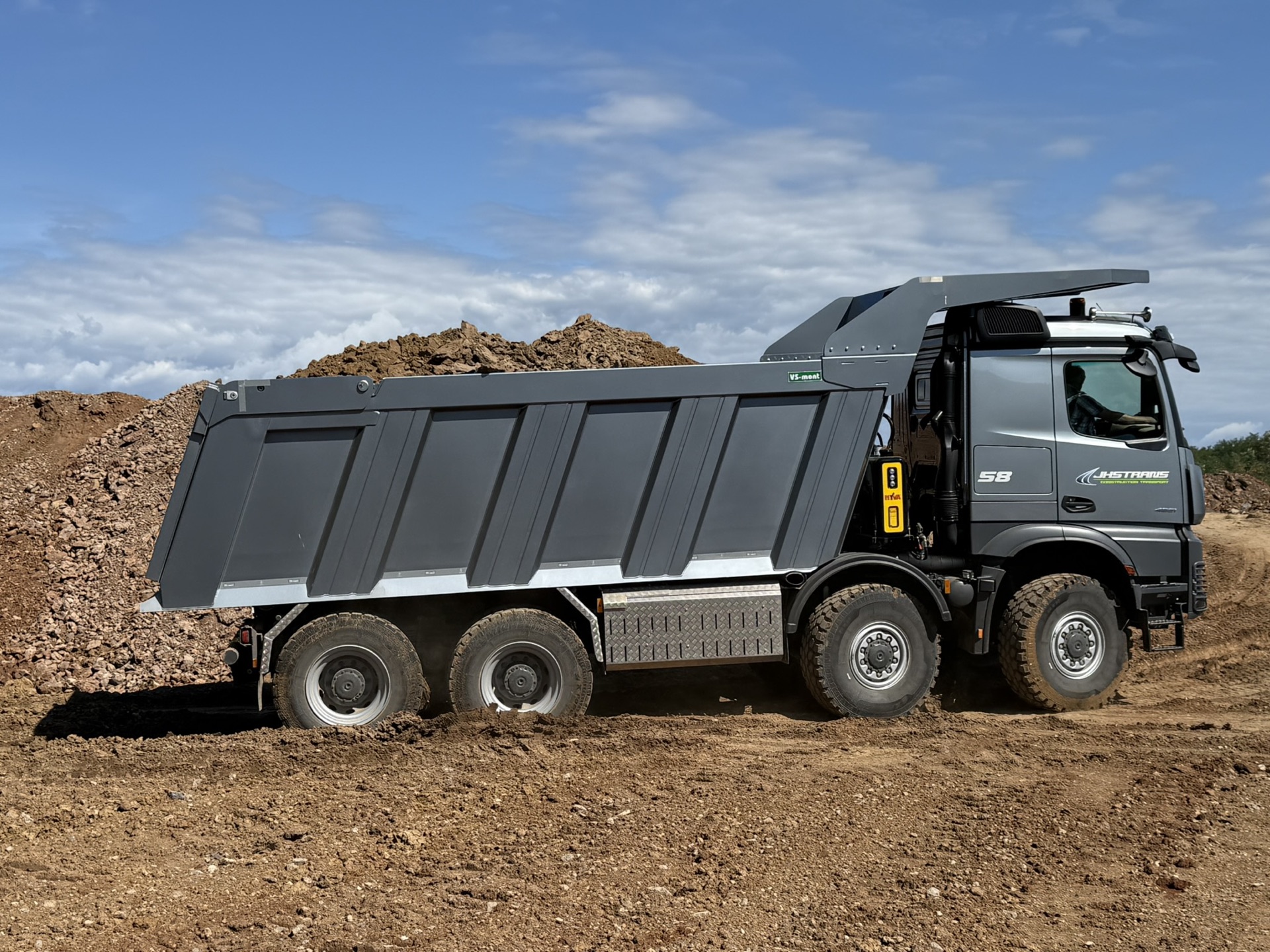

S1H detailDetailed view

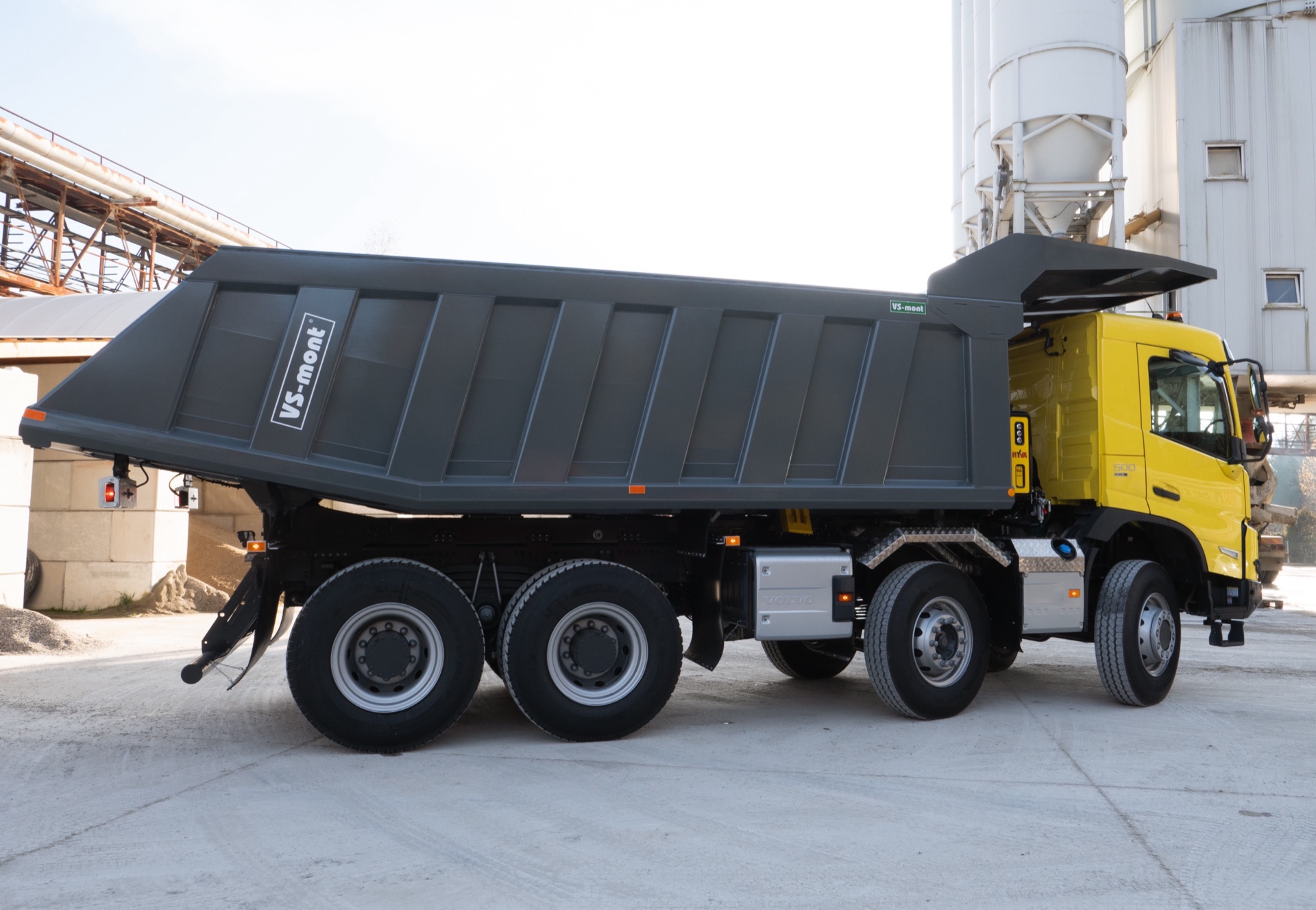

S1H bodyBody — profile

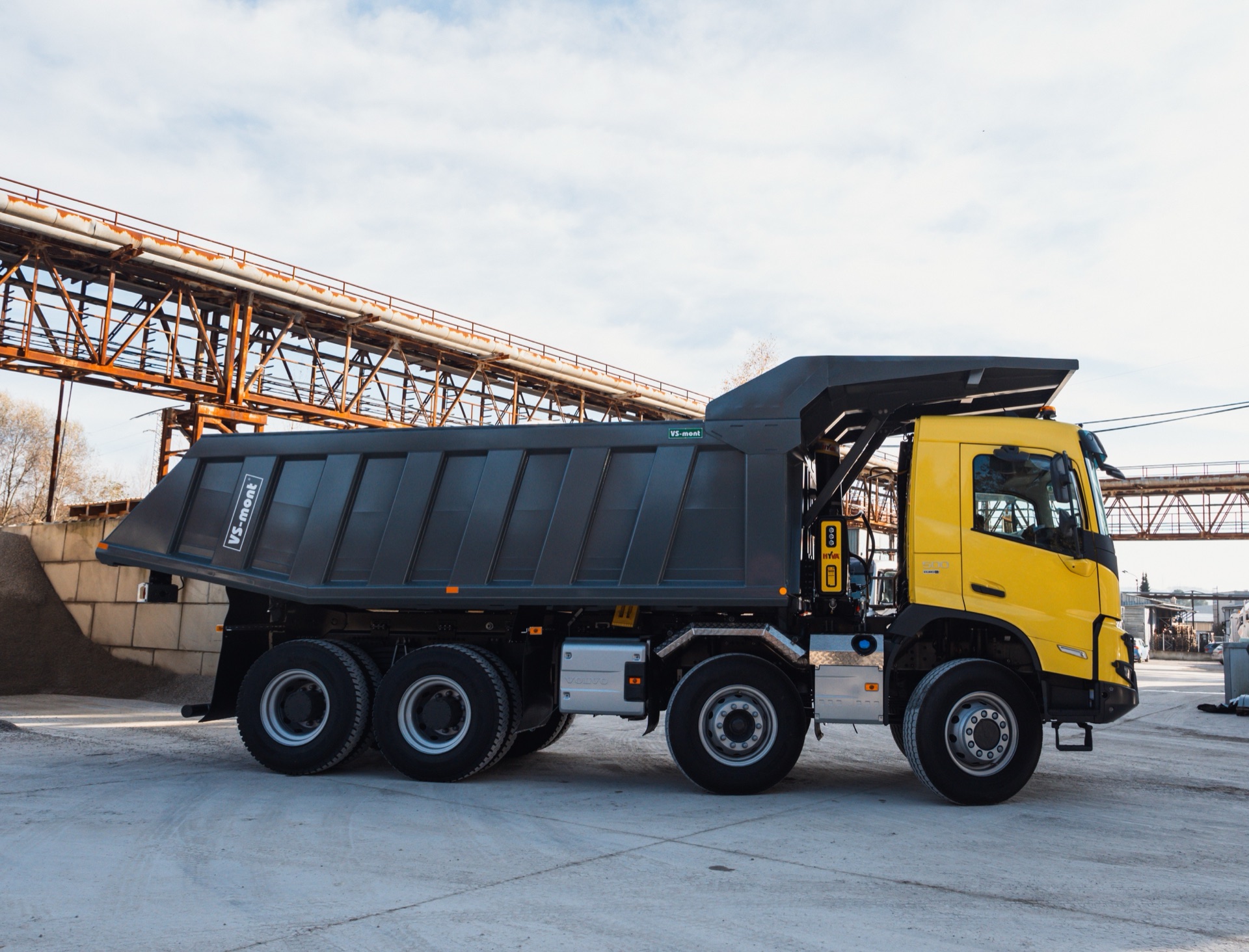

Without tailgateWithout tailgate

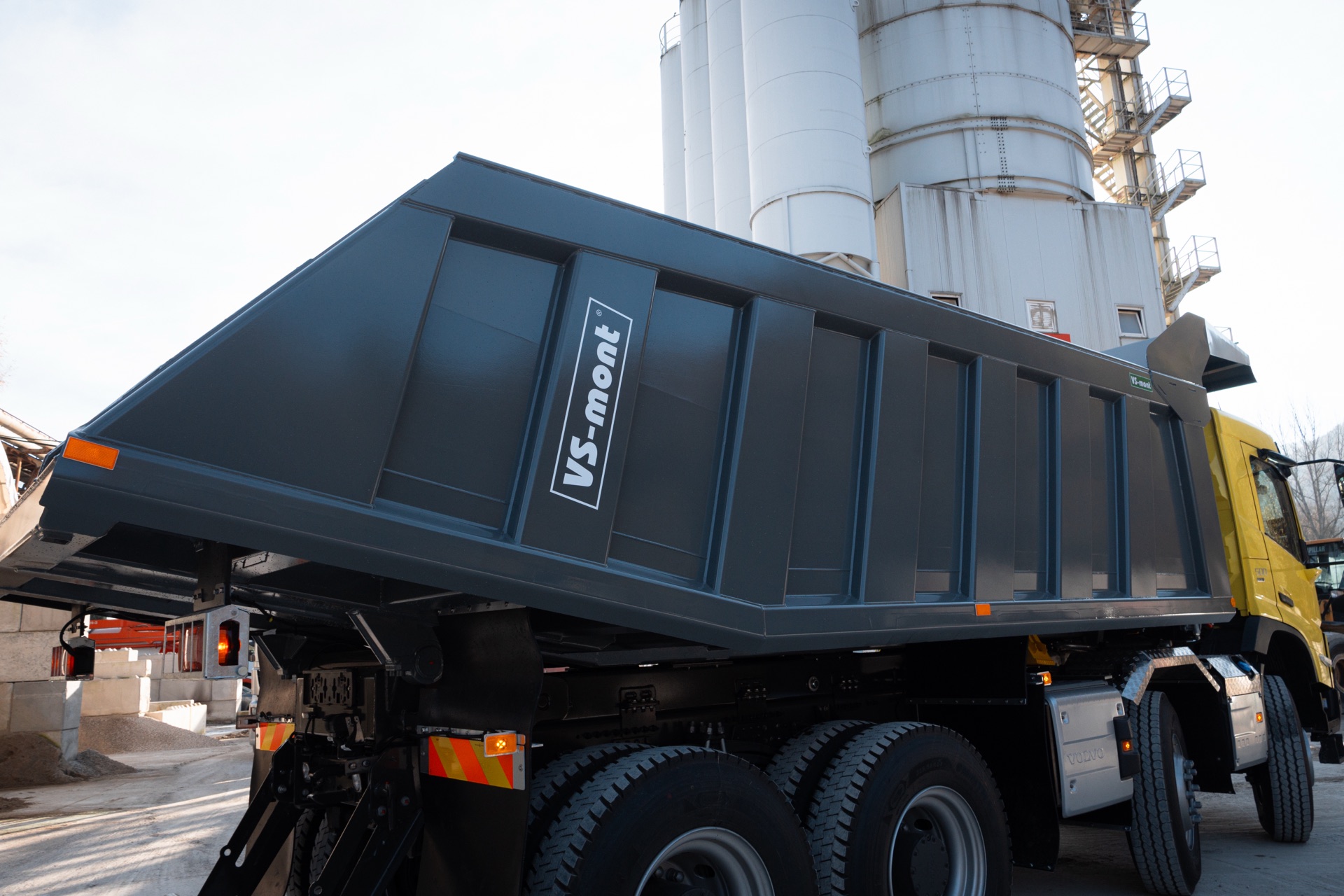

S1H constructionBody construction

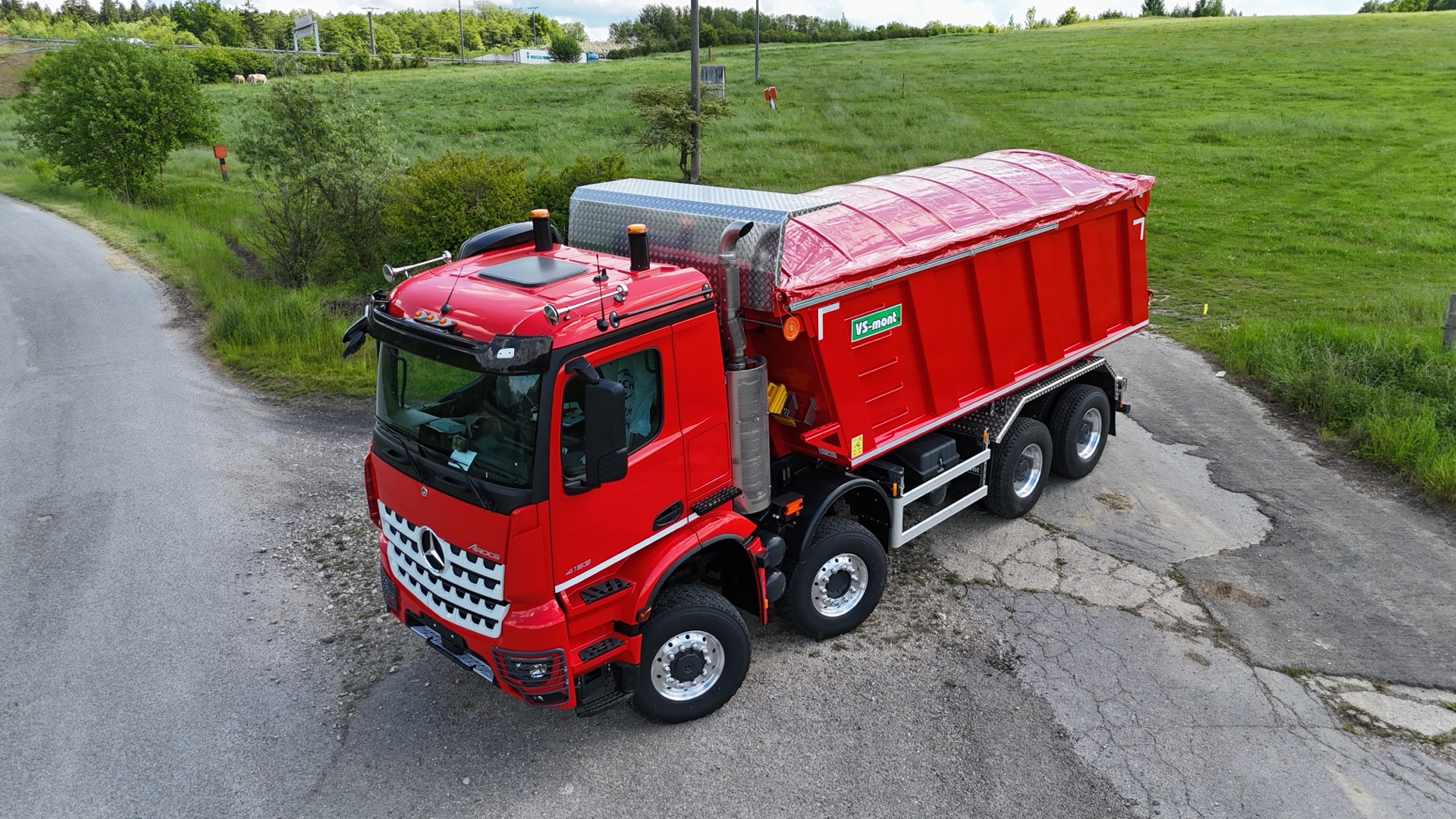

S1H 4N drone4N — drone shot

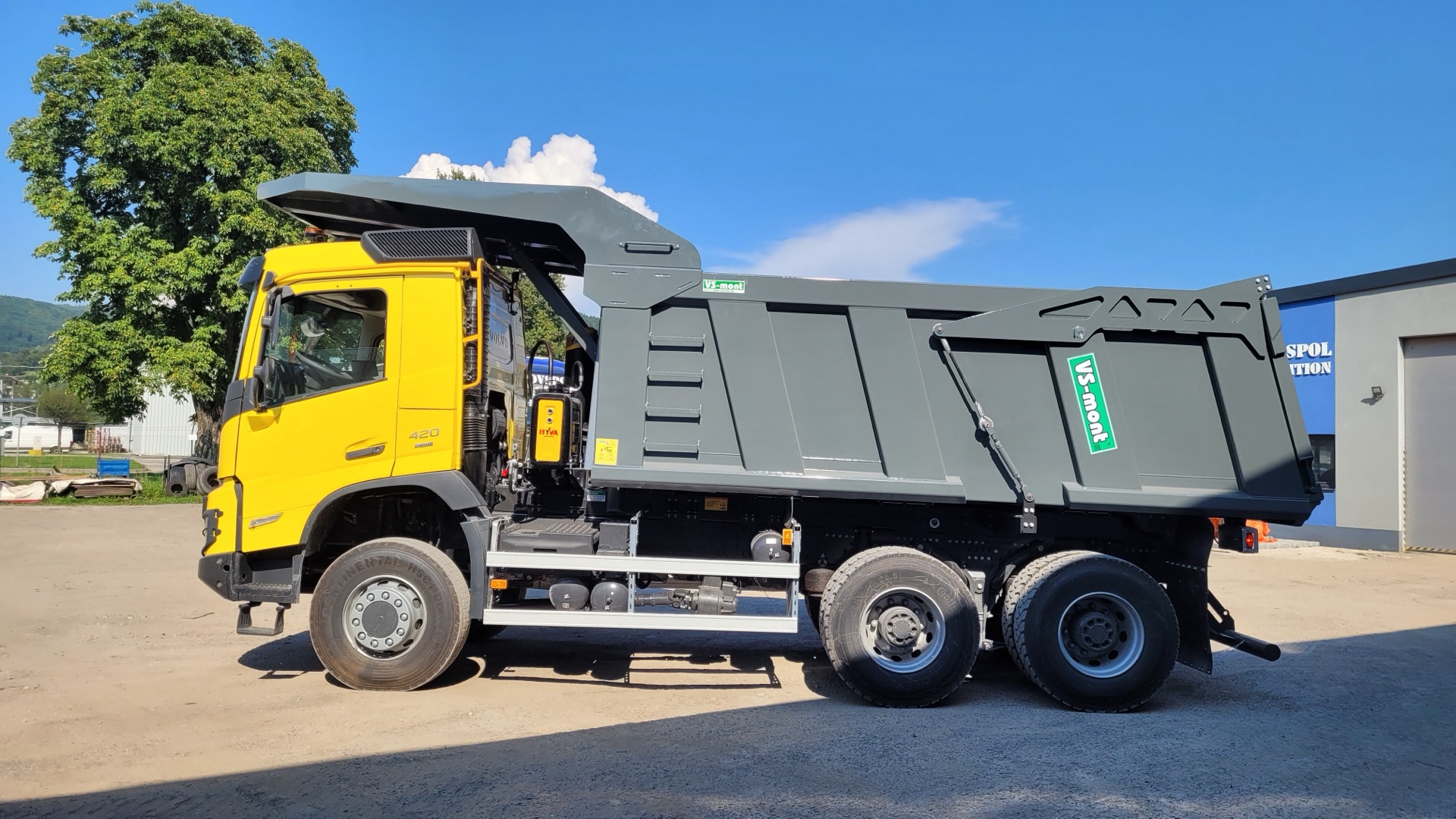

S1H 3N detail3N — project
S1H configurator

Configure your tipper body

Choose the number of axles, materials, tailgate and accessories. Once completed, send your enquiry — we will prepare an individual quotation for you.

Category, type and chassis

Body category
Rear-tipping rectangular
Body type
S1H — standard

Number of axles

Standard specification and standard equipment

m³Model range: 12 - 18 m³
Tipper body subframe:
Individually designed according to the chassis manufacturer's recommendations and guidelines
Tipper body hydraulic system:
HYVA FE or HYVA FC — controls in the driver’s cab
Sidewall design:
Welded to the front bulkhead (non-opening)
Material in standard specification:
  • Floor: HB450 — 5 mm
  • Sidewalls: HB450 — 4 mm
  • Front bulkhead: HB450 — 4 mm
  • Tailgate: HB450 — 4 mm
Tailgate in standard specification:
PENDEL

Standard equipment

  • Steps on the left side of the body
  • Aluminium rear mudguards, fitted (over 2 axles) + mud flaps
  • Aluminium side underrun guards
  • Position light wiring
  • Wheel chock holders + shovel holder
  • Tipping limit switch
  • Rubber stops — replaceable
  • Rear light cluster guards
  • Reflective marking of the body according to ECE R104
  • Tarpaulin system pre-installation
  • Body support + body stabilizer
  • Mounting of the body at the VS-MONT plant + vehicle registration documents

Material used on the body selection

We recommend choosing the materials listed in the technical sheets — they are verified for the given load and application.

Tailgate design selection

Body paint colour colour chart

Before painting, the frame and all steel parts are blasted with steel grit, then coated with an anti-corrosion primer and a polyurethane top coat in the colour of the customer's choice.
