Stetter Basic Line

The basic line of concrete mixers from the world leader Stetter. It is mainly intended for small and medium-sized concrete plants and construction companies that are looking for a reliable solution for the daily transport of concrete with an emphasis on quality, simplicity and economical operation.

STETTER BASIC

Stetter Basic Line

The basic line of concrete mixers from the world leader Stetter. It is mainly intended for small and medium-sized concrete plants and construction companies that are looking for a reliable solution for the daily transport of concrete with an emphasis on quality, simplicity and economical operation.

Simple operation
Proven technology
Optimal price/performance ratio

Product description

Robust construction, proven components and sophisticated Stetter technology ensure reliable and safe operation even in everyday use. At the same time, well-thought-out solutions make the operator's work easier, shorten the time required for maintenance and help keep operating costs low.

The high waterline enables efficient use of the body volume, while the low center of gravity contributes to the stability and good driving characteristics of the vehicle. Increased resistance to wear is ensured by the abrasion-resistant lining of the hopper, dump and rotating chute. The mixing spirals are protected by the Stetter T-Protect system (30 × 8 mm), which increases their resistance and contributes to a longer service life. At the same time, the structure is designed with regard to easy operation and maintenance. A large free space when filling the tubs facilitates handling, smooth surfaces enable quick cleaning, and easily replaceable abrasive elements shorten the time required for service. Cleaner operation in the area of ​​the support console is ensured by two drip rings, which limit contamination of the body.

A short filling, emptying and cleaning time combined with low maintenance requirements results in high efficiency during the entire operation. The proven Stetter technology thus provides a reliable basis for the everyday transport of concrete without unnecessary complications.

Technical parameters

BASIC LINE series — Stetter C3 models, volume 6 to 15 m³, with mechanical or electronic control (SMART-Control) and the option of a separate drive.

Parameter AM6CAM7CAM8CAM9CAM10CAM12CAM15C
Nominal volume (m³)6789101215
Geometric volume (l)11 53012 71014 12015 81017 04019 17023 520
Volume after the waterline (l)7 1808 1509 34010 39011 40013 28016 330
Degree of fulfillment (%)5255,156,756,958,762,663,8
Drum inclination (°)12,4512,4512,4511,211,2109,2
Separate drive (type / kW)D914L04 / 58D914L04 / 58D914L05 / 75D914L06 / 86.5D914L06 / 86.5D914L06 / 86.5—
Drum speed (rpm)0–12/140–12/140–12/140–12/140–12/140–12/140–12/14
Weight of body FH/SH (kg)3 370 / 3 7803 463 / 3 8703 770 / 4 3503 920 / 4 5503 990 / 4 6204 950 / 5 5805 380
A — Drum diameter (mm)2 3002 3002 3002 3002 3002 4002 400
B — Hopper height (mm)2 4252 4252 4992 4742 5322 5482 568
C — Driving height (mm)2 4292 4262 5032 5342 5922 6332 671
D — Dumping height (mm)1 0291 0271 1011 0891 1471 1691 211

FH = drive from chassis engine · SH = separate drive (DEUTZ diesel engine). The weights are given without the subframe, according to DIN 70020, deviation ±5%.

Advantages of Stetter Basic Line

Stetter brand

German quality and reliability from the world leader in concrete technology.

Optimal price

Excellent price/performance ratio for beginners and intermediate concrete mixers.

Durable construction

Abrasion-resistant steel and quality components guarantee a long service life.

Simple maintenance

Simple construction and availability of spare parts minimize maintenance costs.

Service support

Complete VS-MONT service support including original Stetter spare parts.

Proven solution

Thousands of satisfied customers around the world using Stetter mixers.

Compatible chassis

We install Stetter Basic Line mixers on all common brands of trucks

Reference installations

Installations of Stetter BASIC LINE auto mixers

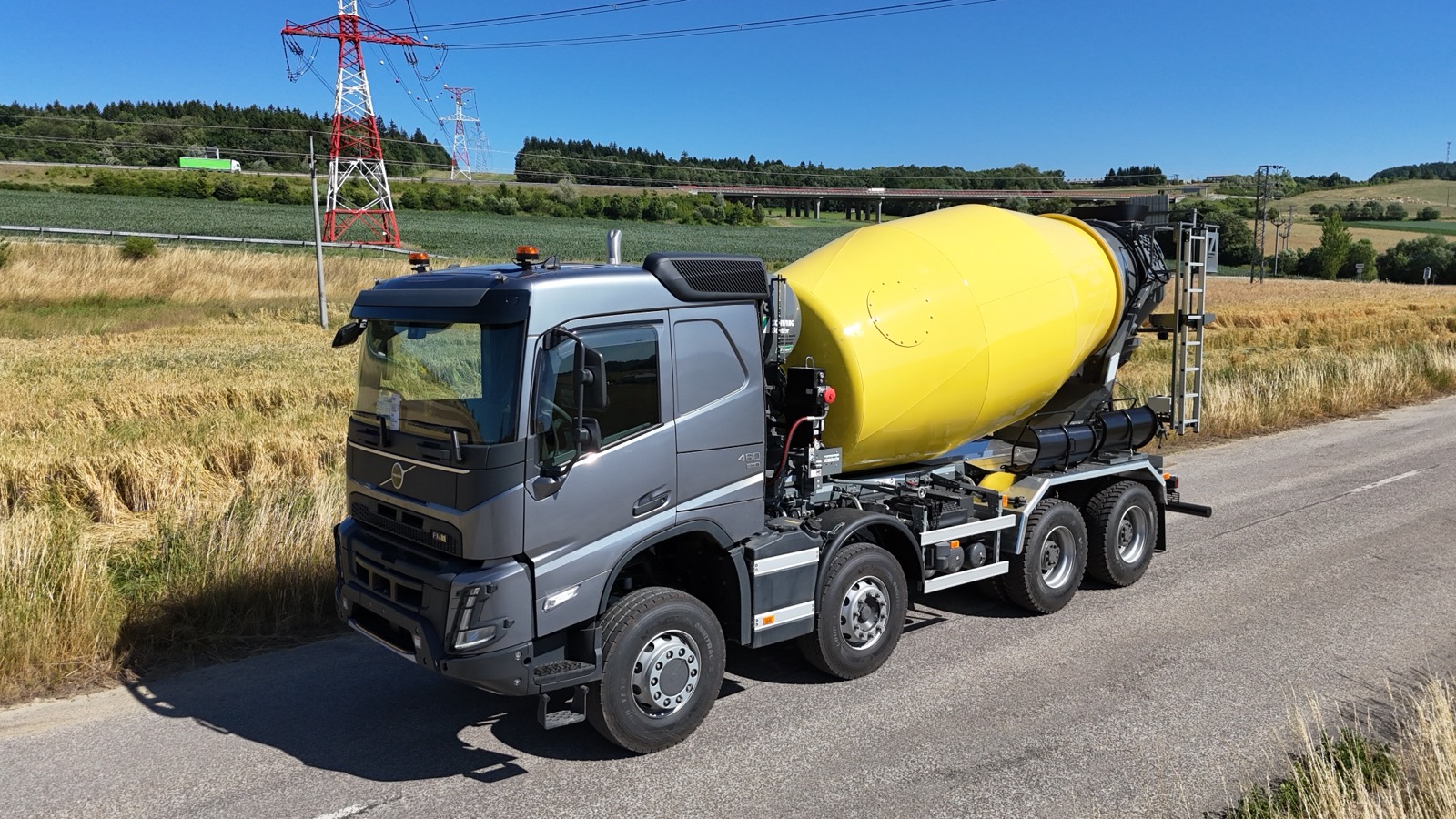

Stetter truck mixer on 4-axle chassisTruck mixer · 4-axle

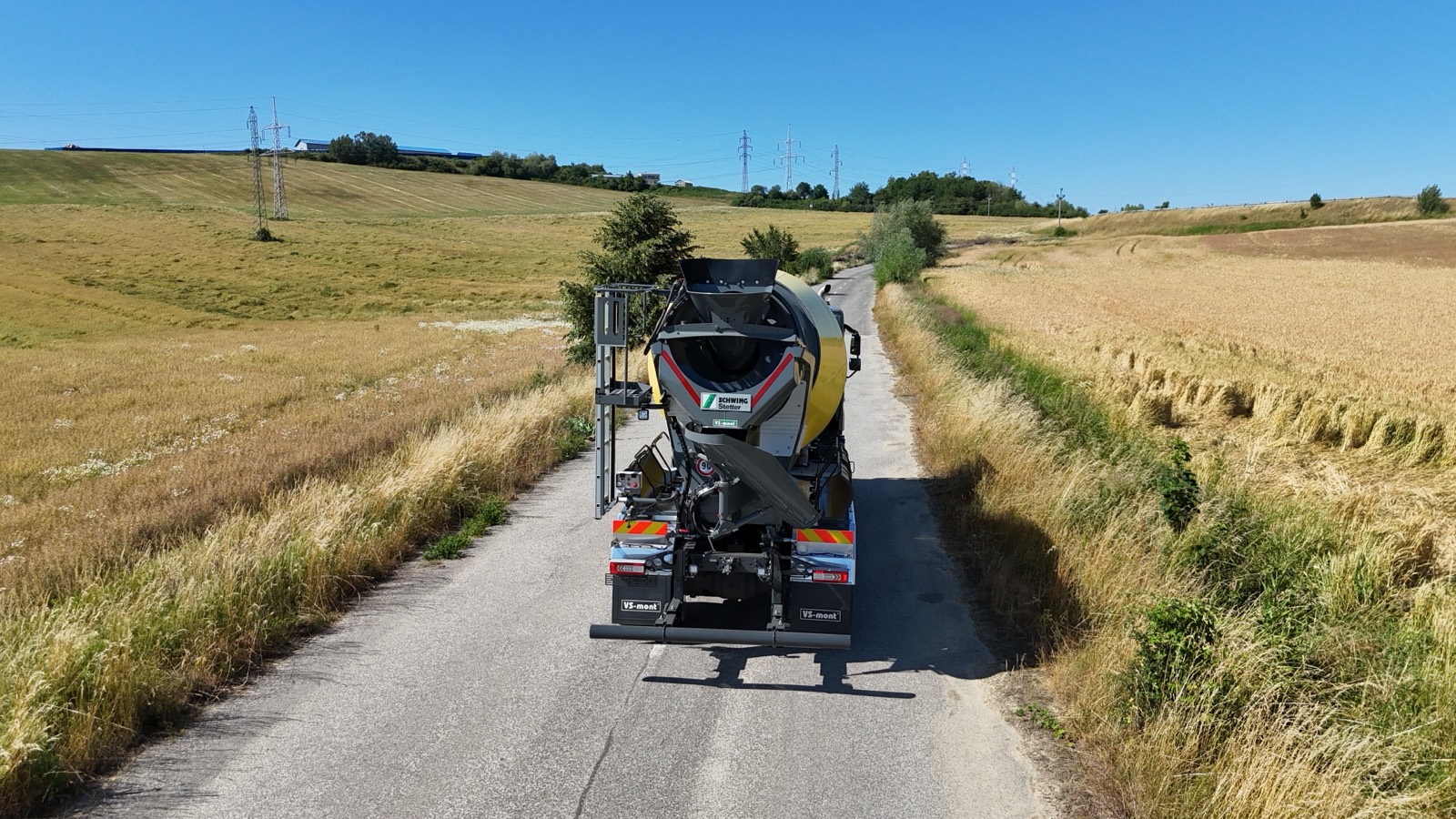

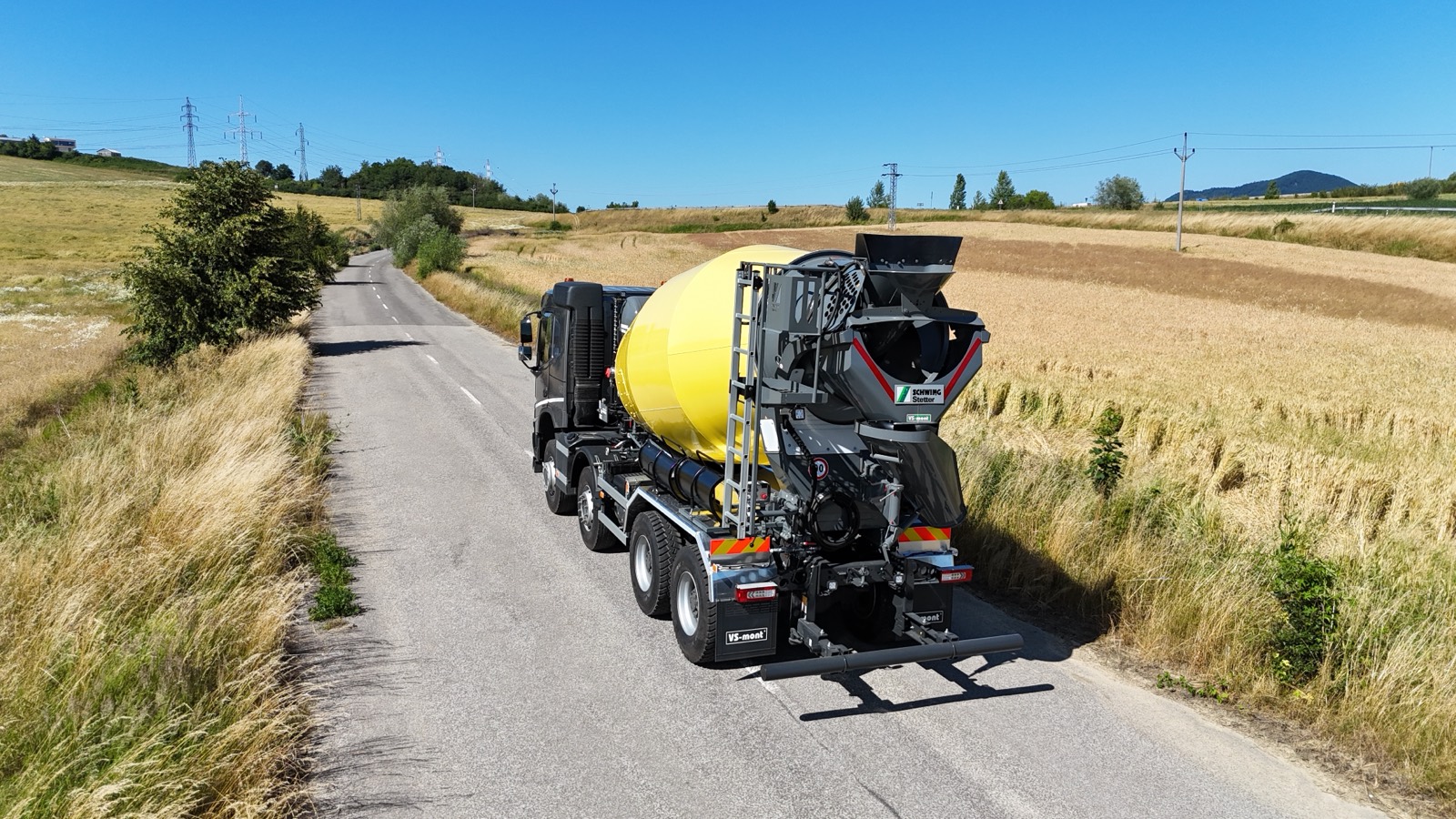

Stetter auto mixer — drone viewTruck mixer · 4-axle

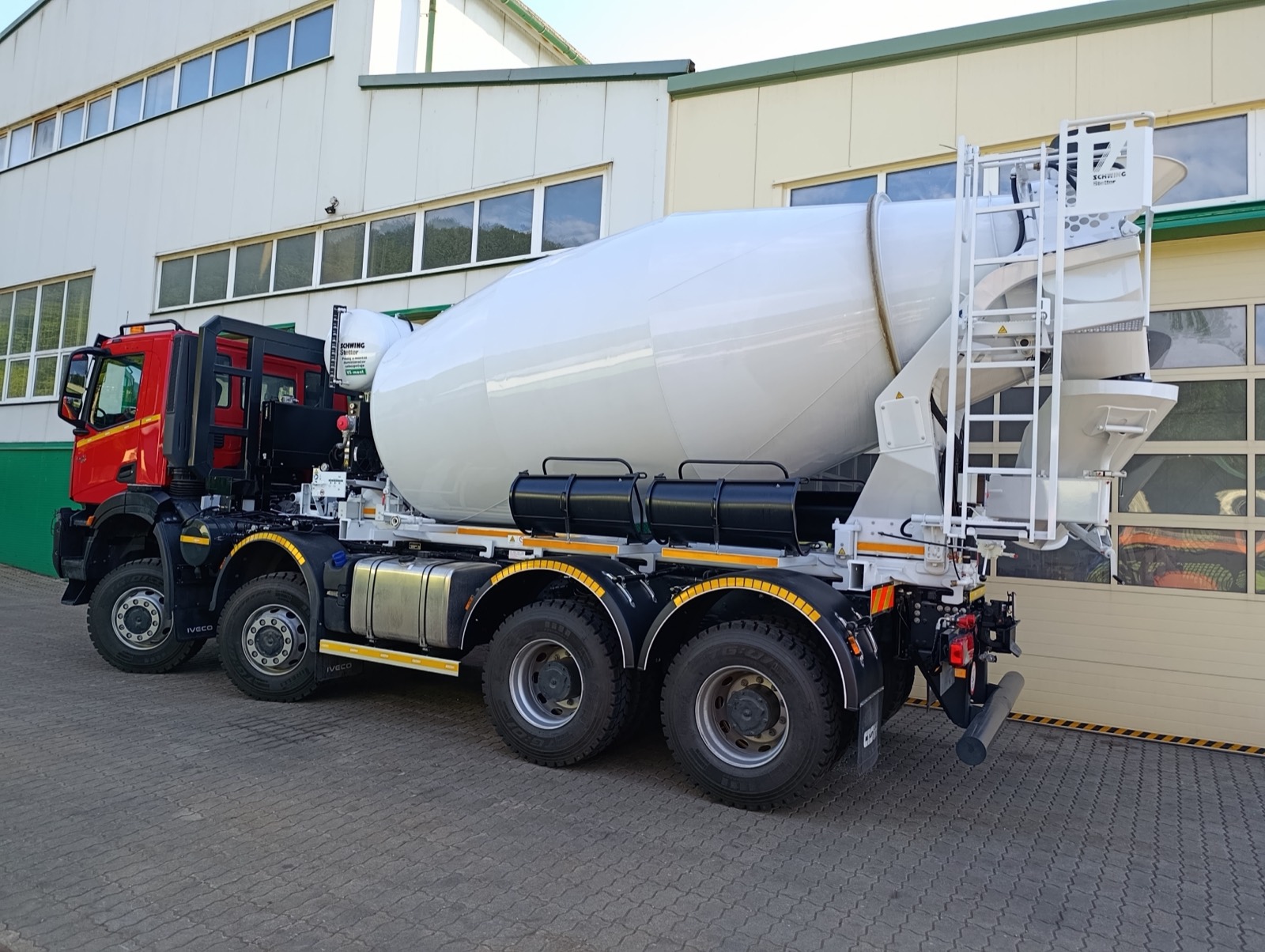

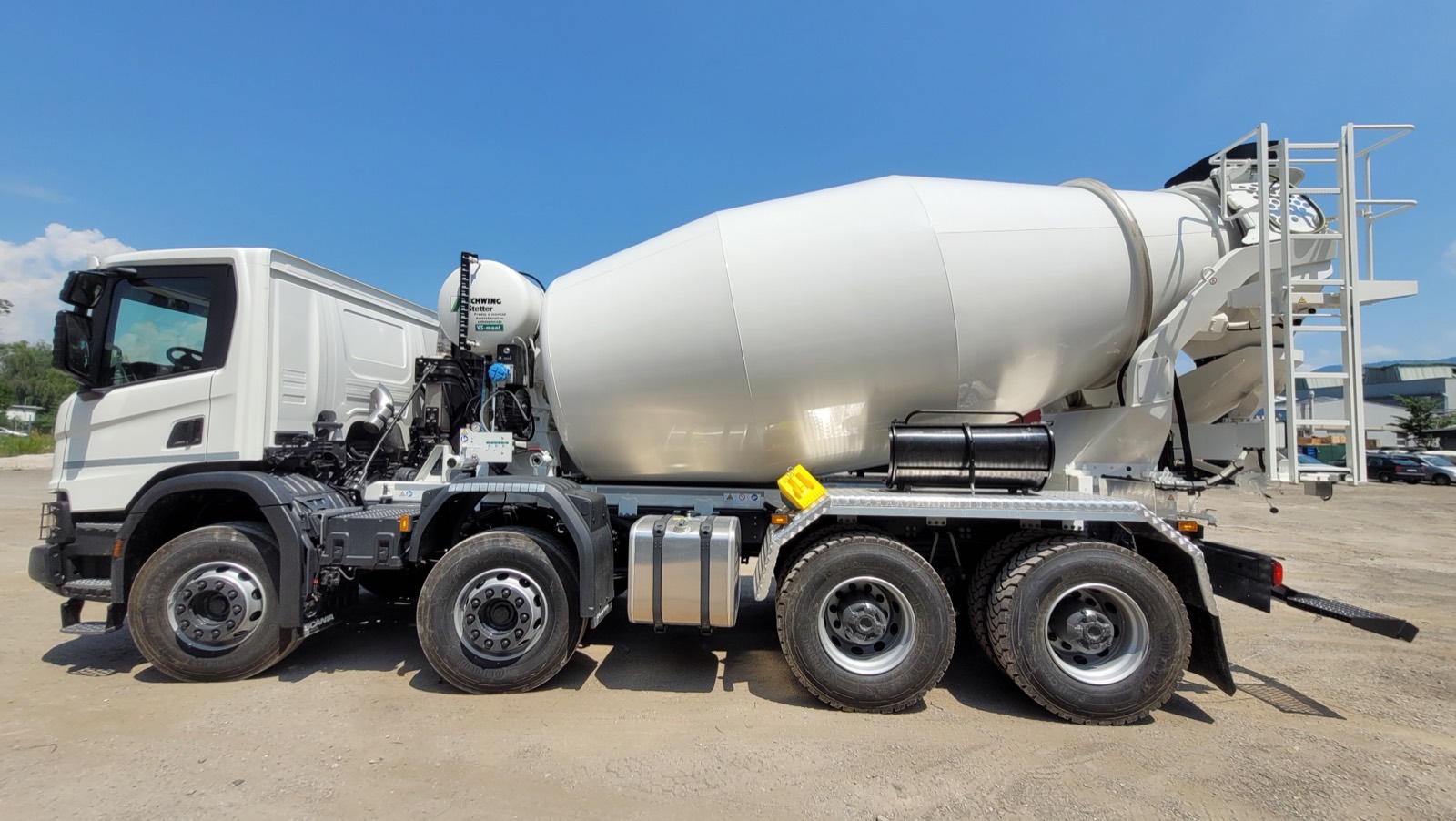

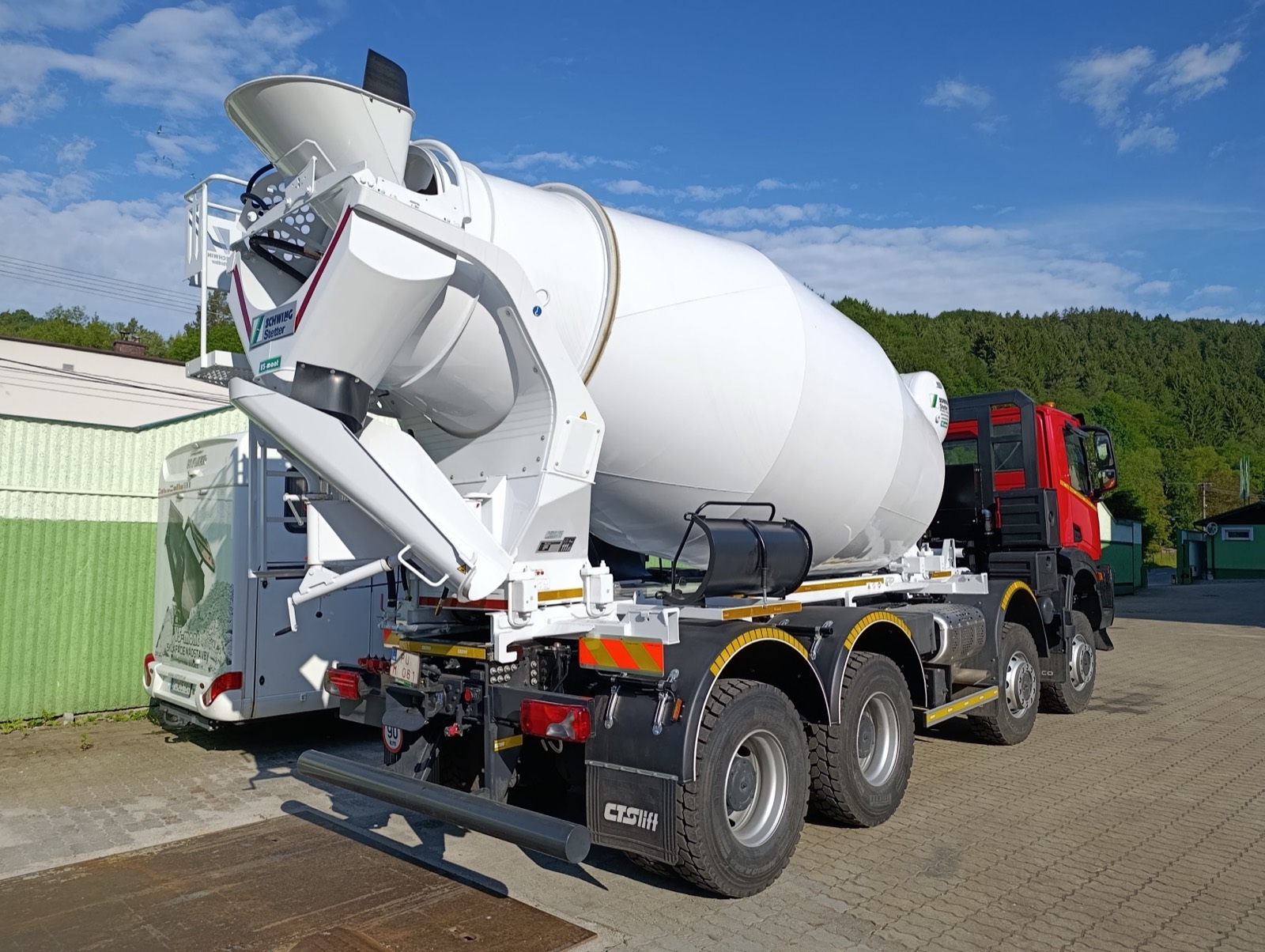

Stetter auto mixerTruck mixer · 4-axle
Stetter auto mixer — drone viewTruck mixer · 4-axle

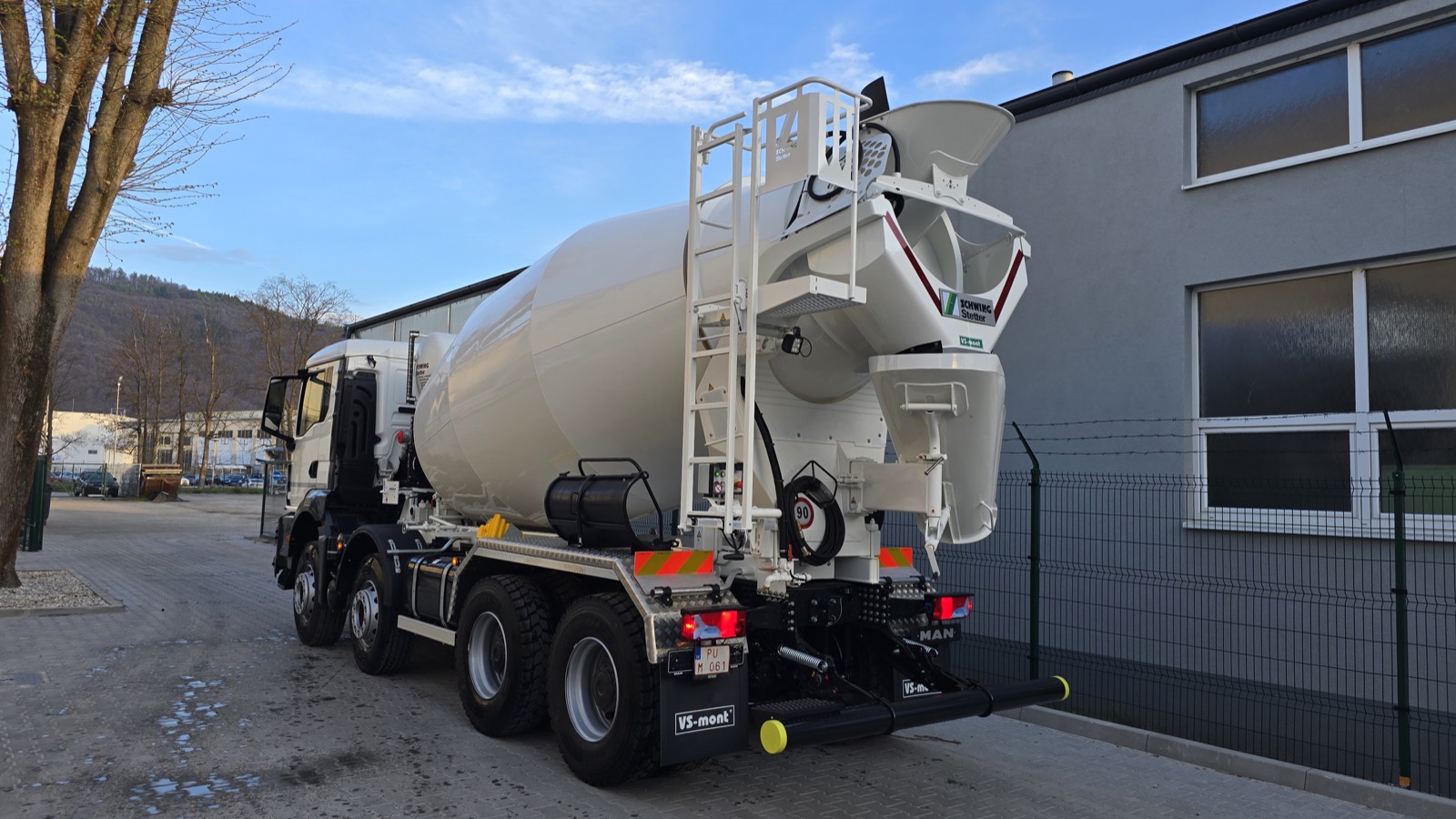

Stetter auto mixerTruck mixer · 4-axle
Stetter auto mixerTruck mixer · 4-axle

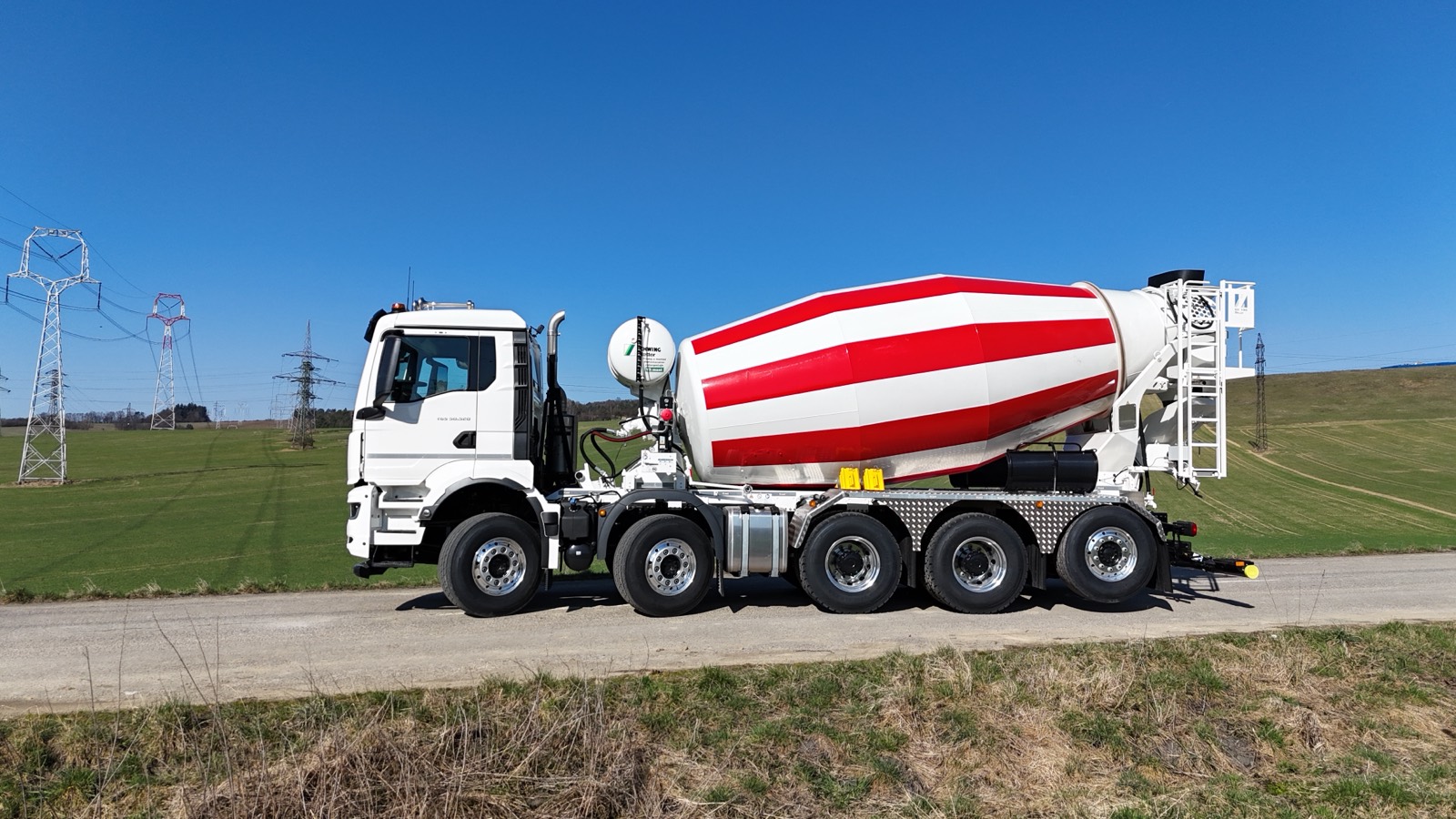

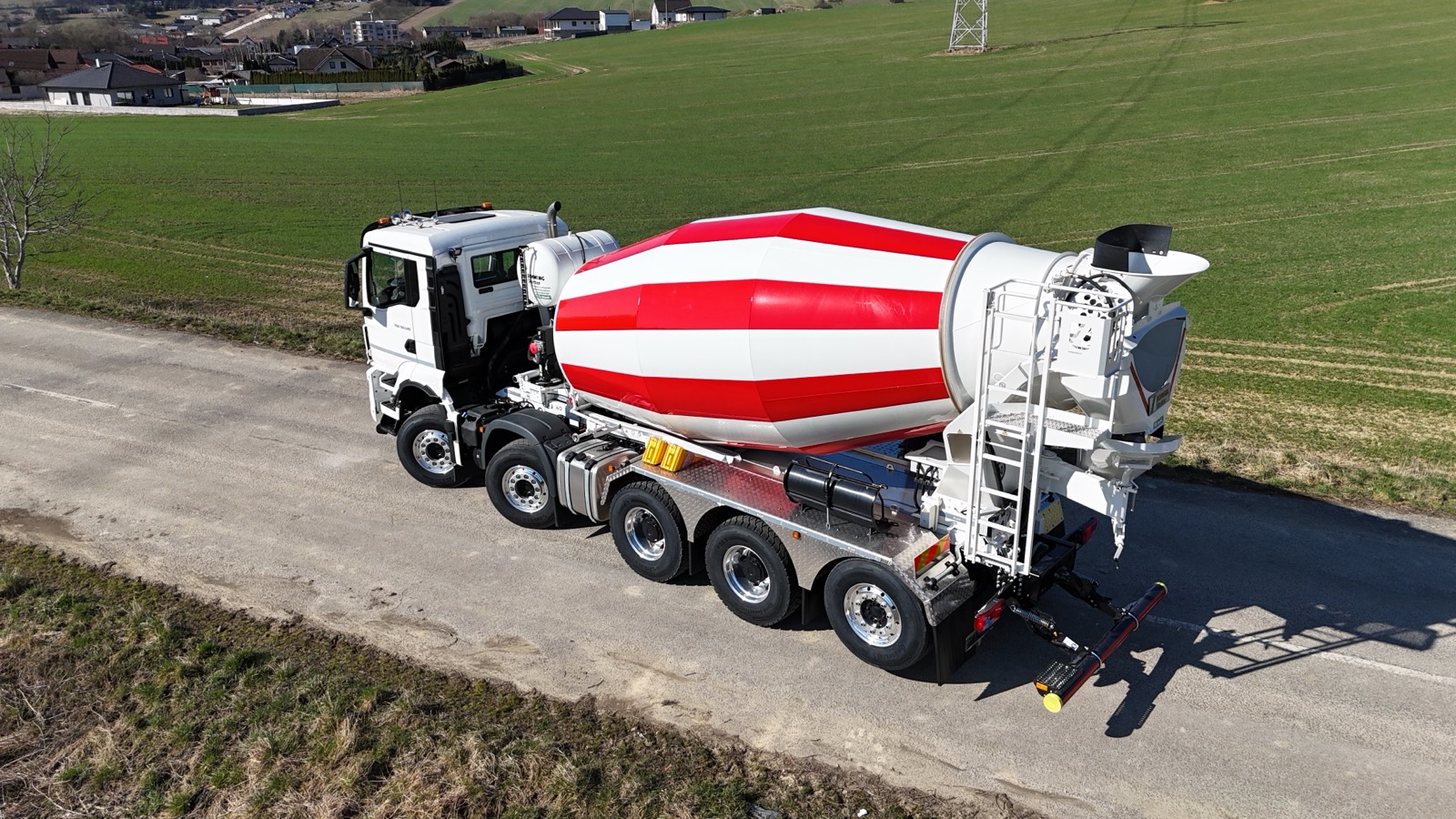

Stetter truck mixer on 5-axle chassis — droneTruck mixer · 5-axle
Stetter truck mixer on 5-axle chassis — droneTruck mixer · 5-axle

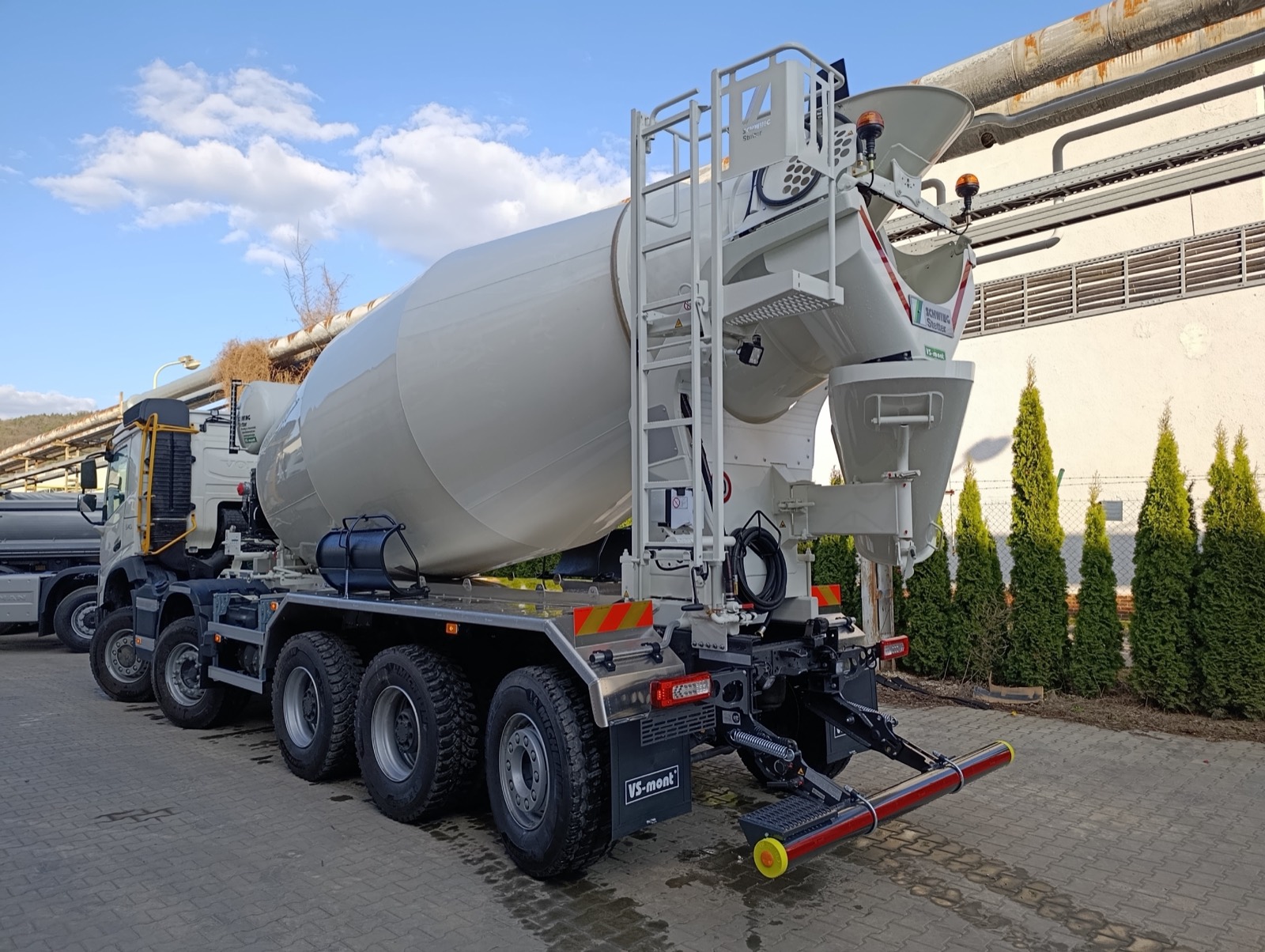

Stetter truck mixer on 5-axle chassisTruck mixer · 5-axle
Stetter auto mixerTruck mixer · 4-axle

Accessories

Optional accessories for Stetter mixers

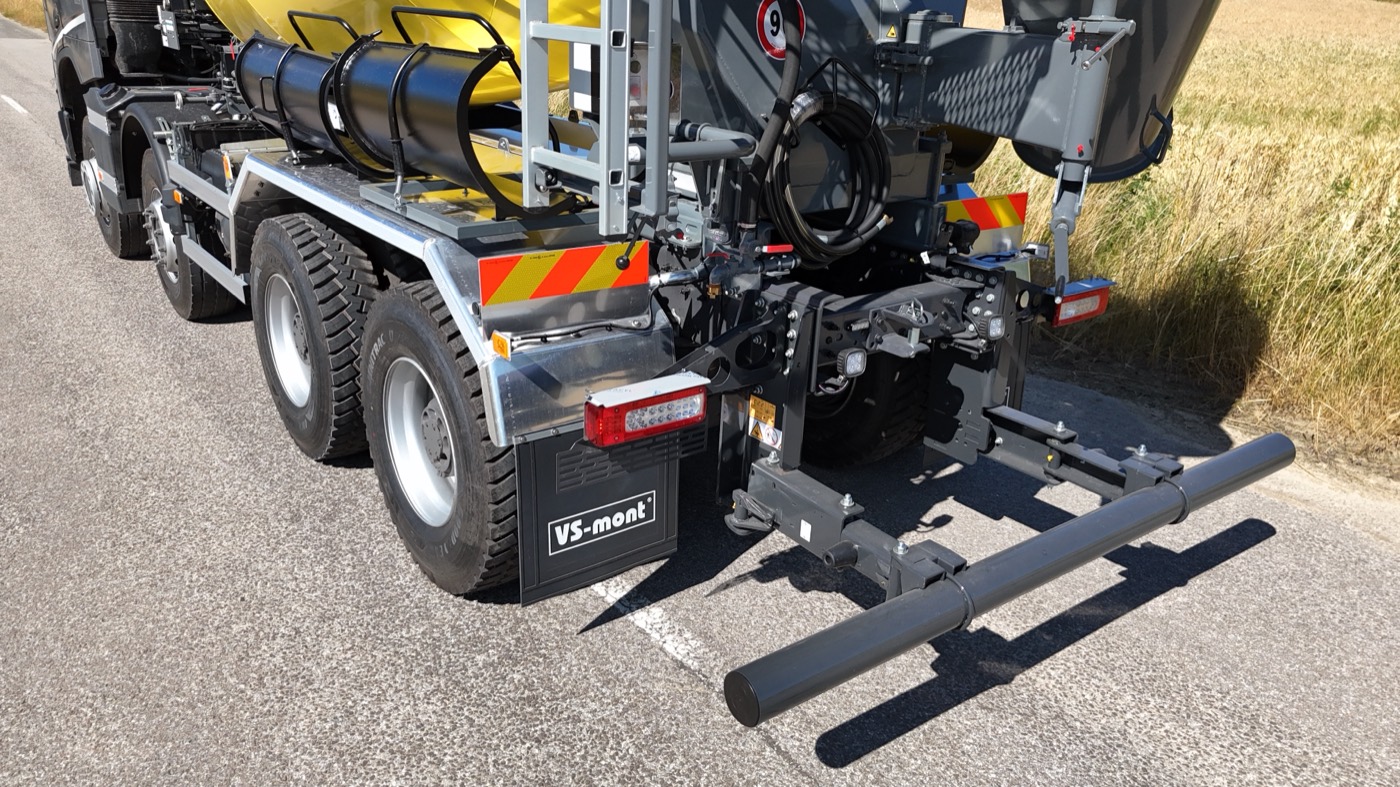

Rear barrierRear barrier

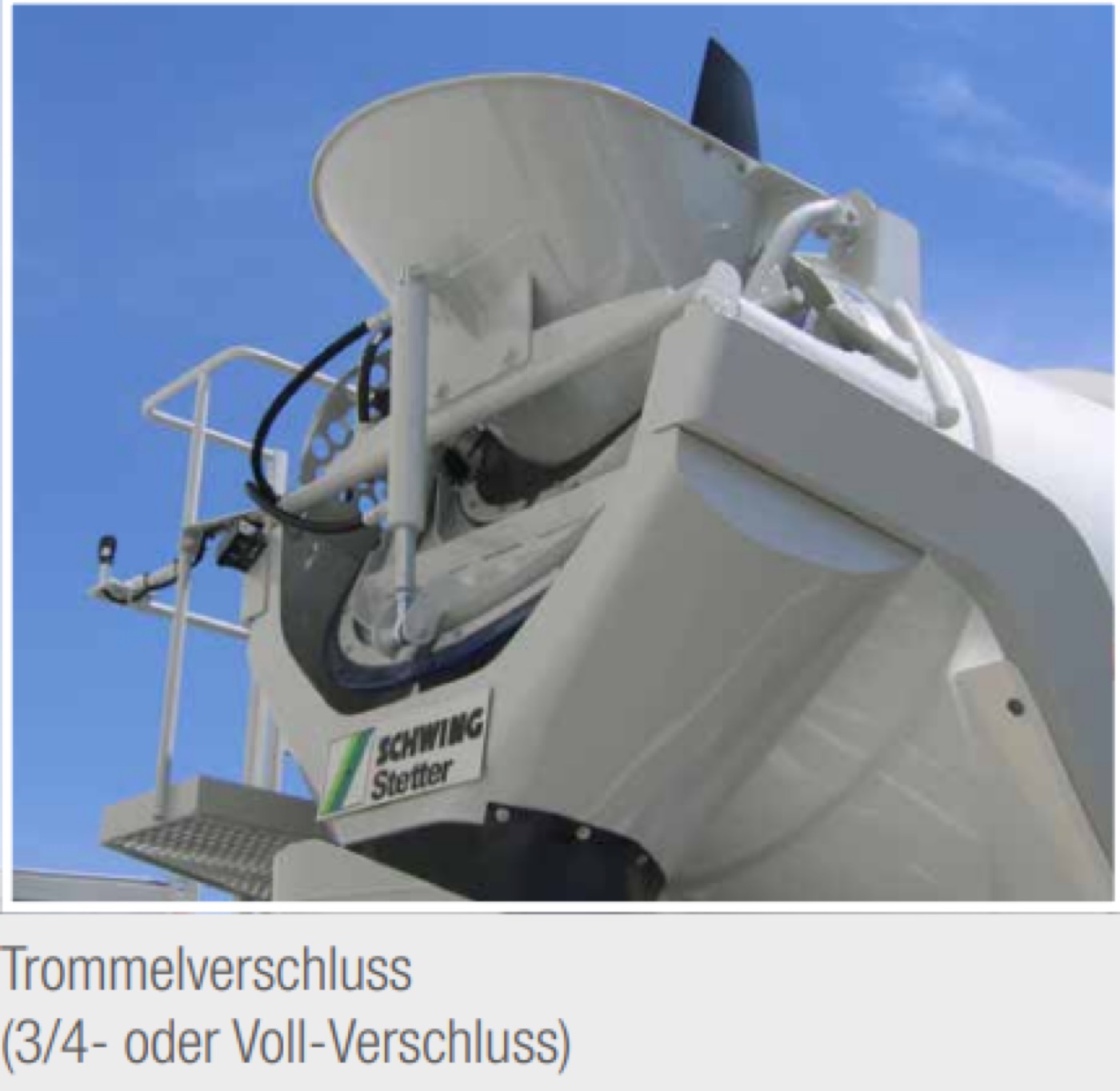

Full drum closure with hydraulic controlFull drum closure with hydraulic control

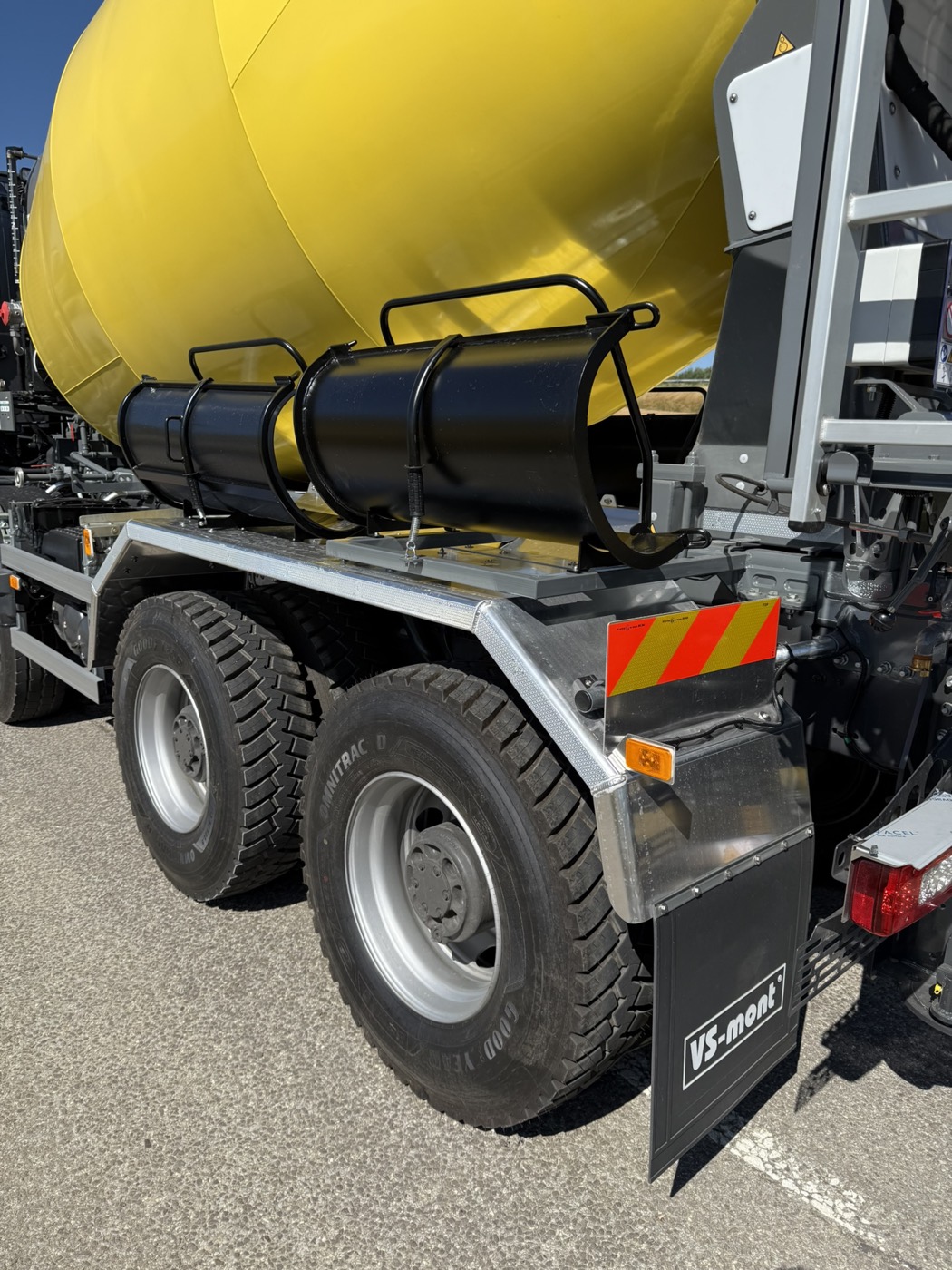

Extension channelExtension channel

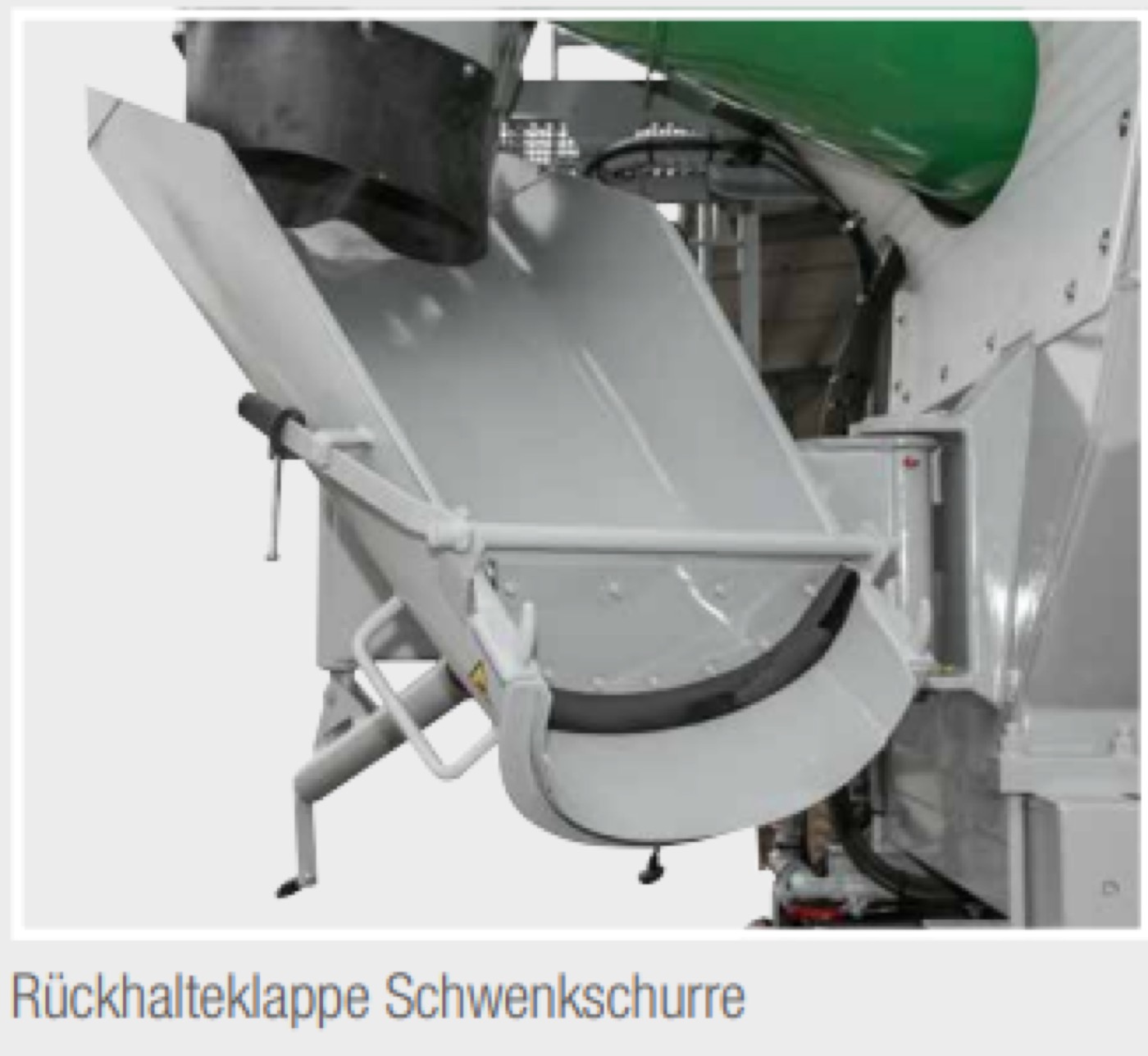

Non-return valve to the trough with manual controlNon-return valve to the trough (manual control)

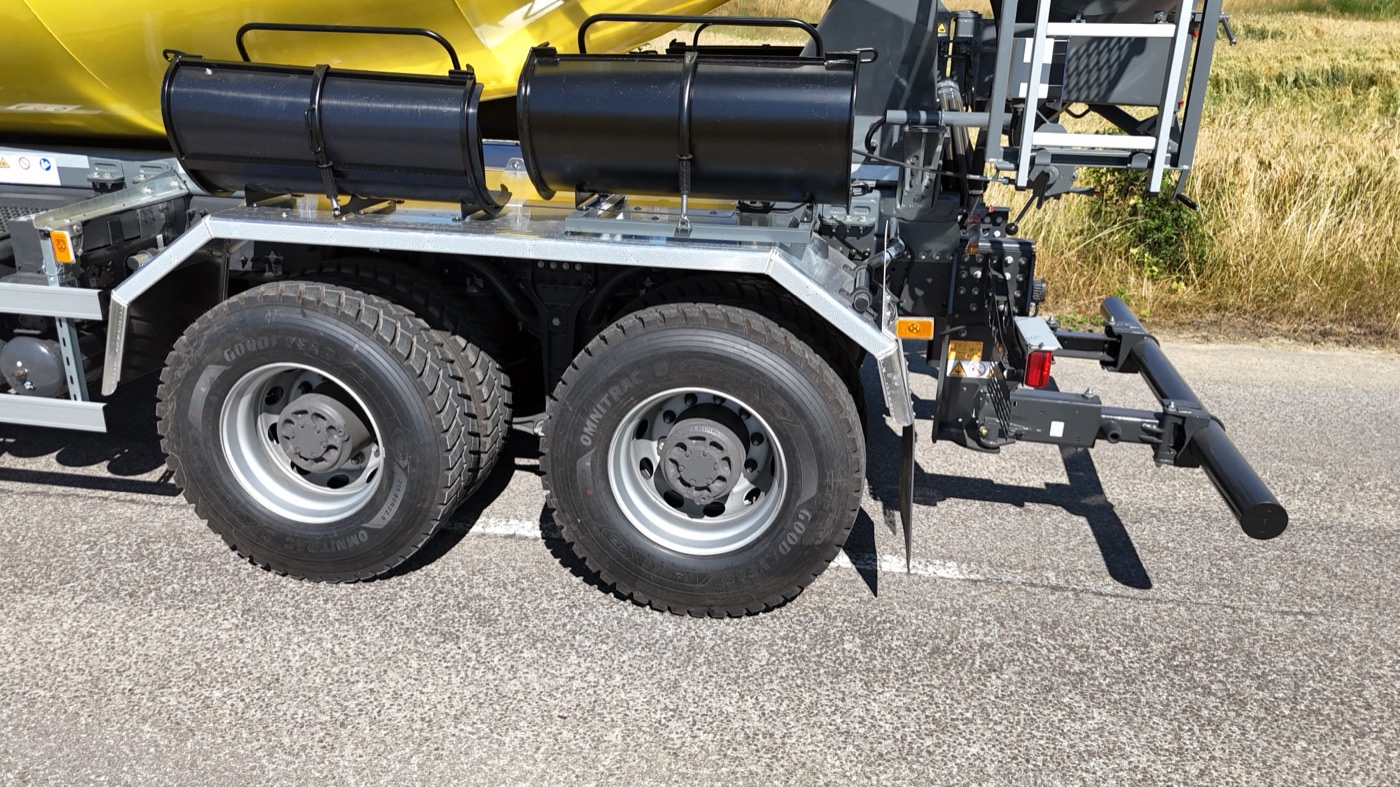

Rear aluminum mudguardsRear aluminum mudguards
