VSTP18
VSTP18

Tandem trailer

Compact tandem trailer with a gross weight of 18 tonnes. Excellent manoeuvrability and versatile use for medium-sized loads.

VSTP18

Tandem trailer

Compact tandem trailer with a gross weight of 18 tonnes. Excellent manoeuvrability and versatile use for medium-sized loads.

18 tonnes gross weight
Tandem axle
Compact size

Product description

The VSTP18 tandem trailer with a gross weight of 18,000 kg and a tare weight from 4,200 kg. Air suspension with automatic dump valves. EBS+ 2S/2M WABCO/HALDEX brake system with RSS (Roll Stability Support).

BPW/SAF axles 2×9,000 kg with 420×180 mm drum brakes. Tyres 385/65 R22.5. Overall length 7,150 mm. Tipper versions with a volume of 10-25 m³, materials HB450 (wear-resistant steel), S700 MC high-strength steel, ST 52.3.

Technical parameters

Weights and dimensions

Gross load18 000 kg
Unladen weightfrom 4 200 kg
Trailer length7 150 mm (including drawbar)
Drawbar (eye)Ø 40 mm (50 mm)

Chassis and brakes

AxlesBPW / SAF 9 000 kg
Brake420×180 mm drum brake
Slack adjustersSelf-adjusting WABCO / HALDEX
Parking brakeAutomatic, spring brake cylinders
Braking systemEBS+ 2S/2M + RSS

Suspension and tyres

SuspensionAir suspension (air bellows dump valve)
Tyres385/65 R22,5
WheelsSteel
Electrical systemsASPÖCK, screwless connections (DIN)

Body and hydraulics

S3 tipper — volume10 – 25 m³
Body materialHB450 (HARDOX), DOMEX S700 MC, ST 52.3, Al
HydraulicsHYVA / PENTA, single-hose, 16 MPa
Flatbed versionInternal length 5 200 mm

Advantages of the VSTP18 model

Compactness

A shorter length than three-axle trailers ensures better manoeuvrability.

For urban use

Ideal for urban environments and narrow spaces thanks to its compact dimensions.

Lower costs

A simpler chassis means lower maintenance and operating costs.

Versatility

Can be fitted with different types of bodies to suit current needs.

Good stability

The tandem axle ensures good stability and even weight distribution.

Quality components

Use of proven components from BPW, SAF and other renowned manufacturers.

Downloads

Design examples

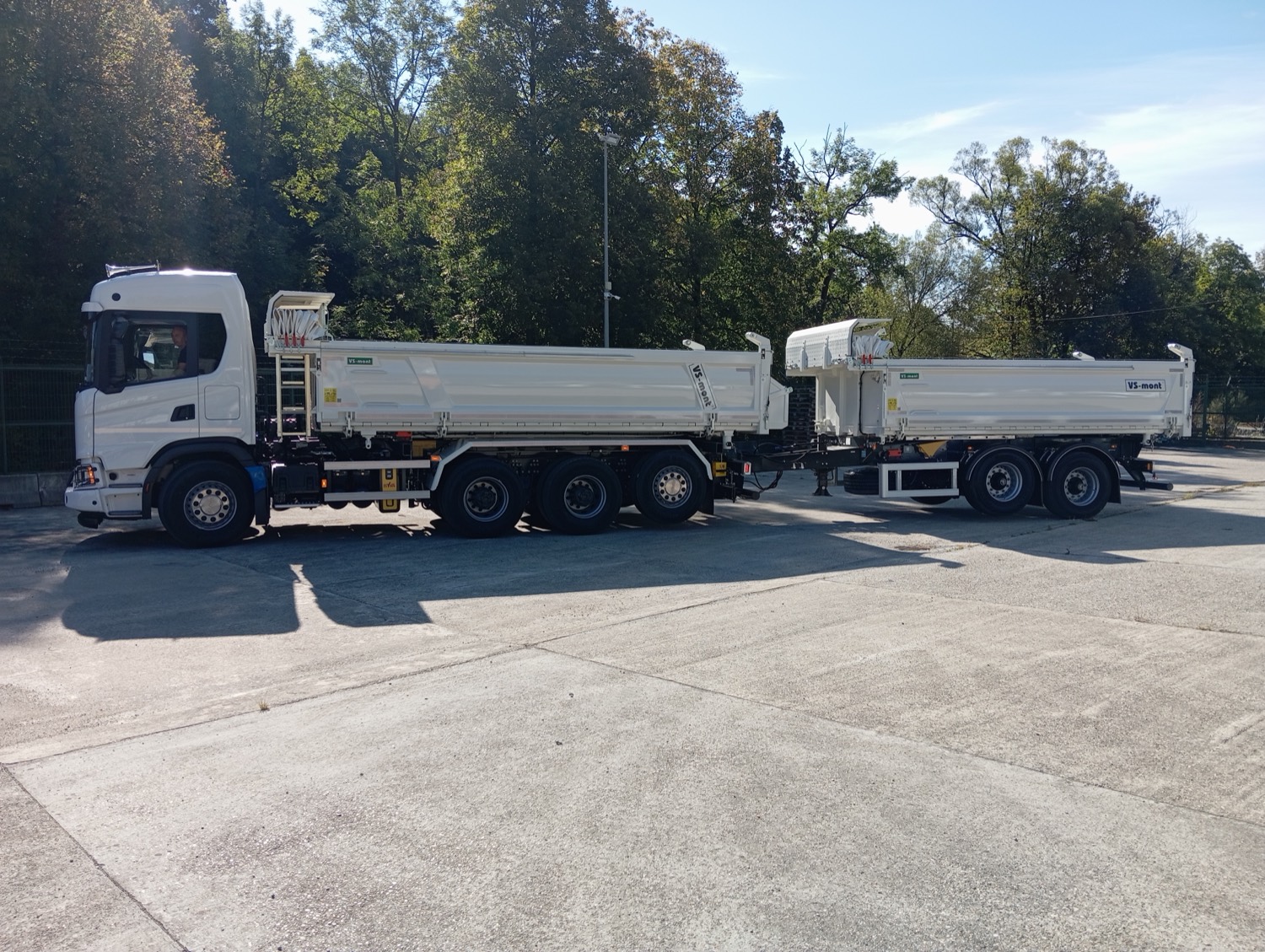

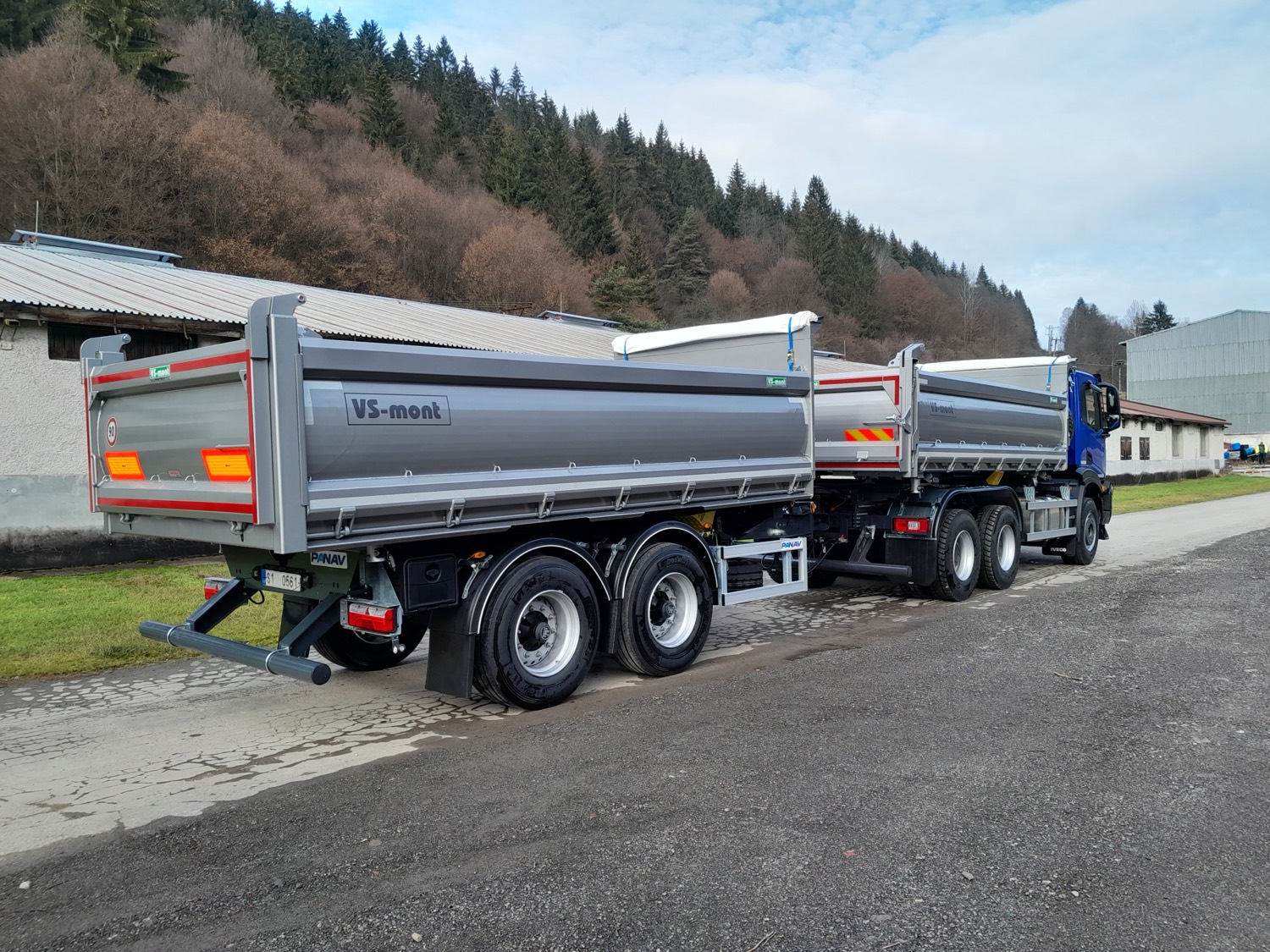

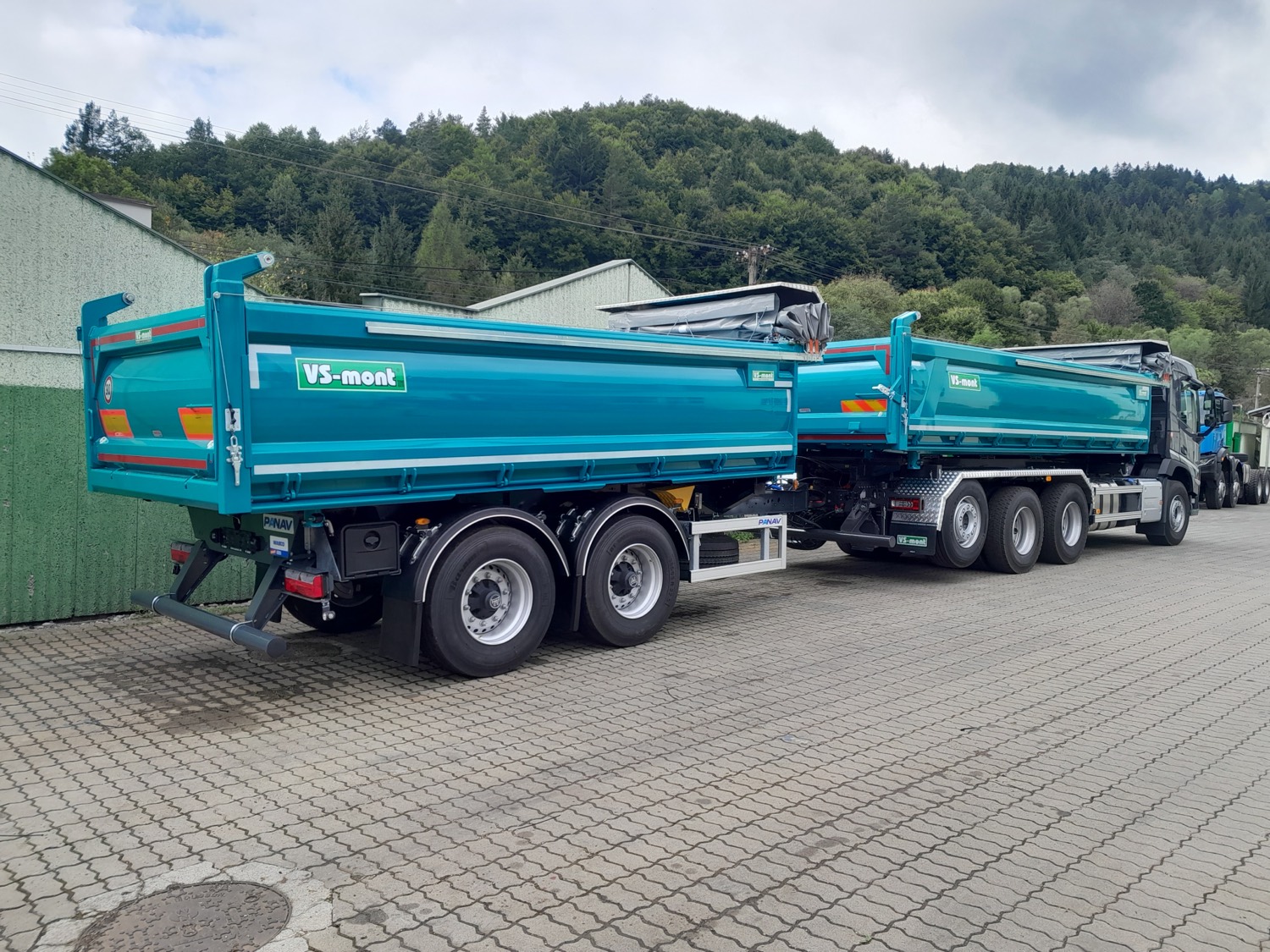

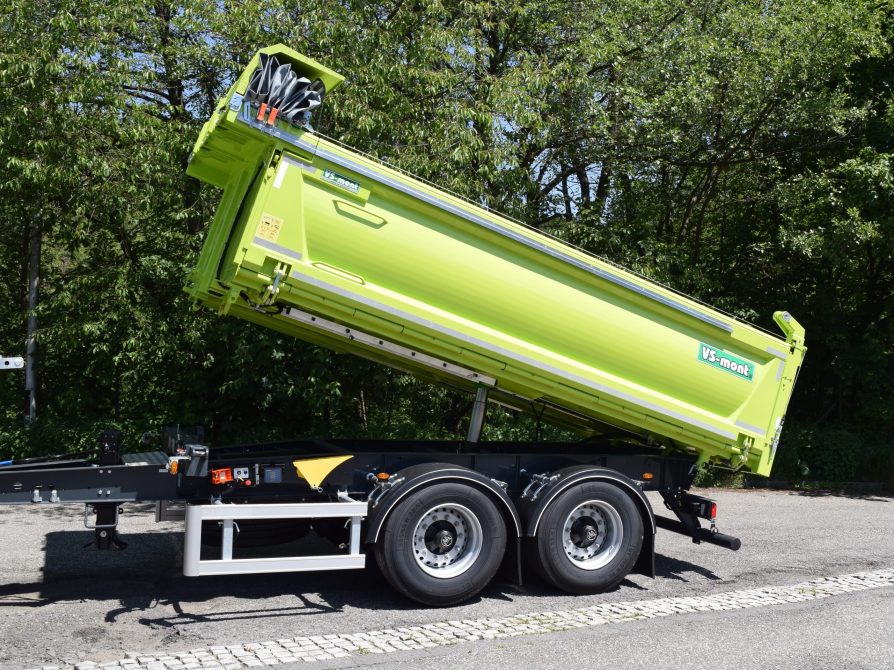

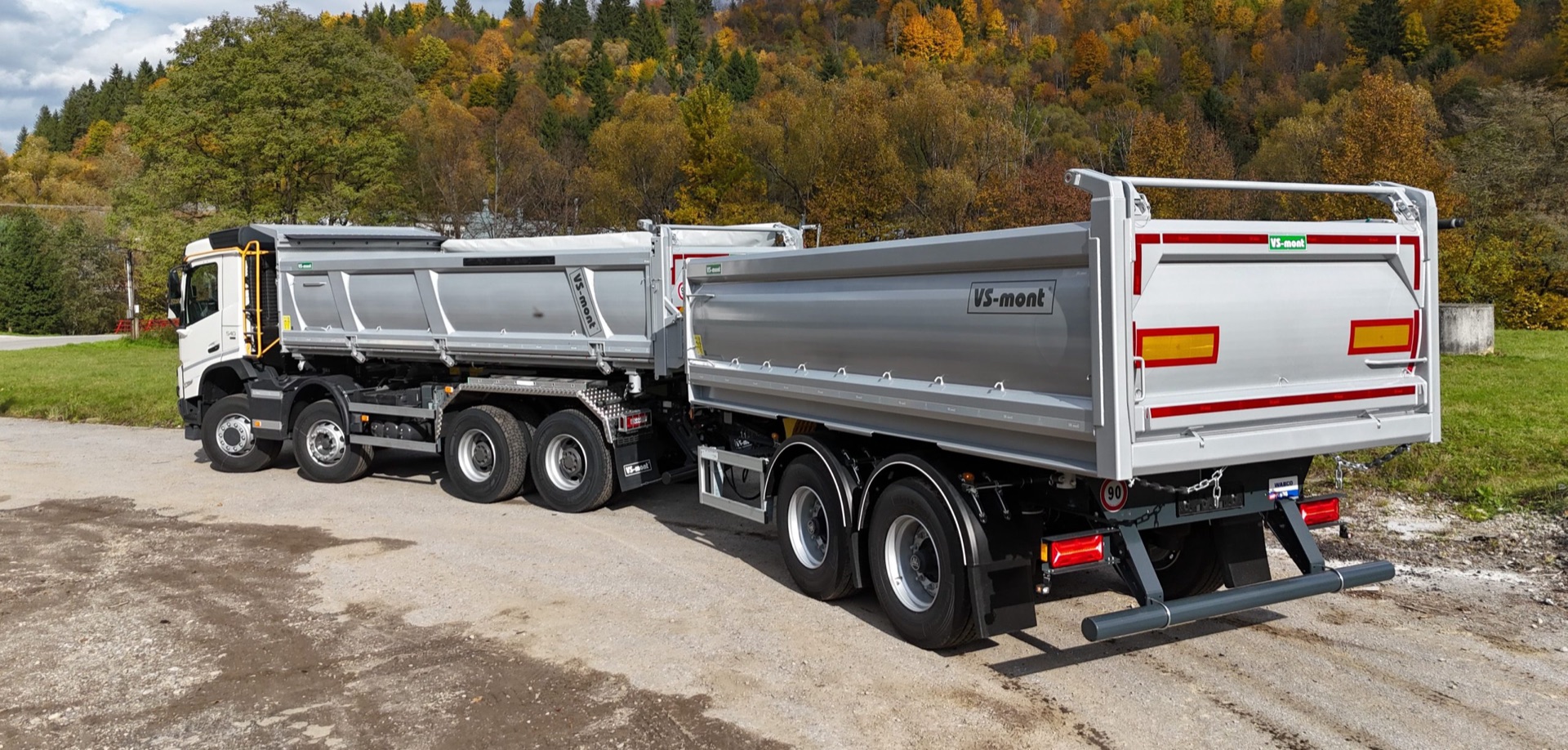

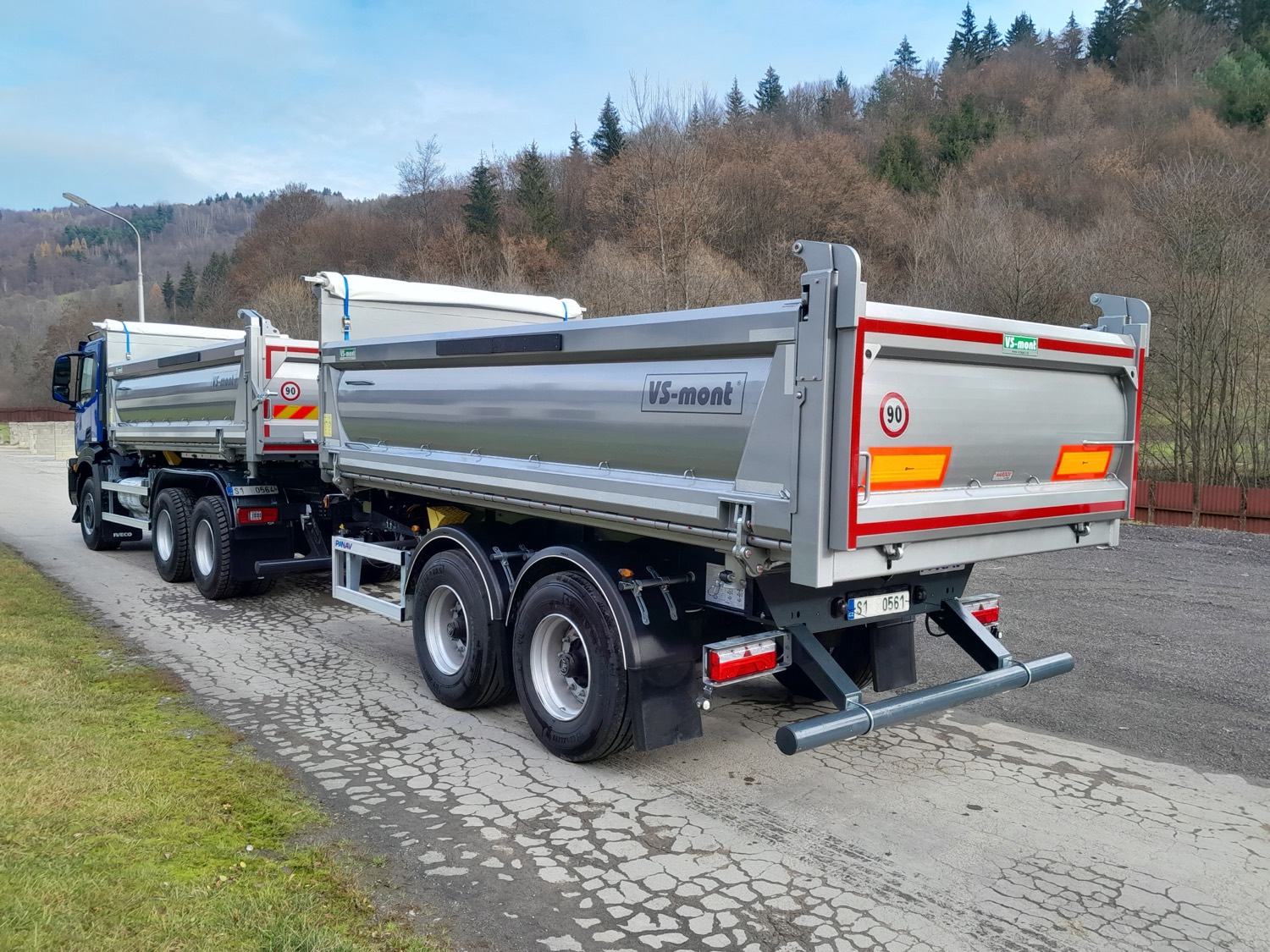

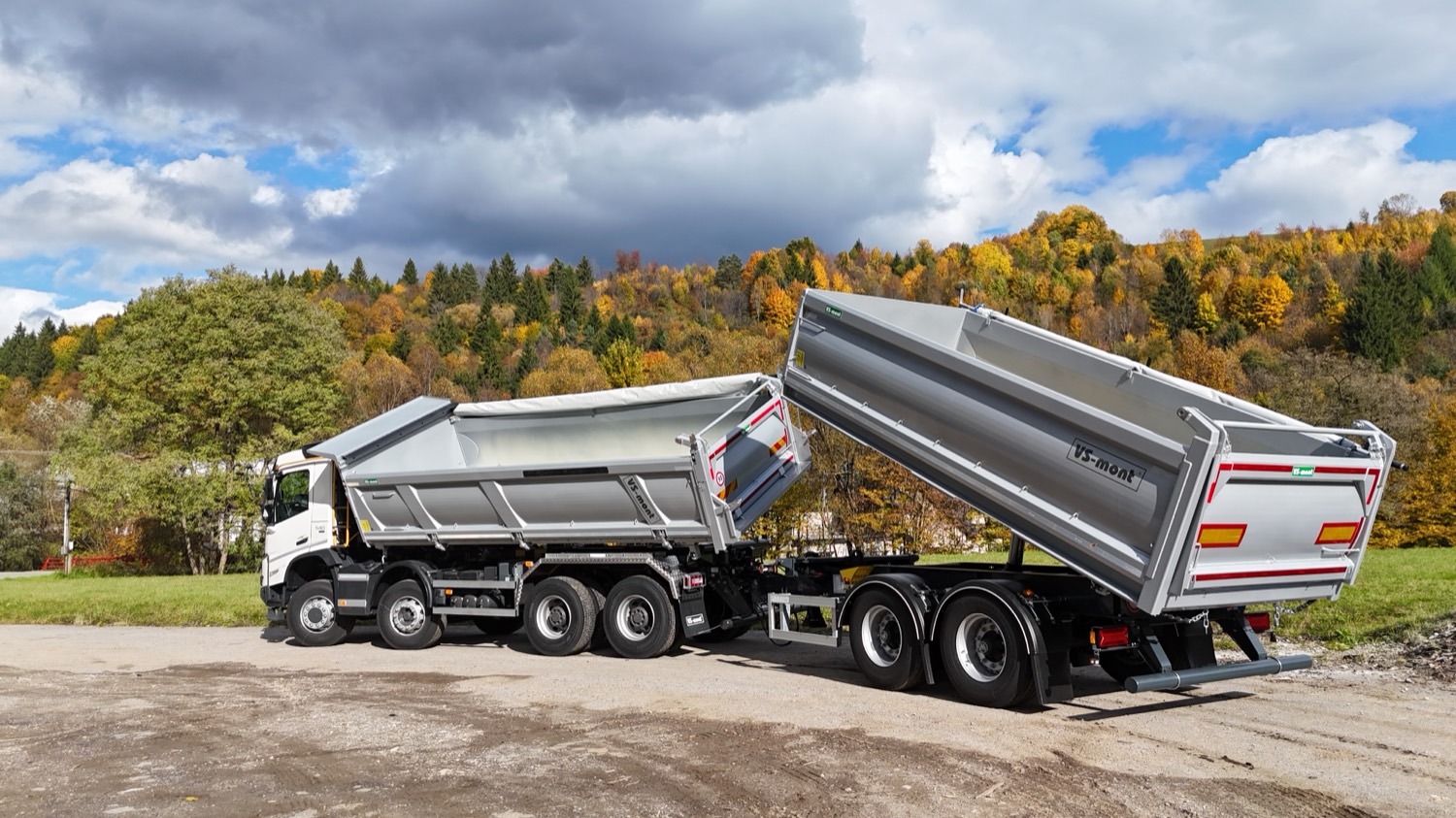

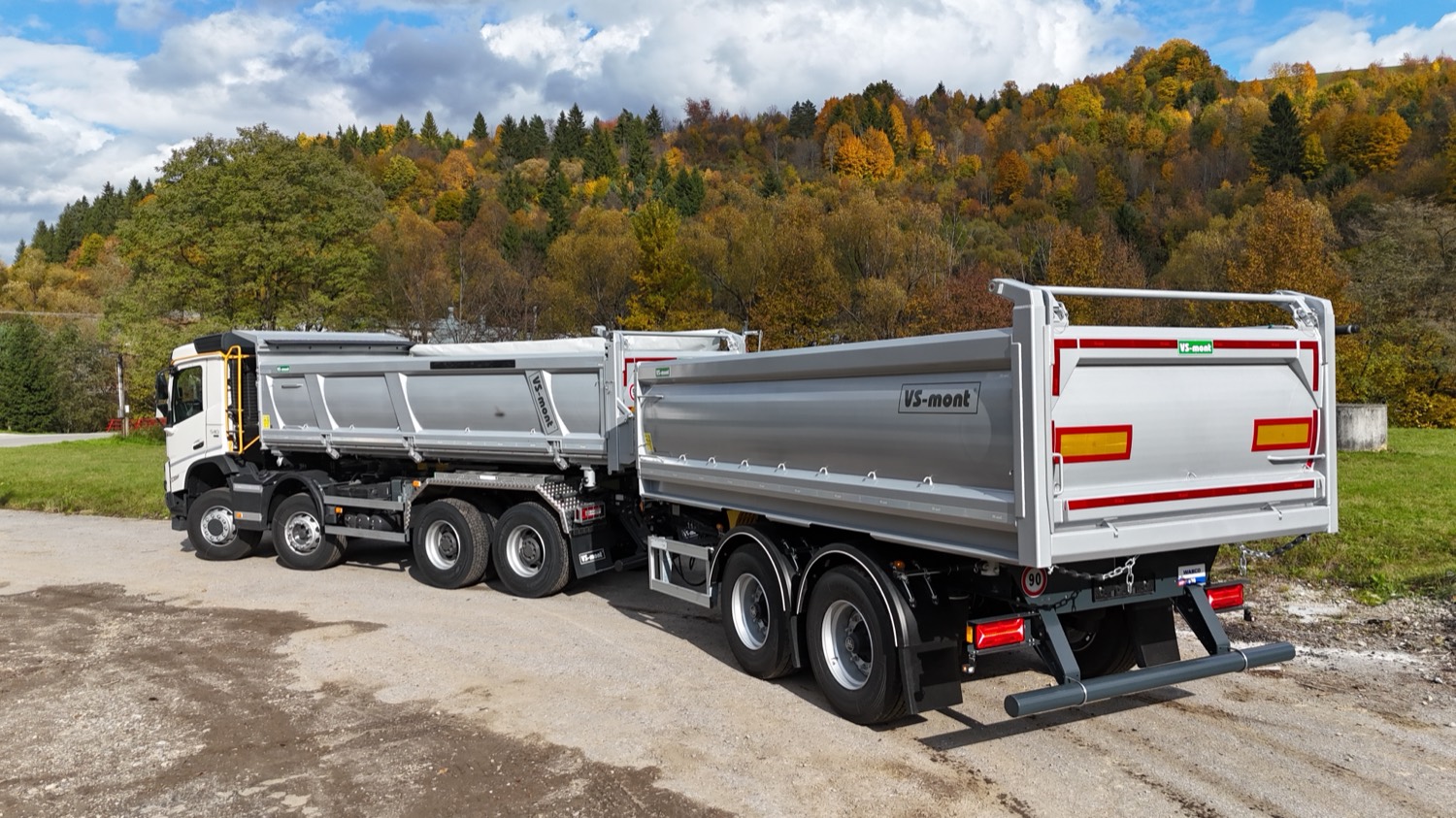

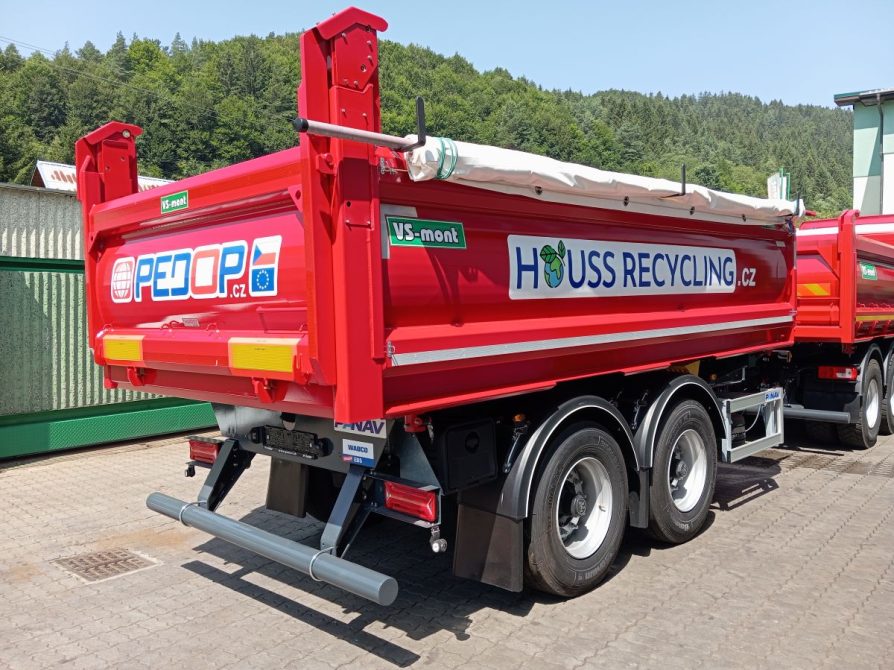

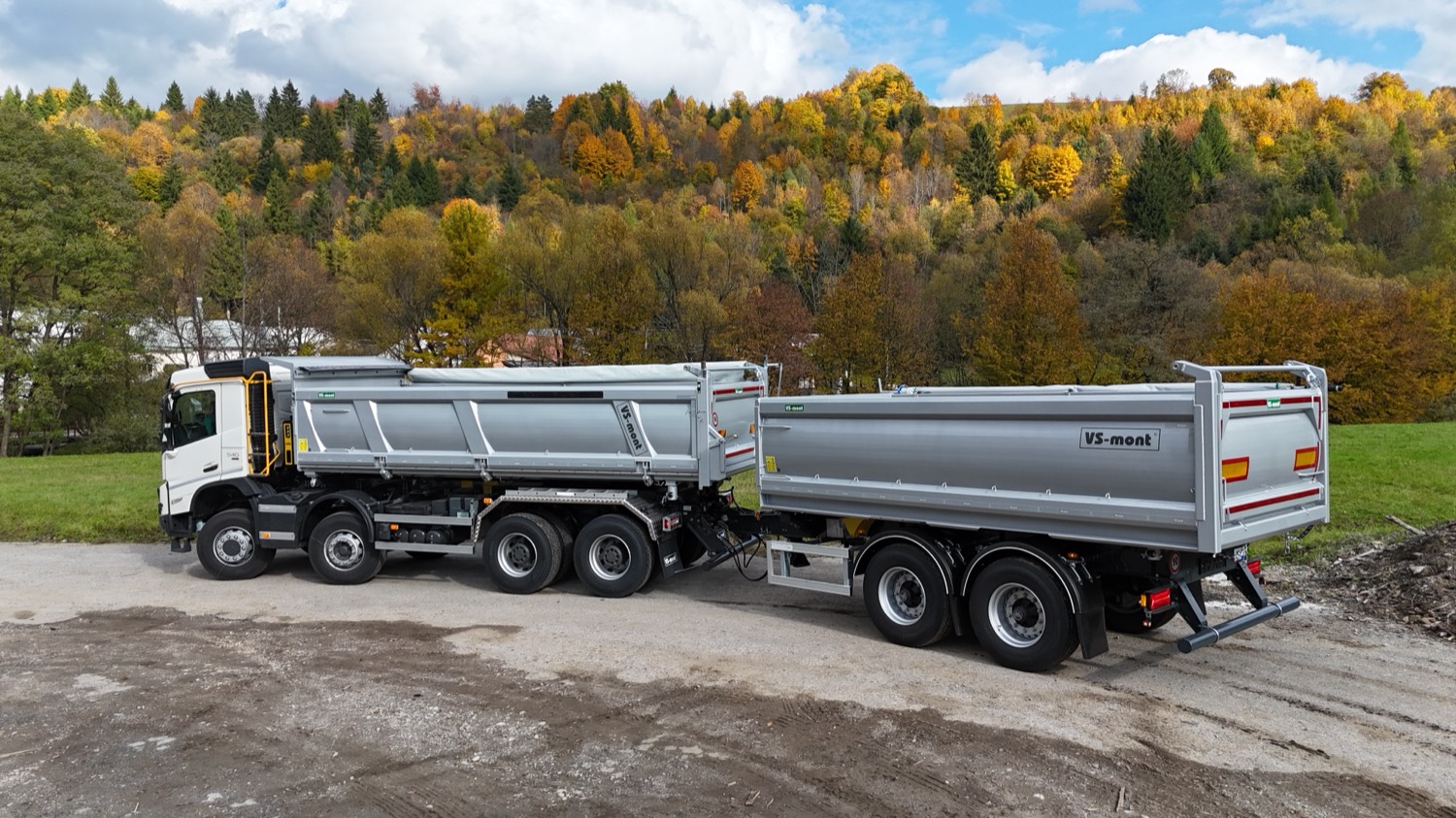

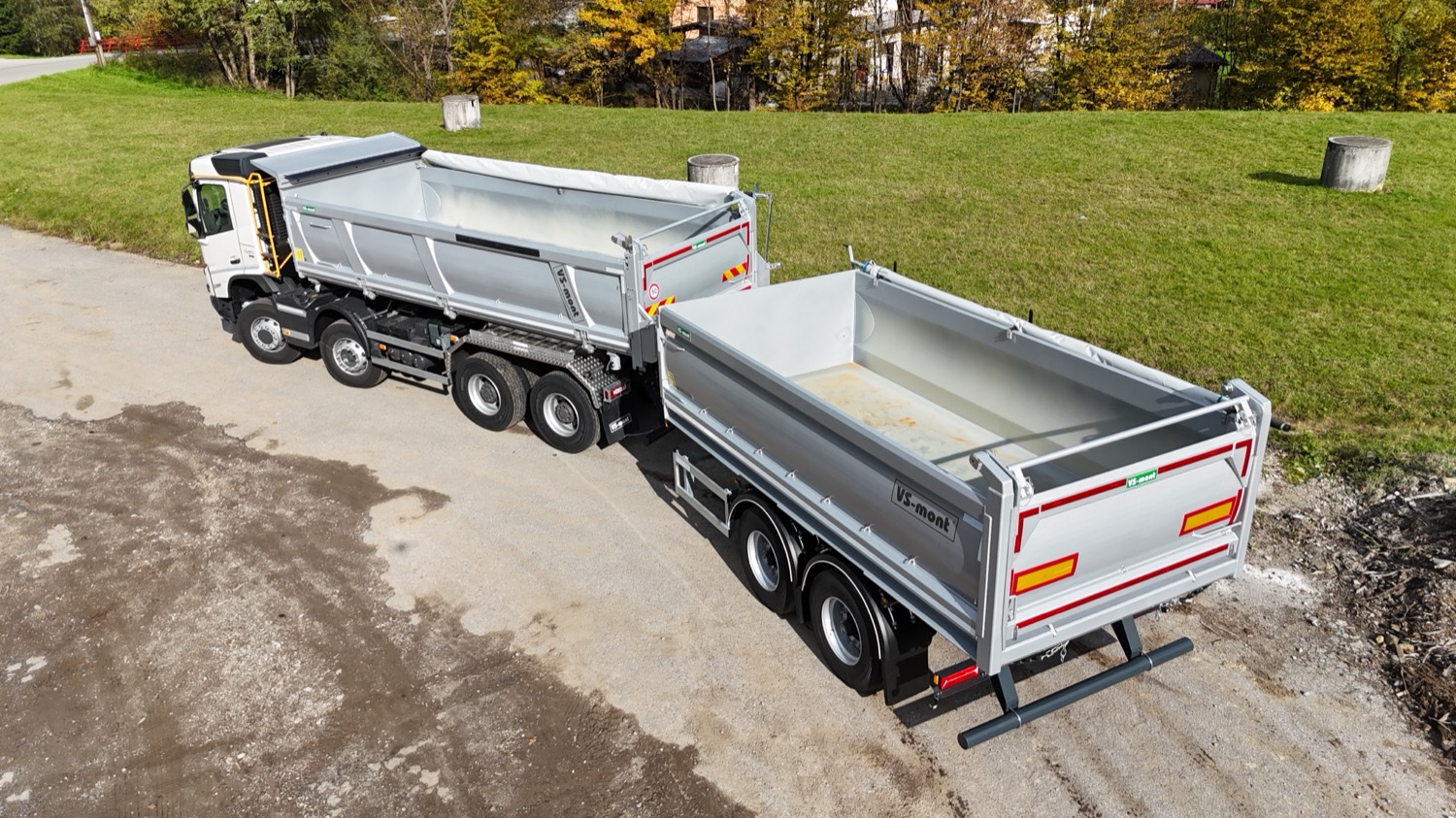

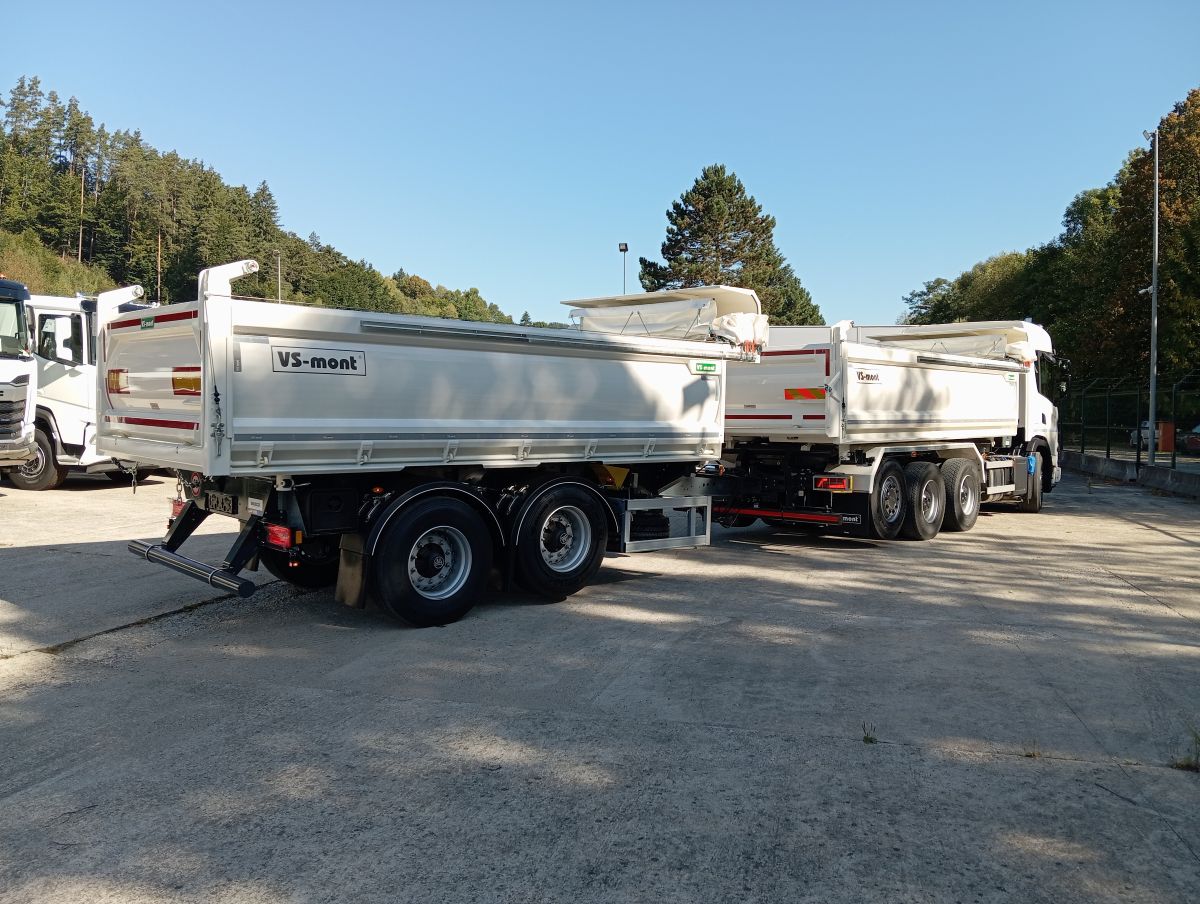

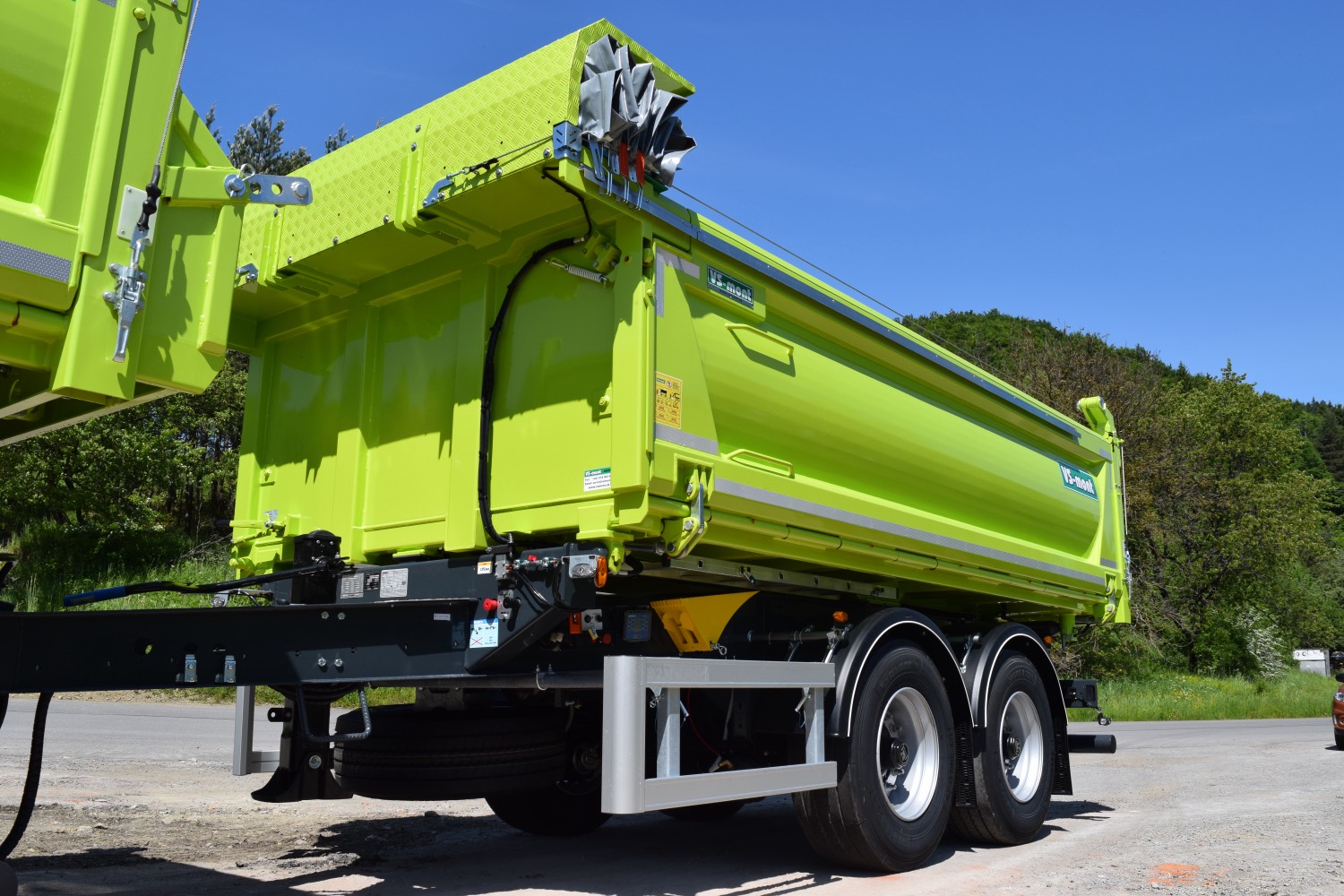

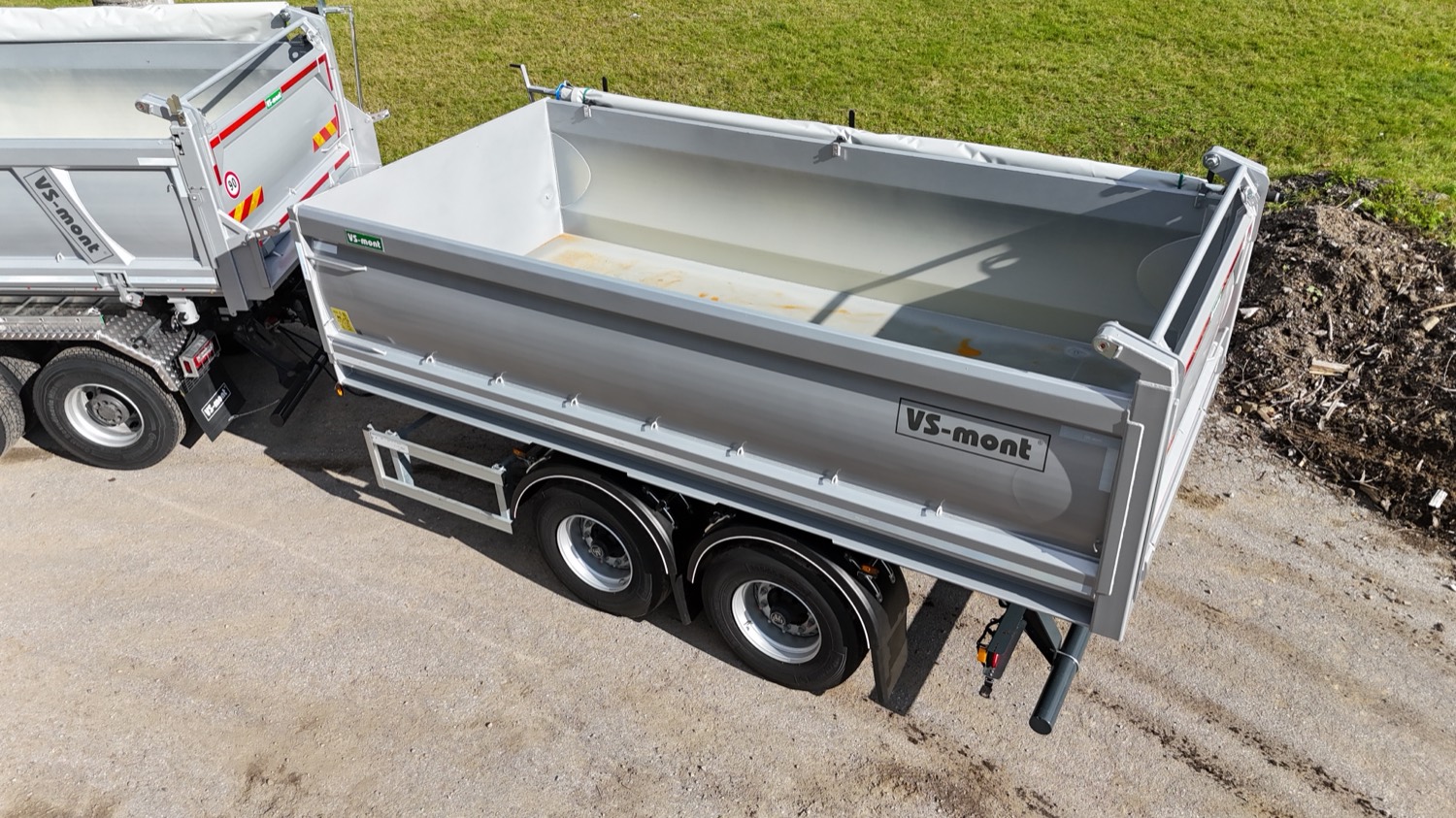

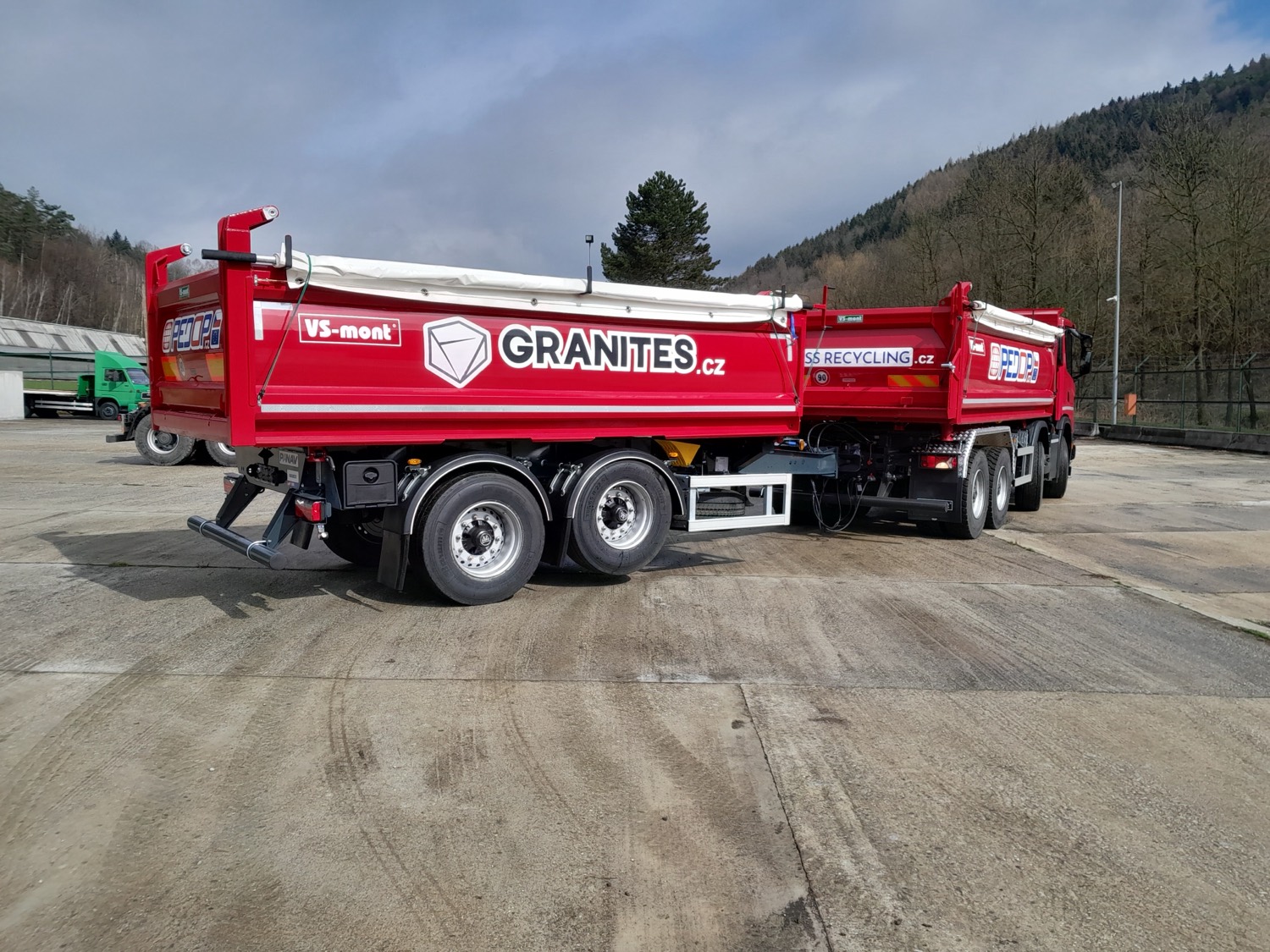

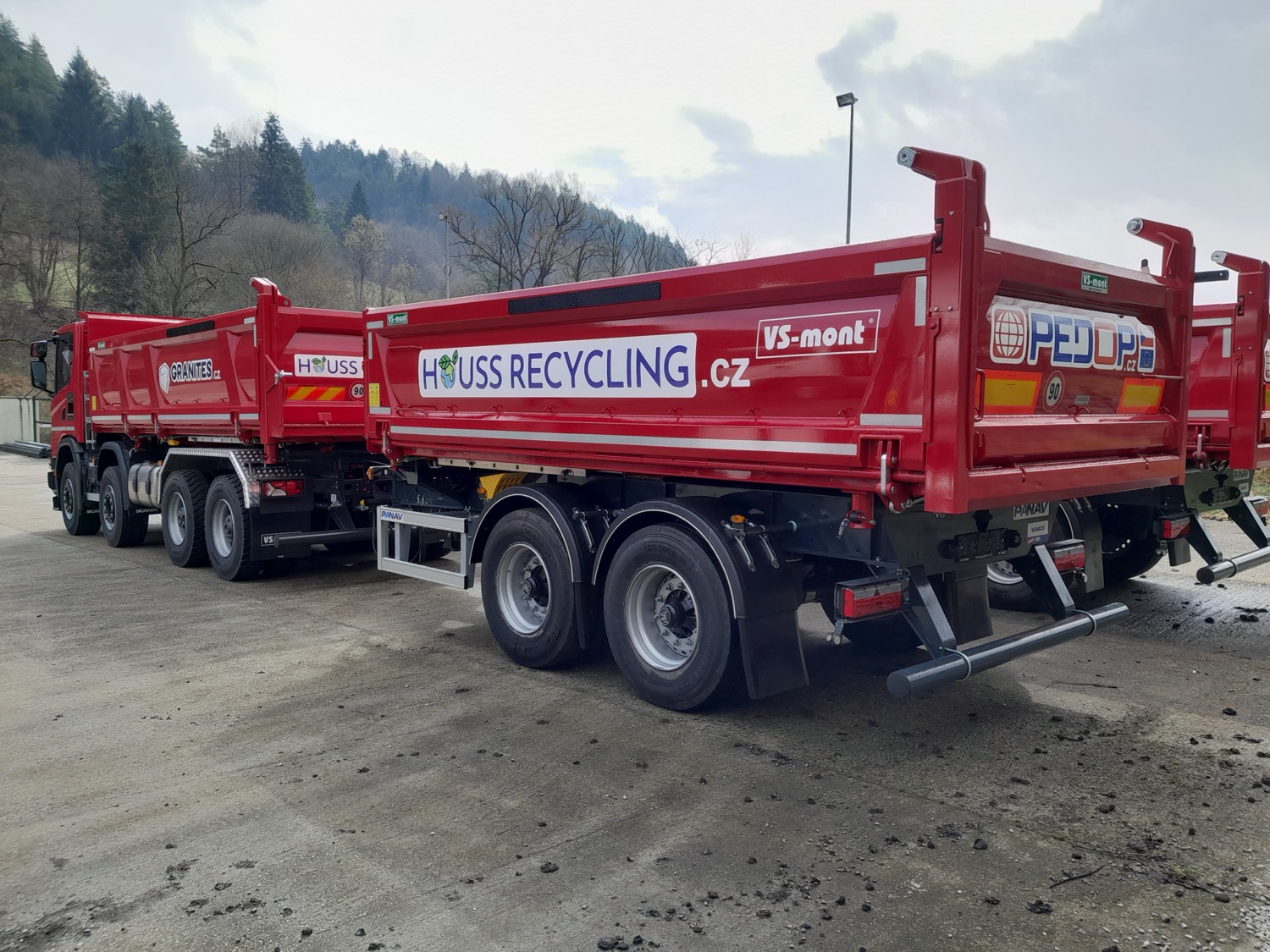

Installations of the VSTP18 tandem trailer

VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
VSTP18 tandem trailerVSTP18 tandem trailer
